Part number
3UF7114-1BA01-0
Model no
IUM
$428.92 On request Dispatch — · From TürkiyeGet a Quote
3UF7

Siemens 3UF7114-1BA01-0 3UF7 63...630A 3P 690V Motor Controller

Rated current
630 A
Rated operational voltage
690 V AC
Poles
3P
EAN
4047621025728
Description

About the IUM

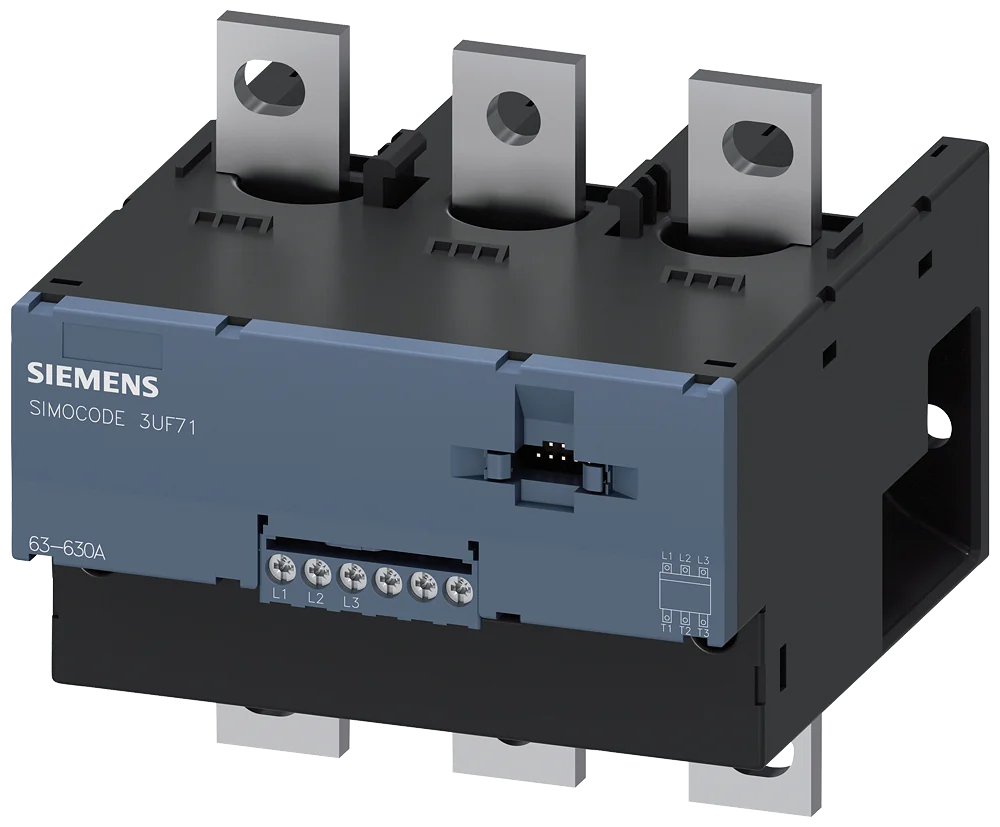

The Siemens 3UF7114-1BA01-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Current/voltage measuring module V2; Set current 63...630 A, Voltage measurement up to 690 V, Overall width 145 mm, Busbar connection basic unit required pro V PB, pro V MR, pro V PN or pro V EIP. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • IEC 60947-1

Applications & Use Cases

The Siemens 3UF7114-1BA01-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

109 values · Last verified 31 Oct 2026

General 3

product brand name SIMOCODE
product designation Current/voltage measuring module
product type designation IUM

General technical data 21

measuring procedure RMS value measurement
size of the circuit-breaker S10, S12
product function: current measurement Yes
product function: voltage measurement Yes
product function: active power measurement Yes
product function: energy measurement Yes
product function: frequency measurement Yes
measuring procedure for current measurement TRMS
current measuring range extension with external current transformers No
measuring procedure for voltage measurement TRMS
measurable supply voltage between the line conductors at AC maximum rated value 690 V
product component: input for thermistor connection No
consumed active power 0.5 W
insulation voltage: with degree of pollution 3 at AC rated value 690 V
insulation voltage: for wires of main circuit according to IEC 60947-1 rated value 6 kV
surge voltage resistance rated value 6 000 V
shock resistance according to IEC 60068-2-27 15 g / 11 ms; with basic unit snapped on
vibration resistance 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g; with basic unit snapped on: 1 g
reference code according to IEC 81346-2 F
Substance Prohibitance (day/month/year) 05/28/2009
SVHC substance name Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1

Electromagnetic compatibility 6

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m
Show all 109 specifications ↓ Show less ↑79 more values in Identification, Inputs/ Outputs, Protective and monitoring functions, Precision, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, IEC 61508, ATEX, Galvanic isolation, Main circuit, Control circuit/ Control, Logistics.

Identification 10

Part number 3UF7114-1BA01-0
Type designation IUM
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621025728
ETIM class EC002572
eCl@ss 27370804

Inputs/ Outputs 1

number of outputs as contact-affected switching element 0

Protective and monitoring functions 6

product function: power factor monitoring Yes
product function: ground-fault monitoring Yes
product function: voltage detection Yes
trip class CLASS 5E, 7E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable
product function: current detection Yes
product function: overload protection Yes

Precision 15

measuring precision: of frequency measurement +/- 1.5 %, 47 A ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for current measurement 1 +/- 1.5 %, in range 47 A ... 1260 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C
measuring precision: for current measurement 2 +/- 5%, in range 1260 A ... 5040 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C
measuring precision: for voltage measurement 1 +/- 1.5 %, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C
measuring precision: at cos phi-measurement 1 +/- 1.5 %, 47 A ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: at cos phi-measurement 2 +/- 5%, 1260 A ... 5040 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for active power measurement 1 +/- 5%, 47 A ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for active power measurement 2 +/- 10%, 1260 A ... 5040 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for energy measurement 1 +/- 5%, 47 A ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for energy measurement 2 +/- 10%, 1260 A ... 5040 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for apparent power measurement 1 +/- 3%, 47 A ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C
measuring precision: for apparent power measurement 2 +/- 5 %, 1260 A ... 5040 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
accuracy of ground-fault monitoring In the range 30 % .. 120 %/Is: +/- 10 % (Class CI-A), in range 15 % .. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T
temperature drift per °C 0.01 %/°C; Reference temperature: 25°C
measured variable frequency 45 ... 65 Hz

Installation/ mounting/ dimensions 9

mounting position any
fastening method direct mounting / stand-alone installation
height 147 mm
width 145 mm
depth 149 mm
required spacing: top 30 mm
required spacing: bottom 30 mm
required spacing: left 0 mm
required spacing: right 0 mm

Connections/ Terminals 8

type of electrical connection: for main current circuit busbar connection
type of electrical connection: for auxiliary and control circuit screw-type terminals
type of electrical connection at the measurement inputs for voltage screw-type terminals
type of connectable conductor cross-sections at the measurement inputs for voltage: finely stranded with core end processing 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1.5 mm2)
tightening torque at the measurement inputs for voltage 0.8 ... 1.2 N·m
tightening torque [lbf·in] at the measurement inputs for voltage 7 ... 10.3 lbf·in
design of the thread of the connection screw at the measurement inputs for current M10 x 30
test voltage for isolation test note For insulation tests, it is recommended to disconnect the voltage terminals; this is mandatory for DC test voltages.

Ambient conditions 10

installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category: during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity during operation 10 ... 95 %

Short-circuit protection 1

product function short circuit protection No

IEC 61508 1

Safety Integrity Level (SIL) according to IEC 61508 1

ATEX 3

certificate of suitability: according to ATEX directive 2014/34/EU BVS 06 ATEX F001
certificate of suitability: according to UKCA ITS21UKEX0464
explosion device group and category according to ATEX directive 2014/34/EU II (2) G, II (2 ) D, I (M2)

Galvanic isolation 1

(electrically) protective separation according to IEC 60947-1 All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)

Main circuit 5

number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 63 ... 630 A
at AC: at 50 Hz rated value 110 ... 690 V
at AC: at 60 Hz rated value 110 ... 690 V
operating frequency rated value 50 ... 60 Hz

Control circuit/ Control 2

type of voltage AC
inrush current maximum 6 300 A; 10 x Io

Logistics 7

Net weight 1.827 kg
Package dimensions 158 × 155 × 178 mm
Country of origin DE
Shipping weight 2.327 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF7114-1BA01-0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-1
Quick answers

Questions about the IUM

What is the rated current of IUM?

The rated current of IUM is 630 A.

Which supply voltage is IUM rated for?

The rated operational voltage of IUM is 690 V AC.

What is the EAN of IUM?

The EAN (GTIN) of IUM is 4047621025728.

Where does IUM ship from, and how fast?

IUM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
