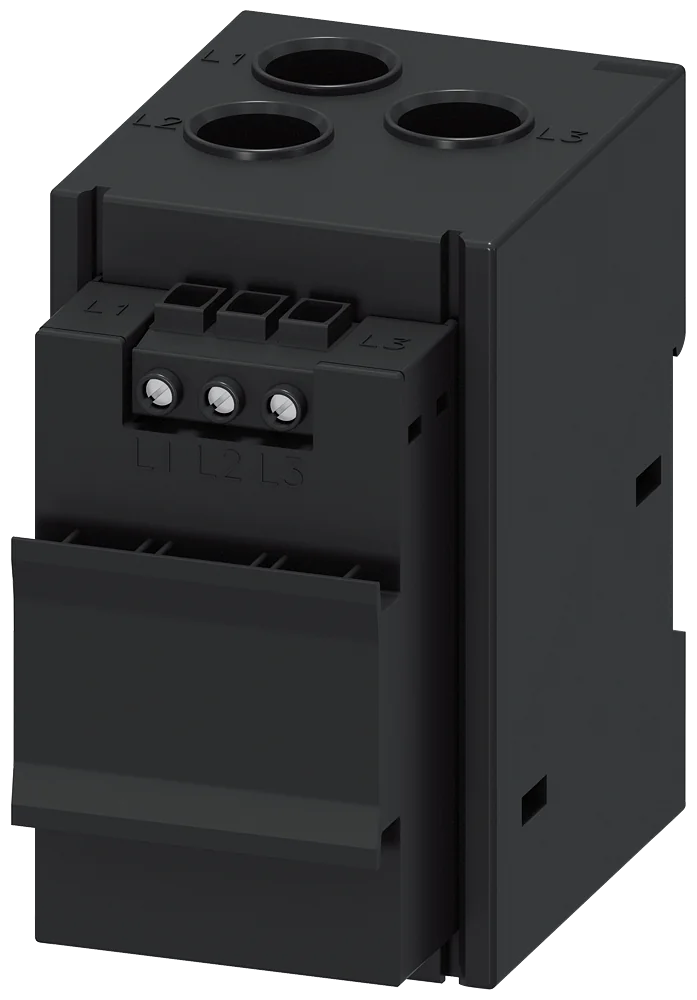

The Siemens 3UF7112-1AA01-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Current/voltage measuring module V2; Set current 10...115 A, Voltage measurement up to 690 V, Overall width 55 mm, Straight-through transformer, basic unit required pro V PB, pro V MR, pro V PN or pro V EIP. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF7112-1AA01-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | Current/voltage measuring module |
| product type designation | IUM |
| measuring procedure | RMS value measurement |
|---|---|
| size of the circuit-breaker | S2, S3 |
| product function: current measurement | Yes |
| product function: voltage measurement | Yes |
| product function: active power measurement | Yes |
| product function: energy measurement | Yes |
| product function: frequency measurement | Yes |
| measuring procedure for current measurement | TRMS |
| current measuring range extension with external current transformers | No |
| measuring procedure for voltage measurement | TRMS |
| measurable supply voltage between the line conductors at AC maximum rated value | 690 V |
| product component: input for thermistor connection | No |
| consumed active power | 0.5 W |
| insulation voltage: with degree of pollution 3 at AC rated value | 690 V |
| insulation voltage: for wires of main circuit according to IEC 60947-1 rated value | 6 kV |
| surge voltage resistance rated value | 6 000 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms; with basic unit snapped on |
| vibration resistance | 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g; with basic unit snapped on: 1 g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (day/month/year) | 05/28/2009 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF7112-1AA01-0 |
|---|---|
| Type designation | IUM |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621025759 |
| ETIM class | EC002572 |
| eCl@ss | 27370804 |
| number of outputs as contact-affected switching element | 0 |
|---|
| product function: power factor monitoring | Yes |
|---|---|
| product function: ground-fault monitoring | Yes |
| product function: voltage detection | Yes |
| trip class | CLASS 5E, 7E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable |
| product function: current detection | Yes |
| product function: overload protection | Yes |
| measuring precision: of frequency measurement | +/- 1.5 %, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
|---|---|
| measuring precision: for current measurement 1 | +/- 1.5 %, in range 7.5 A ... 230 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C |
| measuring precision: for current measurement 2 | +/- 3%, in range 230 A ... 920 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to- line voltages), 50/60 Hz, 25 °C |
| measuring precision: for voltage measurement 1 | +/- 1.5 %, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C |
| measuring precision: at cos phi-measurement 1 | +/- 1.5 %, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: at cos phi-measurement 2 | +/- 5%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for active power measurement 1 | +/- 5%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for active power measurement 2 | +/- 10%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for energy measurement 1 | +/- 5%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for energy measurement 2 | +/- 10%, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for apparent power measurement 1 | +/- 3%, 7.5 A ... 230 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos- phi (0.5...1), 50/60 Hz, 25 °C |
| measuring precision: for apparent power measurement 2 | +/- 5 %, 230 A ... 920 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C |
| accuracy of ground-fault monitoring | In the range 30 % .. 120 %/Is: +/- 10 % (Class CI-A), in range 15 % .. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T |
| temperature drift per °C | 0.01 %/°C; Reference temperature: 25°C |
| measured variable frequency | 45 ... 65 Hz |
| mounting position | any |
|---|---|
| fastening method | screw and snap-on mounting |
| height | 94 mm |
| width | 55 mm |
| depth | 91 mm |
| required spacing: top | 30 mm |
| required spacing: bottom | 30 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| diameter of inlet opening | 14 mm |
| diameter of inlet opening for current measurement | 14 mm |
| type of electrical connection: for main current circuit | straight-through transformers |
|---|---|
| type of electrical connection: for auxiliary and control circuit | screw-type terminals |
| type of electrical connection at the measurement inputs for voltage | screw-type terminals |
| type of connectable conductor cross-sections at the measurement inputs for voltage: finely stranded with core end processing | 1x (0.25 ... 2.5 mm2), 2x (0.25 ... 1.0 mm2) |
| tightening torque at the measurement inputs for voltage | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] at the measurement inputs for voltage | 4.4 ... 5.3 lbf·in |
| test voltage for isolation test note | For insulation tests, it is recommended to disconnect the voltage terminals; this is mandatory for DC test voltages. |
| installation altitude at height above sea level: 1 maximum | 2 000 m |
|---|---|
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | -25 ... +60 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 10 ... 95 % |
| product function short circuit protection | No |
|---|
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
|---|
| certificate of suitability: according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
|---|---|
| certificate of suitability: according to UKCA | ITS21UKEX0464 |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
|---|
| number of poles for main current circuit | 3 |
|---|---|
| adjustable current response value current of the current-dependent overload release | 10 ... 115 A |
| at AC: at 50 Hz rated value | 110 ... 690 V |
| at AC: at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| type of voltage | AC |
|---|---|
| inrush current maximum | 1 150 A; 10 x Io |
| Net weight | 0.341 kg |
|---|---|
| Package dimensions | 118 × 63 × 123 mm |
| Country of origin | DE |
| Shipping weight | 0.841 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
