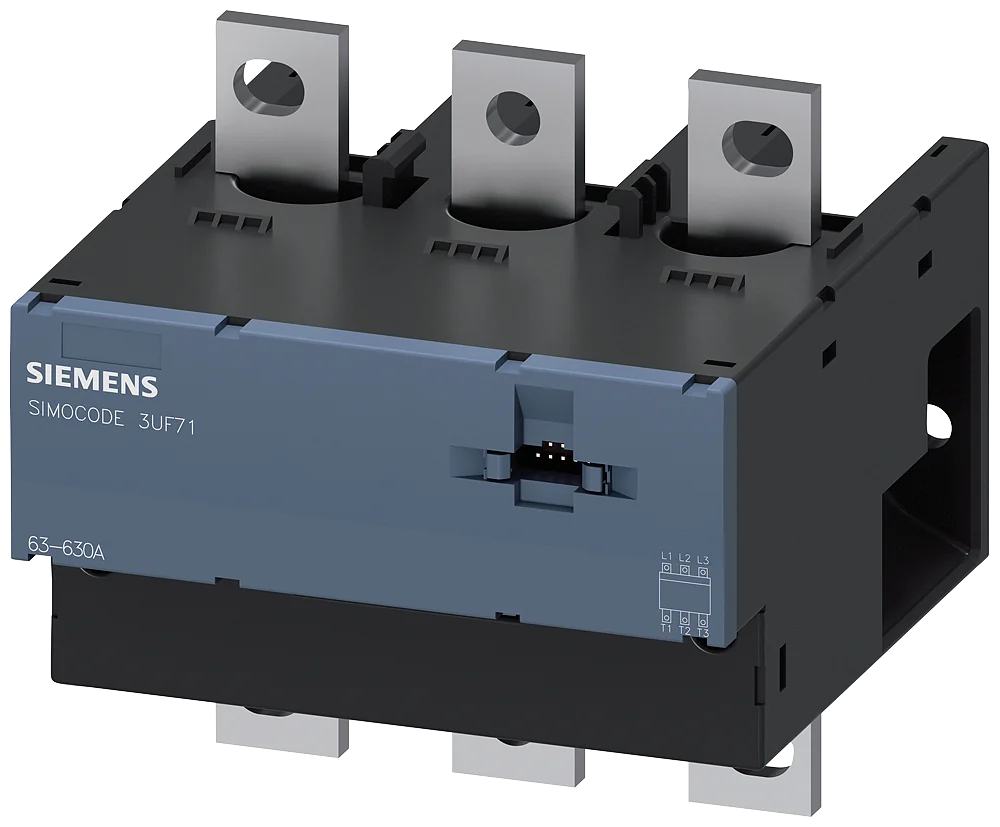

The Siemens 3UF7104-1BA00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Current measuring module, Set current 63...630 A Overall width 145 mm, busbar connection. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF7104-1BA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | Current measuring module |
| product type designation | IM |
| size of the circuit-breaker | S10, S12 |
|---|---|
| product function: current measurement | Yes |
| product function: voltage measurement | No |
| product function: active power measurement | No |
| product function: energy measurement | No |
| product function: frequency measurement | No |
| product component: input for thermistor connection | No |
| consumed active power | 0.2 W |
| insulation voltage: with degree of pollution 3 at AC rated value | 690 V |
| insulation voltage: for wires of main circuit according to IEC 60947-1 rated value | 8 kV |
| surge voltage resistance rated value | 8 000 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance | 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF7104-1BA00-0 |
|---|---|
| Type designation | IM |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209632462 |
| ETIM class | EC002572 |
| eCl@ss | 27370804 |
| number of outputs as contact-affected switching element | 0 |
|---|
| product function: power factor monitoring | No |
|---|---|
| product function: ground-fault monitoring | No |
| product function: voltage detection | No |
| trip class | CLASS 5E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable |
| product function: current detection | Yes |
| product function: overload protection | Yes |
| mounting position | any |
|---|---|
| fastening method | direct mounting / stand-alone installation |
| height | 147 mm |
| width | 145 mm |
| depth | 148 mm |
| required spacing: top | 30 mm |
| required spacing: bottom | 30 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| type of electrical connection: for main current circuit | busbar connection |
|---|---|
| type of connectable conductor cross-sections at the measurement inputs for current: solid with core end processing | 50 mm2 ... 240 mm2 |
| design of the thread of the connection screw at the measurement inputs for current | M8 x 25 |
| installation altitude at height above sea level: 1 maximum | 2 000 m |
|---|---|
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | -25 ... +60 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 5 ... 95 % |
| product function short circuit protection | No |
|---|
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
|---|
| certificate of suitability: according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
|---|---|
| certificate of suitability: according to UKCA | ITS21UKEX0464 |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
|---|
| number of poles for main current circuit | 3 |
|---|---|
| adjustable current response value current of the current-dependent overload release | 63 ... 630 A |
| at AC: at 50 Hz rated value | 110 ... 690 V |
| at AC: at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| type of voltage | AC |
|---|
| Net weight | 1.773 kg |
|---|---|
| Package dimensions | 160 × 151 × 175 mm |
| Country of origin | DE |
| Shipping weight | 2.273 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
