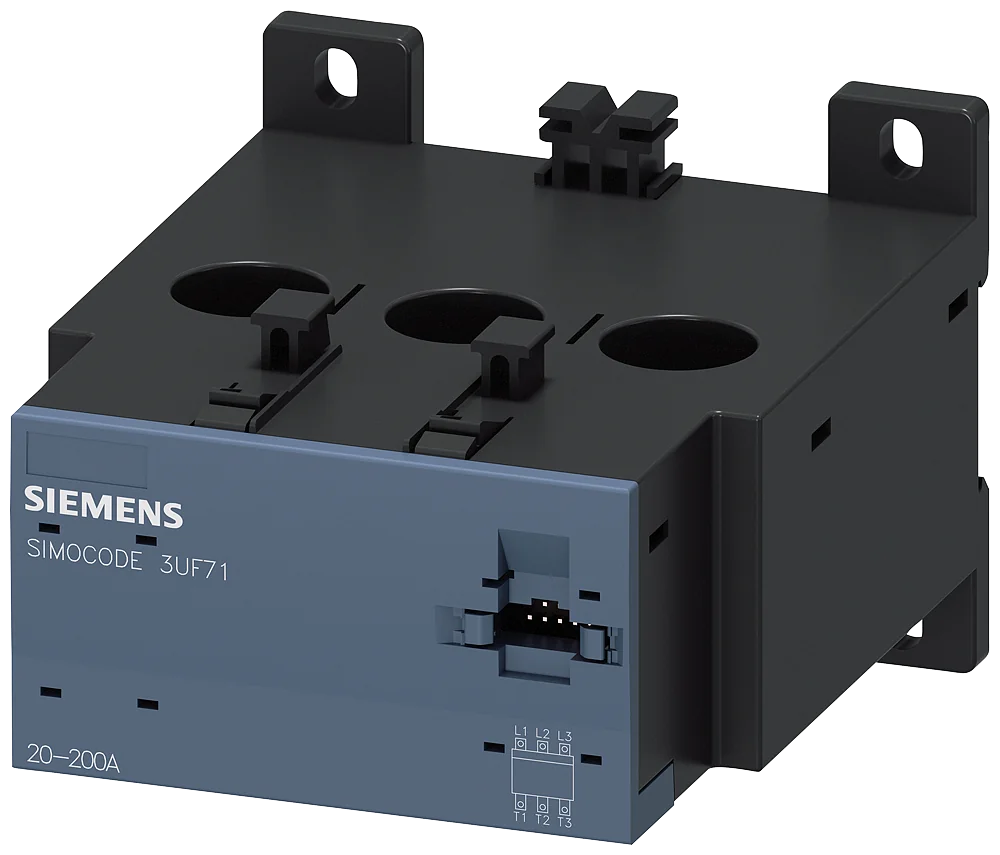

The Siemens 3UF7103-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Current measuring module, Set current 20...200 A overall width 120 mm, straight-through transformer. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3UF7103-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIMOCODE |
|---|---|
| product designation | Current measuring module |
| product type designation | IM |
| size of the circuit-breaker | S6 |
|---|---|
| product function: current measurement | Yes |
| product function: voltage measurement | No |
| product function: active power measurement | No |
| product function: energy measurement | No |
| product function: frequency measurement | No |
| product component: input for thermistor connection | No |
| consumed active power | 0.2 W |
| insulation voltage: with degree of pollution 3 at AC rated value | 690 V |
| insulation voltage: for wires of main circuit according to IEC 60947-1 rated value | 8 kV |
| surge voltage resistance rated value | 8 000 V |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance | 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
| EMC emitted interference according to IEC 60947-1 | class A |
|---|---|
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference: due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference: due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Part number | 3UF7103-1AA00-0 |
|---|---|
| Type designation | IM |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209624603 |
| ETIM class | EC002572 |
| eCl@ss | 27370804 |
| number of outputs as contact-affected switching element | 0 |
|---|
| product function: power factor monitoring | No |
|---|---|
| product function: ground-fault monitoring | No |
| product function: voltage detection | No |
| trip class | CLASS 5E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable |
| product function: current detection | Yes |
| product function: overload protection | Yes |
| mounting position | any |
|---|---|
| fastening method | screw and snap-on mounting |
| height | 95 mm |
| width | 120 mm |
| depth | 145 mm |
| required spacing: top | 30 mm |
| required spacing: bottom | 30 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| diameter of inlet opening | 25 mm |
| diameter of inlet opening for current measurement | 25 mm |
| type of electrical connection: for main current circuit | straight-through transformers |
|---|
| installation altitude at height above sea level: 1 maximum | 2 000 m |
|---|---|
| installation altitude at height above sea level: 2 maximum | 3 000 m; max. +50 °C (no protective separation) |
| installation altitude at height above sea level: 3 maximum | 4 000 m; max. +40 °C (no protective separation) |
| ambient temperature: during operation | -25 ... +60 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity during operation | 5 ... 95 % |
| product function short circuit protection | No |
|---|
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
|---|
| certificate of suitability: according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 |
|---|---|
| certificate of suitability: according to UKCA | ITS21UKEX0464 |
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) |
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
|---|
| number of poles for main current circuit | 3 |
|---|---|
| adjustable current response value current of the current-dependent overload release | 20 ... 200 A |
| at AC: at 50 Hz rated value | 110 ... 690 V |
| at AC: at 60 Hz rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| type of voltage | AC |
|---|
| Net weight | 0.517 kg |
|---|---|
| Package dimensions | 146 × 140 × 178 mm |
| Country of origin | DE |
| Shipping weight | 1.017 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of IM is 200 A.
The rated operational voltage of IM is 110690 V AC.
The EAN (GTIN) of IM is 4011209624603.
IM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
