Part number
3UF7100-1AA00-0
Model no
IM
$125.20 In stock · 25 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3UF7

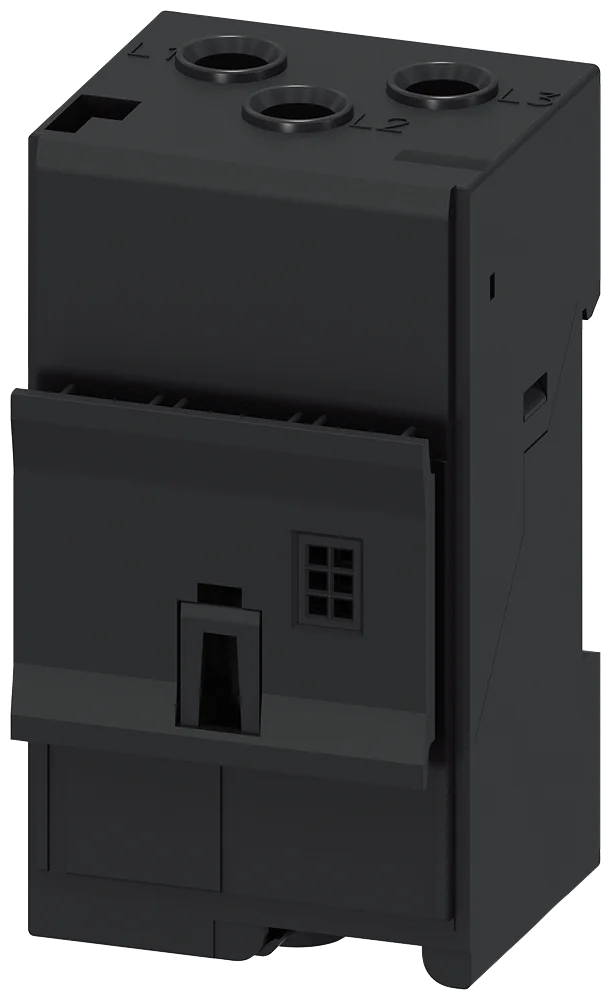

Siemens 3UF7100-1AA00-0 3UF7 0.3...3A 3P 110690V Motor Controller

Rated current
3 A
Rated operational voltage
110690 V AC
Poles
3P
EAN
4011209607927
Description

About the IM

The Siemens 3UF7100-1AA00-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Current measuring module, Set current 0.3...3 A Overall width 45 mm, straight-through transformer. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3UF7100-1AA00-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

85 values · Last verified 31 Oct 2026

General 3

product brand name SIMOCODE
product designation Current measuring module
product type designation IM

General technical data 16

size of the circuit-breaker S00, S0
product function: current measurement Yes
product function: voltage measurement No
product function: active power measurement No
product function: energy measurement No
product function: frequency measurement No
product component: input for thermistor connection No
consumed active power 0.2 W
insulation voltage: with degree of pollution 3 at AC rated value 690 V
insulation voltage: for wires of main circuit according to IEC 60947-1 rated value 6 kV
surge voltage resistance rated value 6 000 V
shock resistance according to IEC 60068-2-27 15 g / 11 ms
vibration resistance 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g
reference code according to IEC 81346-2 F
Substance Prohibitance (day/month/year) 05/28/2009
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8

Electromagnetic compatibility 6

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
field-based interference according to IEC 61000-4-3 10 V/m
Show all 85 specifications ↓ Show less ↑60 more values in Identification, Inputs/ Outputs, Protective and monitoring functions, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, IEC 61508, ATEX, Galvanic isolation, Main circuit, Approvals Certificates, Environmental Con-firmations, Logistics.

Identification 10

Part number 3UF7100-1AA00-0
Type designation IM
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209607927
ETIM class EC002572
eCl@ss 27370804

Inputs/ Outputs 1

number of outputs as contact-affected switching element 0

Protective and monitoring functions 6

product function: power factor monitoring No
product function: ground-fault monitoring No
product function: voltage detection No
trip class CLASS 5E, 10E, 15E, 20E, 25E, 30E, 35E and 40E adjustable
product function: current detection Yes
product function: overload protection Yes

Installation/ mounting/ dimensions 11

mounting position any
fastening method screw and snap-on mounting
height 84 mm
width 45 mm
depth 45 mm
required spacing: top 30 mm
required spacing: bottom 30 mm
required spacing: left 0 mm
required spacing: right 0 mm
diameter of inlet opening 7.5 mm
diameter of inlet opening for current measurement 7.5 mm

Connections/ Terminals 1

type of electrical connection: for main current circuit straight-through transformers

Ambient conditions 10

installation altitude at height above sea level: 1 maximum 2 000 m
installation altitude at height above sea level: 2 maximum 3 000 m; max. +50 °C (no protective separation)
installation altitude at height above sea level: 3 maximum 4 000 m; max. +40 °C (no protective separation)
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category: during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity during operation 5 ... 95 %

Short-circuit protection 1

product function short circuit protection No

IEC 61508 1

Safety Integrity Level (SIL) according to IEC 61508 1

ATEX 3

certificate of suitability: according to ATEX directive 2014/34/EU BVS 06 ATEX F001
certificate of suitability: according to UKCA ITS21UKEX0464
explosion device group and category according to ATEX directive 2014/34/EU II (2) G, II (2 ) D, I (M2)

Galvanic isolation 1

(electrically) protective separation according to IEC 60947-1 All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)

Main circuit 4

number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 0.3 ... 3 A
at AC: at 50 Hz rated value 110 ... 690 V
at AC: at 60 Hz rated value 110 ... 690 V

Approvals Certificates 1

Environment General Product Approval

Environmental Con-firmations 3

General Product Approval EMV For use in hazardous locations
For use in hazardous locations Test Certificates Maritime application
Miscellaneous Special Test Certific- Type Test Certific-

Logistics 7

Net weight 0.148 kg
Package dimensions 96 × 74 × 55 mm
Country of origin DE
Shipping weight 0.648 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF7100-1AA00-0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the IM

What is the rated current of IM?

The rated current of IM is 3 A.

Which supply voltage is IM rated for?

The rated operational voltage of IM is 110690 V AC.

What is the EAN of IM?

The EAN (GTIN) of IM is 4011209607927.

Where does IM ship from, and how fast?

IM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
