Part number
3UF7020-1AU01-0
Model no
pro S
$430.28 In stock · 20 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3UF7

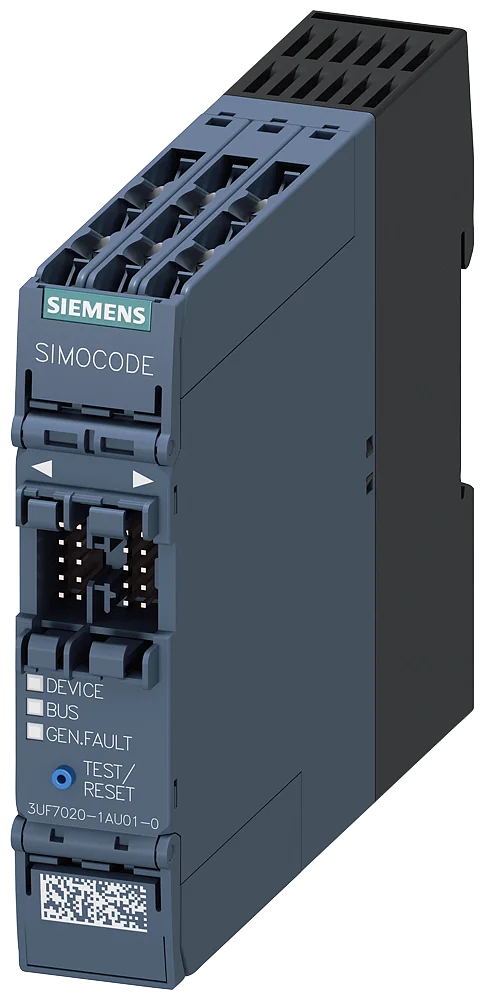

Siemens 3UF7020-1AU01-0 3UF7 240V Motor Controller

Rated operational voltage
240 V AC
EAN
4011209916210
Description

About the pro S

The Siemens 3UF7020-1AU01-0 is a motor controller from the SENTRON/SIRIUS 3UF7 series. Basic device SIMOCODE pro S, PROFIBUS DP interface 1.5 Mbps, 4 I/2 O freely configurable, Us: 110...240 V AC/DC, input for thermistor connection monostable relay outputs, expandable by a multifunction module. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 61131-2
  • IEC 60947-5
  • IEC 60947-1

Applications & Use Cases

The Siemens 3UF7020-1AU01-0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3UF7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

197 values · Last verified 31 Oct 2026

General 4

product brand name SIMOCODE
product designation Motor management system
design of the product Basic device 0
product type designation pro S

General technical data 46

certificate of suitability CE / UL / CSA / C-Tick (RCM) / GOST / NOM / ATEX
product function: current measurement No
product function: voltage measurement No
product function: active power measurement No
product function: energy measurement No
product function: frequency measurement No
product function: bus communication Yes
product function: data acquisition function Yes
product function: diagnostics function Yes
product function: password protection Yes
product function: test function Yes
product function: maintenance function Yes
product function: MRRT redundancy procedure No
product component: input for thermistor connection Yes
product component: digital input Yes
product component: input for analog temperature sensors No
product component: input for ground fault detection No
product component: relay output Yes
product extension: temperature monitoring module Yes
product extension: current measuring module Yes
product extension: current/voltage measuring module No
product extension: fail-safe digital I/O module No
product extension: ground-fault monitoring module Yes
product extension: decoupling module No
product extension: analog I/O module No
product extension: digital I/O module with monostable outputs Yes
product extension: digital I/O module with bistable outputs No
product extension: control unit with display No
product extension: control unit Yes
apparent power consumption 4.7 V·A
consumed active power 2.5 W
insulation voltage with degree of pollution 3 at AC rated value 300 V
surge voltage resistance rated value 4 000 V
shock resistance: when mounted on current measuring module according to IEC 60068-2-27 10 g / 11 ms
shock resistance: according to IEC 60068-2-27 15 g / 11 ms
shock resistance: vibration resistance 1 ... 6 Hz / 15 mm; 6 ... 500 Hz / 2 g
shock resistance: vibration resistance when mounted on current measuring module according to IEC 60068-2-6 1 ... 4 Hz / 15 mm, 4 ... 500 Hz / 1g
switching capacity current of the NO contacts of the relay outputs at AC-15: at 24 V 6 A
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 100 000
buffering time in the event of power failure 0.05 s
reference code according to IEC 81346-2 F
continuous current of the NO contacts of the relay outputs: at 50 °C 6 A
type of input characteristic Type 1 in accordance with EN 61131-2
Substance Prohibitance (day/month/year) 05/01/2012
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Electromagnetic compatibility 10

EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3
conducted interference: due to burst according to IEC 61000-4-4 2 kV (power ports) / 1 kV (signal ports)
conducted interference: due to conductor-earth surge according to IEC 61000-4-5 2 kV
conducted interference: due to conductor-conductor surge according to IEC 61000-4-5 1 kV
conducted interference: due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 corresponds to degree of severity A
field-bound HF interference emission according to CISPR11 corresponds to degree of severity A
Show all 197 specifications ↓ Show less ↑137 more values in Identification, Inputs/ Outputs, Protective and monitoring functions, Motor control functions, Communication/ Protocol, Installation/ mounting/ dimensions, Connections/ Terminals, Ambient conditions, Short-circuit protection, Electrical Safety, ATEX, Galvanic isolation, Control circuit/ Control, Logistics.

Identification 10

Part number 3UF7020-1AU01-0
Type designation pro S
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209916210
ETIM class EC002572
eCl@ss 27370804

Inputs/ Outputs 15

product function: parameterizable inputs Yes
product function: parameterizable outputs Yes
number of inputs 4
for thermistor connection 1
number of digital inputs with a common reference potential 4
digital input version: type 1 acc. to IEC 61131 Yes
input voltage at digital input at DC: rated value 24 V
number of outputs 2
number of semiconductor outputs 0
number of outputs as contact-affected switching element 2
switching behavior monostable
number of relay outputs 2
type of relay outputs Monostable
wire length for digital signals maximum 300 m
wire length for thermistor connection: with conductor cross-section = 0.5 mm2 maximum 50 m

Protective and monitoring functions 21

product function: asymmetry detection Yes
product function: blocking current evaluation Yes
product function: power factor monitoring No
product function: ground fault detection Yes
product function: ground-fault monitoring No
product function: phase failure detection Yes
product function: phase sequence recognition No
product function: voltage detection No
product function: monitoring of number of start operations Yes
product function: overvoltage detection No
product function: overcurrent detection 1 phase Yes
product function: undervoltage detection No
product function: undercurrent detection 1 phase Yes
product function: active power monitoring No
product function: current detection Yes
product function: overload protection Yes
product function: evaluation of thermistor motor protection Yes
total cold resistance number of sensors in series maximum 1.5 kΩ
response value of thermoresistor 3 400 ... 3 800 Ω
of the short-circuit control 9Ω
release value of thermoresistor 1 500 ... 1 650 Ω

Motor control functions 12

product function: parameterizable overload relay Yes
product function: circuit breaker control Yes
product function: direct start Yes
product function: reverse starting Yes
product function: star-delta circuit Yes
product function: star-delta reversing circuit No
product function: Dahlander circuit No
product function: Dahlander reversing circuit No
product function: pole-changing switch circuit No
product function: pole-changing switch reversing circuit No
product function: slide control No
product function: valve control No

Communication/ Protocol 27

protocol is supported: PROFIBUS DP protocol Yes
protocol is supported: PROFINET IO protocol No
protocol is supported: PROFIsafe protocol No
protocol is supported: Modbus RTU No
protocol is supported: EtherNet/IP No
protocol is supported: OPC UA Server No
protocol is supported: LLDP No
protocol is supported: Address Resolution Protocol (ARP) No
protocol is supported: SNMP No
protocol is supported: HTTPS No
protocol is supported: NTP No
protocol is supported: Media Redundancy Protocol (MRP) No
product function: web server No
product function: shared device No
product function: at the Ethernet interface Autocrossover No
product function: at the Ethernet interface Autonegotiation No
product function: at the Ethernet interface Autosensing No
product function: is supported Device Level Ring (DLR) No
product function: is supported PROFINET system redundancy (S2) No
product function: supports PROFIenergy measured values No
product function: supports PROFIenergy shutdown No
transfer rate maximum 1.5 Mbit/s
identification & maintenance function: I&M0 - device-specific information Yes
identification & maintenance function: I&M1 - higher level designation/location designation Yes
identification & maintenance function: I&M2 - installation date Yes
identification & maintenance function: I&M3 - comment Yes
type of electrical connection of the communication interface Screw-type terminal (1.5 Mbit)

Installation/ mounting/ dimensions 9

mounting position any
fastening method screw and snap-on mounting
height 100 mm
width 22.5 mm
depth 124.5 mm
required spacing: top 40 mm
required spacing: bottom 40 mm
required spacing: left 0 mm
required spacing: right 0 mm

Connections/ Terminals 8

product component removable terminal for auxiliary and control circuit Yes
type of electrical connection: for auxiliary and control circuit screw-type terminals
type of connectable conductor cross-sections: solid 1x (0.5 ... 2.5 mm2), 2x ( 0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 2.5 mm2), 2x (0.5 ... 1 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 14), 2x (20 ... 16)
tightening torque with screw-type terminals 0.6 ... 0.8 N·m
tightening torque [lbf·in] with screw-type terminals 5.2 ... 7 lbf·in
type of connectable conductor cross-sections for PROFIBUS wire 2x 0.34 mm2, AWG 22

Ambient conditions 9

installation altitude at height above sea level maximum 2 000 m
ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
ambient temperature: during transport -40 ... +80 °C
environmental category: during operation according to IEC 60721 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category: during storage according to IEC 60721 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category: during transport according to IEC 60721 2K2, 2C1, 2S1, 2M2
relative humidity: during operation 10 ... 95 %
contact rating of auxiliary contacts according to UL B300 / R300

Short-circuit protection 1

design of short-circuit protection per output Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit- breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)

Electrical Safety 1

touch protection against electrical shock finger-safe

ATEX 4

certificate of suitability: according to ATEX directive 2014/34/EU BVS 06 ATEX F001
certificate of suitability: acc. to Equipment and Protective System Intended for Use in Potentially Explosive Atmospheres Regulations 2016 (S.I. 2016 No.1107) ITS21UKEX0464, ITS21UKEX0455X
certificate of suitability: according to UKCA ITS21UKEX0464
explosion device group and category according to ATEX directive 2014/34/EU I (M2), II (2) G, II (2) D

Galvanic isolation 2

(electrically) protective separation according to IEC 60947-1 All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
design of the electrical isolation Protective separation in accordance with IEC 60947-1 for all circuits

Control circuit/ Control 11

product function soft starter control Yes
type of voltage of the control supply voltage AC/DC
control supply voltage at AC: at 50 Hz rated value 110 ... 240 V
control supply voltage at AC: at 60 Hz rated value 110 ... 240 V
control supply voltage frequency: 1 rated value 50 Hz
control supply voltage frequency: 2 rated value 60 Hz
relative symmetrical tolerance of the control supply voltage frequency 5%
control supply voltage at DC rated value 110 ... 240 V
operating range factor control supply voltage rated value at DC: initial value 0.85
inrush current peak: at 240 V 10 A
duration of inrush current peak: at 240 V 1 ms

Logistics 7

Net weight 0.212 kg
Package dimensions 156 × 109 × 38 mm
Country of origin DE
Shipping weight 0.712 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3UF7020-1AU01-0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 61131-2
  • IEC 60947-5
  • IEC 60947-1
Quick answers

Questions about the pro S

Which supply voltage is pro S rated for?

The rated operational voltage of pro S is 240 V AC.

What is the EAN of pro S?

The EAN (GTIN) of pro S is 4011209916210.

Where does pro S ship from, and how fast?

pro S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for motor starters

All guides for motor starters
Reviews

Customer reviews

Series

Siemens 3UF7

Brand
Siemens
Series
3UF7
$430.28 In stock · 18 Nov
Quote

Get a Quote

pro S

Genuine parts

Genuine, factory-sealed parts

Siemens · 3UF7020-1AU01-0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
