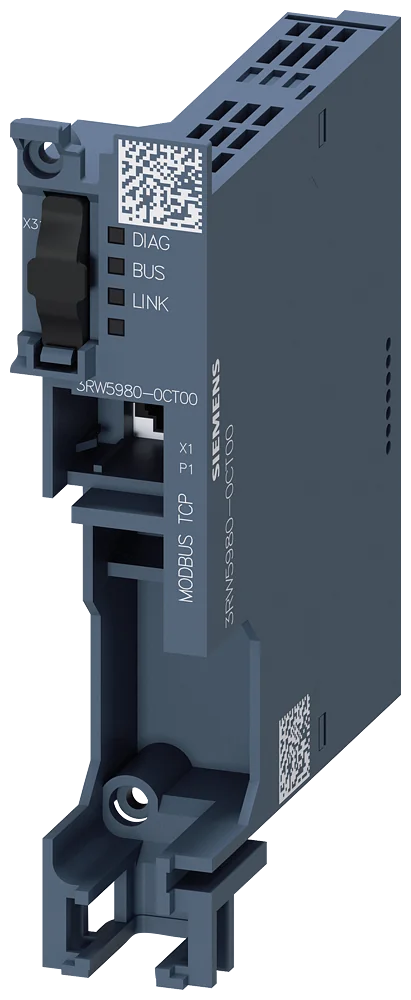

Siemens 3RW5980-0CT00 3RW5 Soft Starter
Description
About the 3RW59
About the 3RW59
The Siemens 3RW5980-0CT00 is a soft starter from the SENTRON/SIRIUS 3RW5 series. Communication module Modbus TCP. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3RW5980-0CT00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RW5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 6
| product brand name | SIRIUS |
|---|---|
| product category | Communication modules |
| product designation | Communication module |
| design of the product | Modbus TCP |
| product type designation | 3RW59 |
| manufacturer's article number of soft starter: ● | 3RW50 |
General technical data 3
| reference code according to IEC 81346-2 | A |
|---|---|
| Substance Prohibitance (day/month/year) | 02/15/2018 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
Installation/ mounting/ dimensions 6
| mounting position | any |
|---|---|
| fastening method | screw fixing |
| height | 126 mm |
| width | 28 mm |
| depth | 82 mm |
| weight without packaging | 0.1 kg |
Show all 40 specifications ↓ Show less ↑25 more values in Identification, Ambient conditions, Electrical Safety, Logistics.
Identification 10
| Part number | 3RW5980-0CT00 |
|---|---|
| Type designation | 3RW59 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621044170 |
| ETIM class | EC002498 |
| eCl@ss | 27371392 |
Ambient conditions 6
| installation altitude at height above sea level maximum | 5 000 m |
|---|---|
| ambient temperature: during operation | -25 ... +60 °C; observe derating of basic unit above 40 °C |
| ambient temperature: during storage and transport | -40 ... +80 °C |
| environmental category: during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category: during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m) |
Electrical Safety 2
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Logistics 7
| Net weight | 0.095 kg |
|---|---|
| Package dimensions | 133 × 108 × 45 mm |
| Country of origin | CZ |
| Shipping weight | 0.595 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 31 Oct 2026
