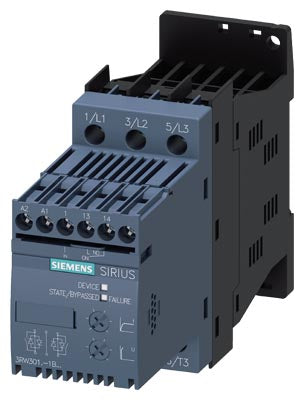

Siemens 3RW3013-1BB14 SIRIUS 3RW30 Soft Starter 1.5 kW 3.6 A
Description
About the 3RW3013-1BB14
About the 3RW3013-1BB14
The Siemens 3RW3013-1BB14 delivers 1.5 kW soft-start control at 3.6 A across 200–480 V AC. Part of the compact SIRIUS 3RW30 entry-level family, this IEC 60947-4-2 compliant unit replaces direct-on-line (DOL) starters with simple dial-based commissioning and no display. Ideal for small motors in pumps, fans, and conveyors.
Technical Specifications
SIRIUS 3RW30 Family Features
- Two-phase voltage ramp soft start and soft stop
- Internal bypass relays integrated (no external bypass needed)
- Compact width starting at 45 mm — direct DIN-rail mounting
- Dial-controlled parameterisation (no display, no software)
- No fieldbus communication
- No motor overload protection — separate overload relay required
Specification
Full specification
General technical data 16
| product brand name | SIRIUS |
|---|---|
| product designation | Soft starter |
| product feature: integrated bypass contact system | Yes |
| product feature: thyristors | Yes |
| product function: intrinsic device protection | No |
| product function: motor overload protection | No |
| product function: evaluation of thermistor motor protection | No |
| product function: external reset | No |
| product function: adjustable current limitation | No |
| product function: inside-delta circuit | No |
| product component motor brake output | No |
| insulation voltage rated value | 600 V |
| degree of pollution | 3, acc. to IEC 60947-4-2 |
| blocking voltage of the thyristor maximum | 1 200 V |
| reference code according to EN 61346-2 | Q |
| reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750 | G |
Power Electronics 15
| operational current: at 40 °C rated value | 3.6 A |
|---|---|
| operational current: at 50 °C rated value | 3.3 A |
| operational current: at 60 °C rated value | 3 A |
| at 230 V: at standard circuit at 40 °C rated value | 0.75 kW |
| at 400 V: at standard circuit at 40 °C rated value | 1.5 kW |
| yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value | 0.5 hp |
| operating frequency rated value | 50 ... 60 Hz |
| relative negative tolerance of the operating frequency | -10 % |
| relative positive tolerance of the operating frequency | 10 % |
| operating voltage at standard circuit rated value | 200 ... 480 V |
| relative negative tolerance of the operating voltage at standard circuit | -15 % |
| relative positive tolerance of the operating voltage at standard circuit | 10 % |
| minimum load [%] | 10 % |
| continuous operating current [% of Ie] at 40 °C | 115 % |
| power loss [W] at operational current at 40 °C during operation typical | 0.25 W |
Control circuit/ Control 11
| type of voltage of the control supply voltage | AC/DC |
|---|---|
| control supply voltage frequency 1 rated value | 50 Hz |
| control supply voltage frequency 2 rated value | 60 Hz |
| relative negative tolerance of the control supply voltage frequency | -10 % |
| relative positive tolerance of the control supply voltage frequency | 10 % |
| control supply voltage 1 at AC at 50 Hz | 110 ... 230 V |
| control supply voltage 1 at AC at 60 Hz | 110 ... 230 V |
| relative negative tolerance of the control supply voltage at AC at 50 Hz | -15 % |
| relative positive tolerance of the control supply voltage at AC at 50 Hz | 10 % |
| control supply voltage 1 at DC | 110 ... 230 V |
| display version for fault signal | red |
Show all 90 specifications ↓ Show less ↑48 more values in Identification, Mechanical data, Connections/ Terminals, Ambient conditions, UL/CSA ratings, Approvals Certificates, Logistics.
Identification 9
| Part number | 3RW3013-1BB14 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209722941 |
| ETIM class | EC000640 |
| eCl@ss | 27370907 |
Mechanical data 11
| size of engine control device | S00 |
|---|---|
| width | 45 mm |
| height | 95 mm |
| depth | 150 mm |
| fastening method | screw and snap-on mounting |
| mounting position | With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° tiltable to the front and back |
| required spacing with side-by-side mounting: upwards | 60 mm |
| required spacing with side-by-side mounting: at the side | 15 mm |
| required spacing with side-by-side mounting: downwards | 40 mm |
| wire length maximum | 300 m |
| number of poles for main current circuit | 3 |
Connections/ Terminals 8
| type of electrical connection: for main current circuit | screw-type terminals |
|---|---|
| type of electrical connection: for auxiliary and control circuit | screw-type terminals |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| type of connectable conductor cross-sections for main contacts for box terminal using the front clamping point: finely stranded with core end processing | 2x (1 ... 2.5 mm2), 2x (2.5 ... 6 mm2) |
| type of connectable conductor cross-sections for AWG cables for main contacts for box terminal: using the front clamping point | 2x (16 ... 10) |
| type of connectable conductor cross-sections for auxiliary contacts: solid | 2x (0.25 ... 2.5 mm2) |
Ambient conditions 9
| installation altitude at height above sea level | 5 000 m |
|---|---|
| environmental category: during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m) |
| environmental category: during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| environmental category: during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ambient temperature: during operation | -25 ... +60 °C |
| ambient temperature: during storage | -40 ... +80 °C |
| derating temperature | 40 °C |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
UL/CSA ratings 3
| at 220/230 V: at standard circuit at 50 °C rated value | 0.5 hp |
|---|---|
| at 460/480 V: at standard circuit at 50 °C rated value | 1.5 hp |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 11.1 kg |
|---|
Logistics 7
| Net weight | 0.438 kg |
|---|---|
| Package dimensions | 61 × 161 × 126 mm |
| Country of origin | CZ |
| Shipping weight | 0.938 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3RW3013-1BB14
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3RW3013-1BB14
What is the rated current of 3RW3013-1BB14?
The rated current of 3RW3013-1BB14 is 3.6 A.
Which supply voltage is 3RW3013-1BB14 rated for?
The rated operational voltage of 3RW3013-1BB14 is 200–480 V AC.
What motor power is 3RW3013-1BB14 rated for?
The rated motor power of 3RW3013-1BB14 is 1.5 kW.
Which control voltage does 3RW3013-1BB14 need?
The control voltage range of 3RW3013-1BB14 is 110–230 V.
What is the HS code of 3RW3013-1BB14 for customs?
The tariff (HS) code on file for 3RW3013-1BB14 is 853710.
What is the EAN of 3RW3013-1BB14?
The EAN (GTIN) of 3RW3013-1BB14 is 4011209722941.
Where does 3RW3013-1BB14 ship from, and how fast?
3RW3013-1BB14 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
