Siemens 3RV2935-5A Motor Protection Circuit Breaker

Siemens 3RV2935-5A 3RV2 Motor Protection Circuit Breaker

Name: Siemens 3RV2935-5A 3RV2 Motor Protection Circuit Breaker
Brand: Siemens
SKU: 3RV2935-5A
Price: 15.14 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RV2935-5A

Catalog No: 3RV2935-5A

Series: 3RV2

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$15.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

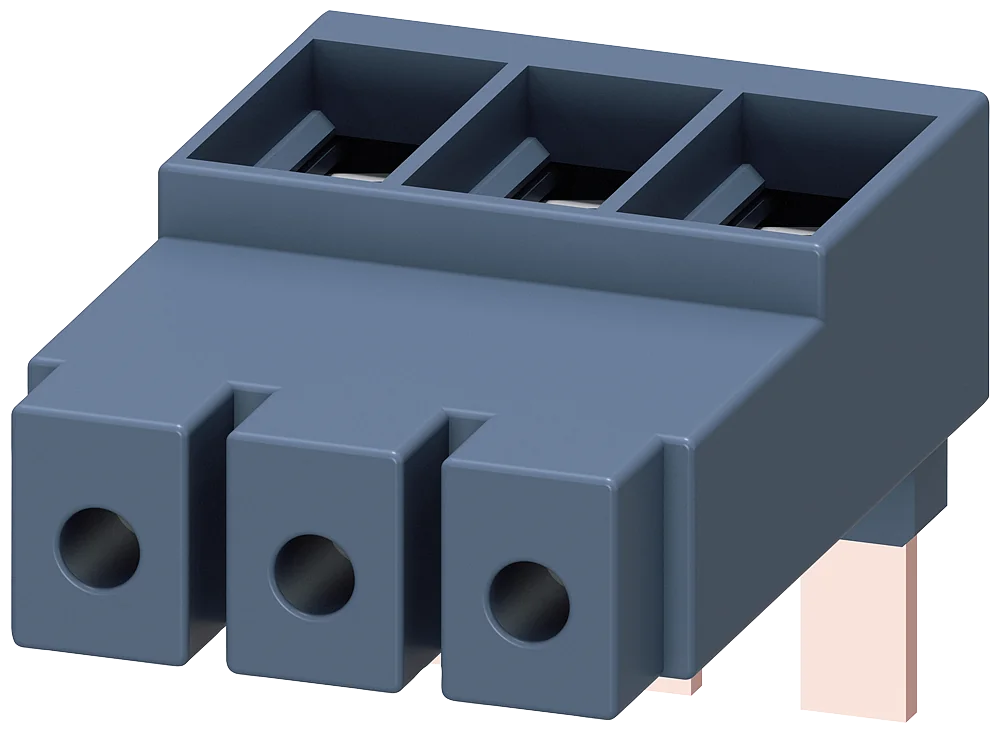

The Siemens 3RV2935-5A is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. 3-phase supply terminal Size S2 for 3-phase busbar connection from top. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RV2935-5A
Brand	Siemens
Series	3RV2
Product Type	Motor Protection Circuit Breaker
Certificate of suitability	CE / UL / CSA / CCC
Size of the circuit-breaker	S2
Protection class IP on the front according to IEC 60529	IP20
Net Weight	0.18 kg
Ampacity maximum	105 A
During operation	-20 ... +60 °C
During storage	-50 ... +80 °C
Touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
Height	51 mm
Width	55 mm
Depth	77 mm
Type of electrical connection for main current circuit	screw-type terminals
Solid	2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)
Stranded	2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)
Finely stranded with core end processing	2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²).
For AWG cables for main contacts	2x (10 ... 1/0), 1x (10 ... 2/0)
Solid or stranded	2.5 ... 70 mm²
Weight	0.18 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3RV2935-5A is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Catalog No

3RV2935-5A

Delivery Date (Days)

1-2 days

Model Number

3RV2
