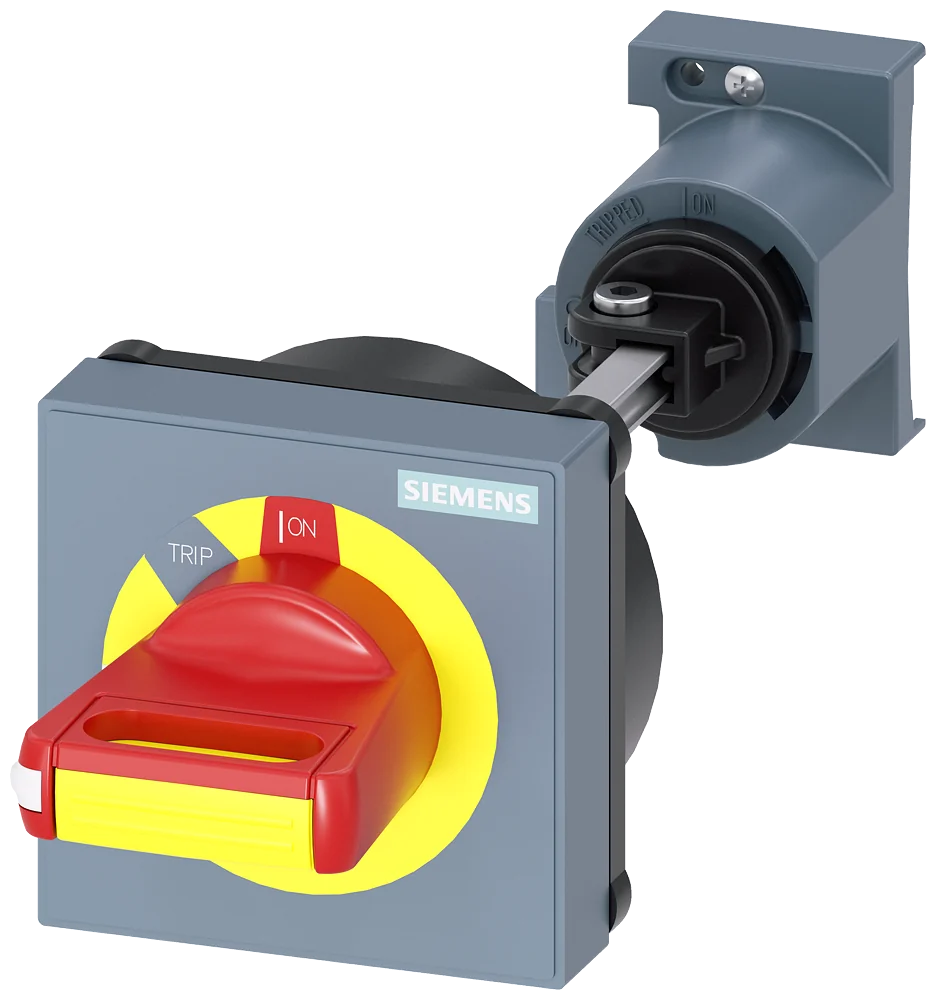

3RV2The Siemens 3RV2926-1C is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. Door-coupling rotary operating mechanism EMERGENCY OFF, size S00...S3 130 mm shaft. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3RV2926-1C is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIRIUS |
|---|---|
| product category | Operating mechanisms |
| product designation | door-coupling rotary operating mechanism |
| design of the product | EMERGENCY OFF door-coupling rotary operating mechanism |
| product type designation | 3RV29 |
| suitability for use | Circuit breaker S00, S0, S2, S3 |
| certificate of suitability | CE / UL / CSA |
|---|---|
| size of the circuit-breaker | S00, S0, S2, S3 |
| product feature can be locked into OFF position | Yes |
| control version of the switch operating mechanism | short shaft |
| product feature interlock | Yes |
|---|---|
| color of the actuating element | red / yellow |
| Part number | 3RV2926-1C |
|---|---|
| Type designation | 3RV29 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621080208 |
| ETIM class | EC001030 |
| eCl@ss | 27370412 |
| mounting position | any |
|---|---|
| fastening method | screw fixing |
| Net weight | 0.17 kg |
|---|---|
| Package dimensions | 116 × 101 × 75 mm |
| Country of origin | DE |
| Shipping weight | 0.67 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe EAN (GTIN) of 3RV29 is 4047621080208.
3RV29 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
