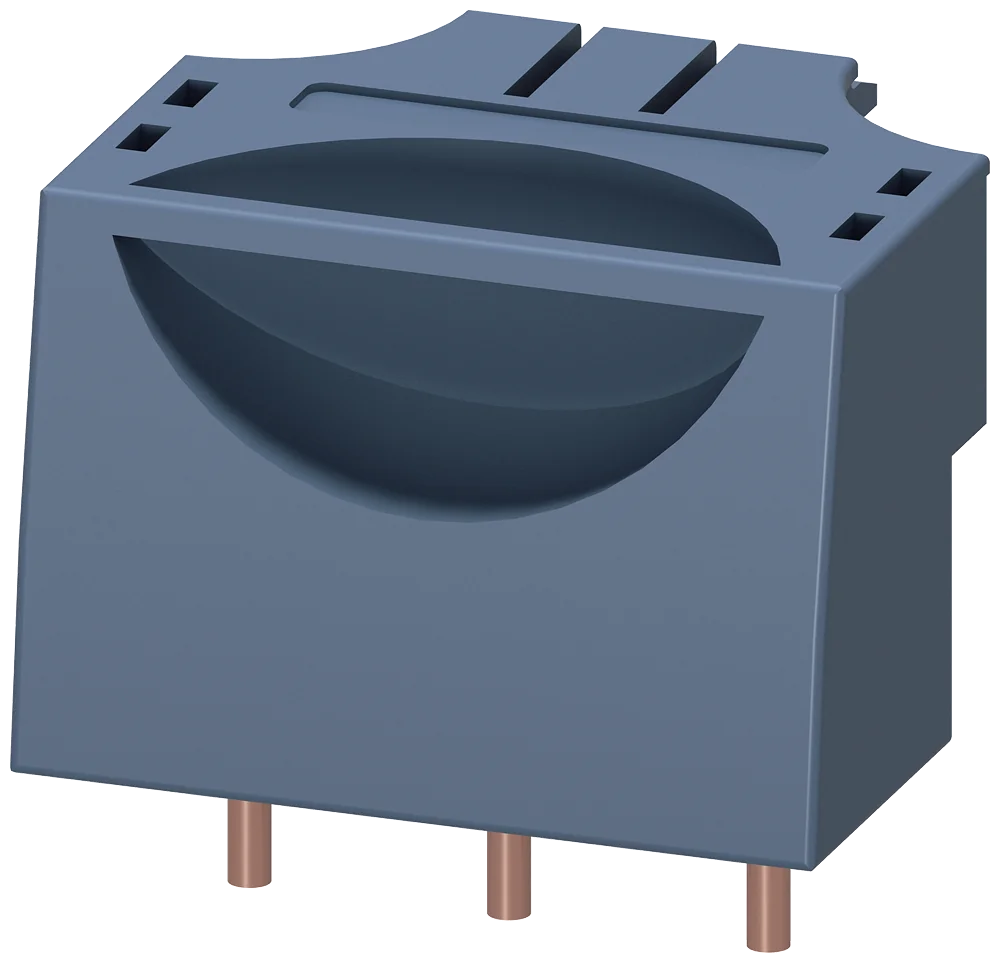

3RV2The Siemens 3RV2917-5CA00 is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. Cable connector size S00 screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3RV2917-5CA00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIRIUS |
|---|---|
| product category | Plugs, adapters and terminals |
| product designation | Connection plug |
| design of the product | Size S00 |
| product type designation | 3RV29 |
| certificate of suitability | CE / UL / CSA / CCC |
|---|---|
| size of the circuit-breaker | S00 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.4 W |
| type of calculation of power loss current-dependent | quadratic |
| protection class IP on the front according to IEC 60529 | IP20 |
| thermal current | 16 A |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| number of poles for main current circuit | 3 |
| operating voltage at AC rated value | 500 V |
| operational current rated value | 16 A |
| ampacity maximum | 16 A |
| operating voltage at AC according to UL rated value | 600 V |
|---|
| Part number | 3RV2917-5CA00 |
|---|---|
| Type designation | 3RV29 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209724655 |
| ETIM class | EC002498 |
| eCl@ss | 27371392 |
| ambient temperature: during operation | -20 ... +60 °C |
|---|---|
| ambient temperature: during storage | -50 ... +80 °C |
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| height | 42 mm |
|---|---|
| width | 45 mm |
| depth | 54 mm |
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.313 kg |
|---|
| Net weight | 0.032 kg |
|---|---|
| Package dimensions | 78 × 53 × 63 mm |
| Country of origin | CZ |
| Shipping weight | 0.532 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 3RV29 is 16 A.
The rated operational voltage of 3RV29 is 500 V AC.
The EAN (GTIN) of 3RV29 is 4011209724655.
3RV29 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
