Siemens 3RV2917-4B Motor Protection Circuit Breaker

Siemens 3RV2917-4B 3RV2 63A 3P 500V Motor Protection Circuit Breaker

Name: Siemens 3RV2917-4B 3RV2 63A 3P 500V Motor Protection Circuit Breaker
Brand: Siemens
SKU: 3RV2917-4B
Price: 12.81 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RV2917-4B

Catalog No: 3RV2917-4B

Series: 3RV2

Rated Current: 63A

Rated Voltage: 500V

Poles: 3

Stock: 9

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$12.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

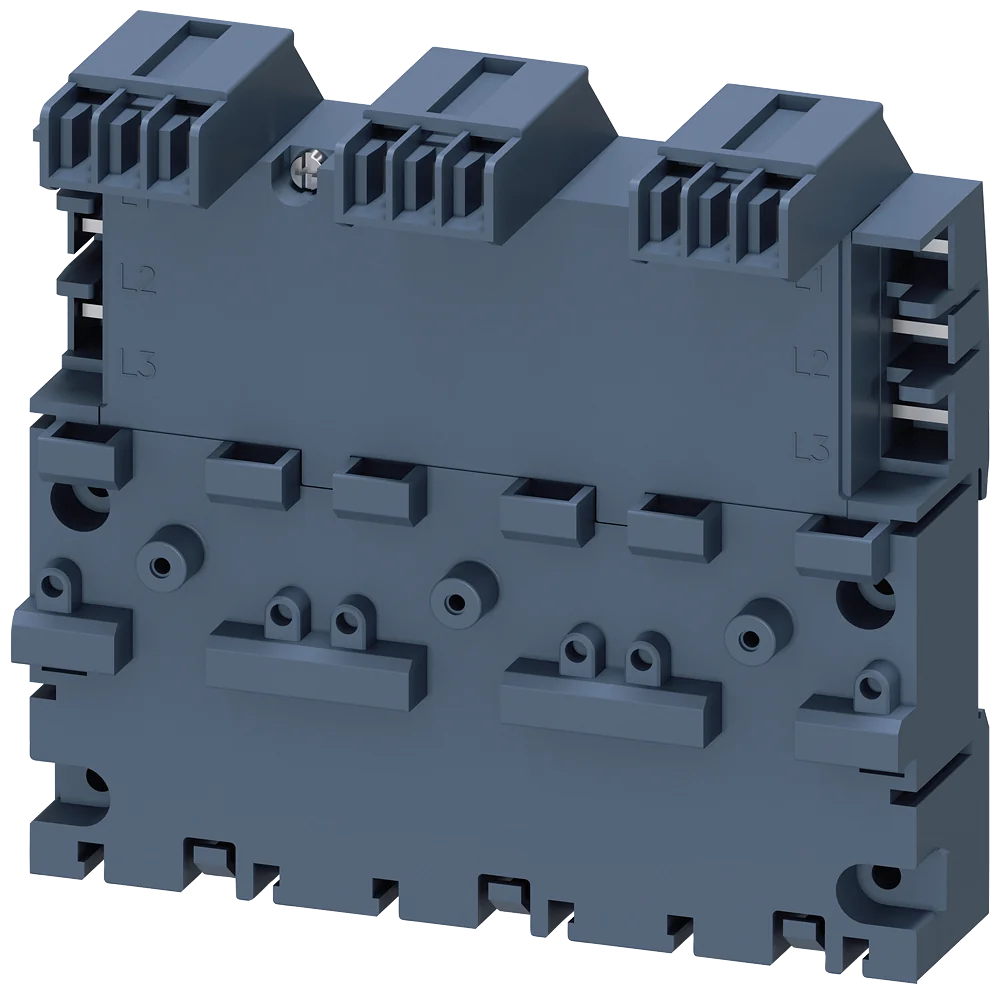

The Siemens 3RV2917-4B is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. 3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RV2917-4B
Brand	Siemens
Series	3RV2
Product Type	Motor Protection Circuit Breaker
Certificate of suitability	CE / UL / CSA / CCC
Size of the circuit-breaker	S00, S0
Type of calculation of power loss current-dependent	quadratic
Surge voltage resistance rated value	6 kV
Protection class IP on the front according to IEC 60529	IP20
Thermal current	63 A
Net Weight	0.345 kg
Number of poles for main current circuit	3
Operating voltage at AC rated value	500 V
Operational current rated value	63 A
Operating voltage at AC according to UL rated value	600 V
Ambient temperature during operation	-20 ... +60 °C
Touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
Short-circuit rating	see table in the operating instructions
Mounting position	any
Fastening method	snap-on fastening on 35 mm DIN rail
Height	129 mm
Width	136 mm
Weight	0.345 kg
Country of Origin	CZ

Applications & Use Cases

The Siemens 3RV2917-4B is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

63A

Rated Voltage (VAC)

500V

Catalog No

3RV2917-4B

Number of Poles

Delivery Date (Days)

1-2 days

Model Number

3RV2
