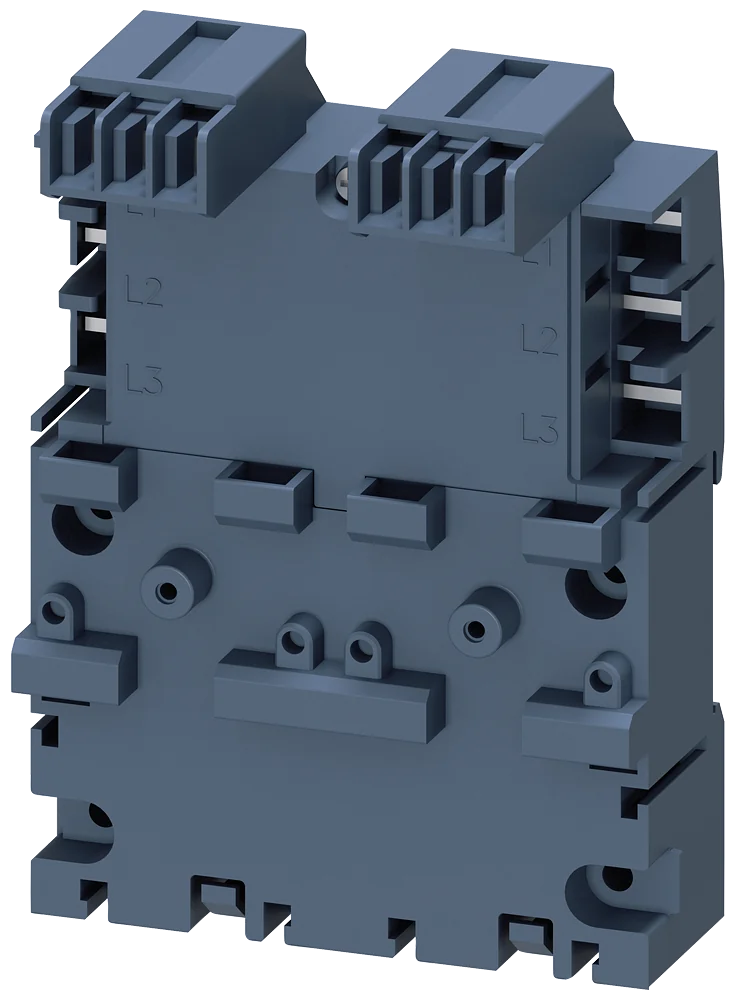

3RV2The Siemens 3RV2917-4A is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. 3-phase busbar including extension connector for 2 circuit breakers Size S00 and S0. Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3RV2917-4A is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIRIUS |
|---|---|
| product category | Infeed systems |
| product designation | 3-phase busbar |
| design of the product | for 2 switches |
| product type designation | 3RV29 |
| suitability for use | circuit-breakers 3RV2 |
| certificate of suitability | CE / UL / CSA / CCC |
|---|---|
| size of the circuit-breaker | S00, S0 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 7.1 W |
| type of calculation of power loss current-dependent | quadratic |
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front according to IEC 60529 | IP20 |
| thermal current | 63 A |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| number of poles for main current circuit | 3 |
| operating voltage at AC rated value | 500 V |
| operational current rated value | 63 A |
| operating voltage at AC according to UL rated value | 600 V |
|---|
| Part number | 3RV2917-4A |
|---|---|
| Type designation | 3RV29 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209719101 |
| ETIM class | EC001531 |
| eCl@ss | 27370392 |
| ambient temperature during operation | -20 ... +60 °C |
|---|
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| short-circuit rating | see table in the operating instructions |
|---|
| mounting position | any |
|---|---|
| fastening method | snap-on fastening on 35 mm DIN rail |
| height | 129 mm |
| width | 91 mm |
| depth | 59 mm |
| with side-by-side mounting: backwards | 0 mm |
| with side-by-side mounting: upwards | 10 mm |
| with side-by-side mounting: at the side | 0 mm |
| for grounded parts: backwards | 0 mm |
| for grounded parts: upwards | 10 mm |
| for grounded parts: at the side | 0 mm |
| for live parts: backwards | 0 mm |
| for live parts: upwards | 10 mm |
| for live parts: at the side | 0 mm |
| type of electrical connection for main current circuit | plug-in without terminals |
|---|
| Net weight | 0.212 kg |
|---|---|
| Package dimensions | 121 × 65 × 138 mm |
| Country of origin | CZ |
| Shipping weight | 0.712 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 3RV29 is 63 A.
The rated operational voltage of 3RV29 is 500 V AC.
The EAN (GTIN) of 3RV29 is 4011209719101.
3RV29 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
