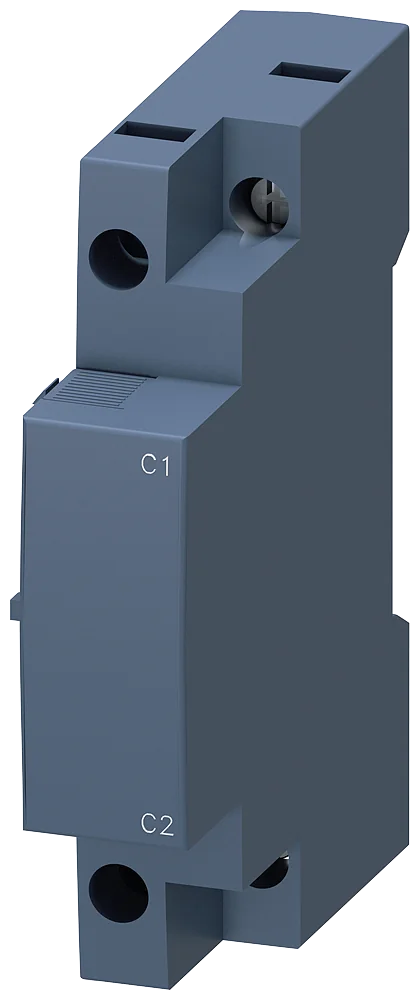

Siemens 3RV2902-1DB0 Motor Protection Circuit Breaker

Siemens 3RV2902-1DB0 3RV2 24V Motor Protection Circuit Breaker

Name: Siemens 3RV2902-1DB0 3RV2 24V Motor Protection Circuit Breaker
Brand: Siemens
SKU: 3RV2902-1DB0
Price: 21.49 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RV2902-1DB0

Catalog No: 3RV2902-1DB0

Series: 3RV2

Rated Voltage: 24V

Stock: 14

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$21.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3RV2902-1DB0 is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. Shunt release 20-24 V AC, 50/60 Hz, 100% OP 20-70 V AC, 50/60 Hz, 5 s switch-on duration 20-70 V DC, 5 s switch-on duration with screw terminal for 3RV2 motor starter protector/circuit breaker. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RV2902-1DB0
Brand	Siemens
Series	3RV2
Product Type	Motor Protection Circuit Breaker
Certificate of suitability	CE / UL / CSA
Size of the circuit-breaker	S00, S0, S2, S3
Closing power at DC minimum	13 W
Rated value	690 V
With degree of pollution 3 at AC rated value	690 V
Degree of pollution	3
Protection class IP on the front according to IEC 60529	IP20
Break time maximum	20 ms
Net Weight	0.18 kg
Type of voltage of the control supply voltage	AC
At 50 Hz	20 ... 24 V
At 60 Hz	20 ... 24 V
Control supply voltage frequency 1	50 ... 60 Hz
Instantaneous contact	0
Leading contact	0
During operation	-20 ... +60 °C
During storage	-50 ... +80 °C
Touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
Weight	0.18 kg
Country of Origin	CZ

Applications & Use Cases

The Siemens 3RV2902-1DB0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Voltage (VAC)

24V

Catalog No

3RV2902-1DB0

Delivery Date (Days)

1-2 days

Model Number

3RV2
