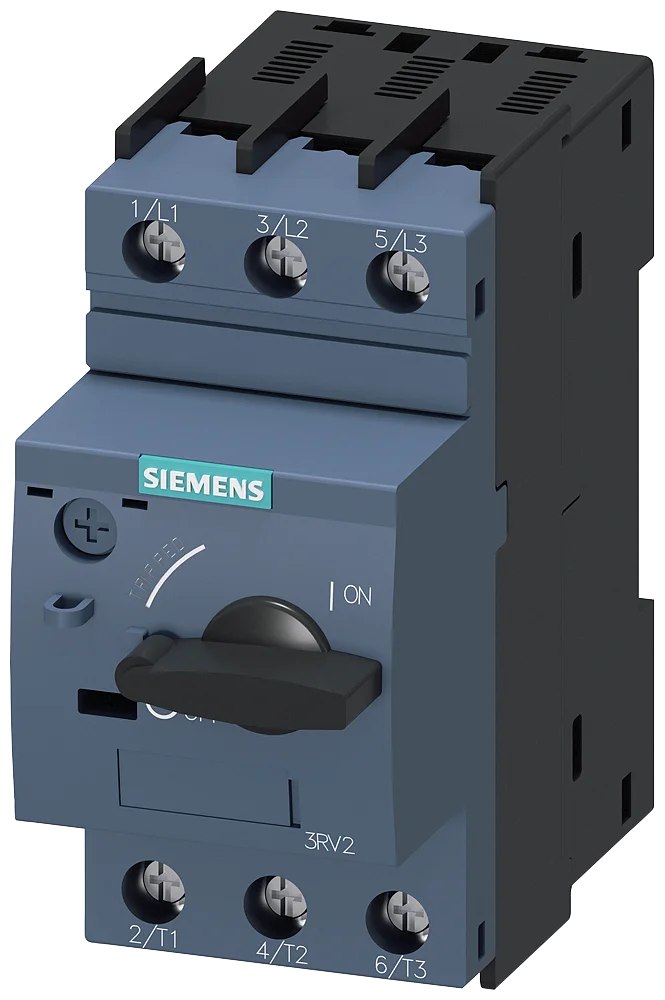

SIRIUS 3RV2The Siemens 3RV2011-1AA10 is a SIRIUS 3RV2 series motor starter protector in Size S00, combining thermal overload and short-circuit protection in a single device. Rated for a current range of 1.1–1.6 A with a 100 kA breaking capacity, it is suited for protecting low-power three-phase motors directly in the control panel without a separate overload relay.
| product brand name | SIRIUS |
|---|---|
| product designation | Circuit breaker |
| design of the product | For motor protection |
| product type designation | 3RV2 |
| Product equipment of circuit breaker for motor protection complete unit with protection device | Yes |
|---|---|
| size of the circuit-breaker | S00 |
| size of contactor can be combined company-specific | S00, S0 |
| product function disconnector functionality | Yes |
| product extension auxiliary switch | Yes |
| power loss [W] for rated value of the current: at AC in hot operating state | 7.25 W |
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation: in networks with ungrounded star point between main and auxiliary circuit | 400 V |
| protection class IP: on the front according to IEC 60529 | IP20 |
| protection class IP: on the front | IP20 |
| protection class IP: of the terminal | IP20 |
| shock resistance according to IEC 60068-2-27 | 25g / 11 ms |
| mechanical service life (operating cycles): of the main contacts typical | 100 000 |
| mechanical service life (operating cycles): of auxiliary contacts typical | 100 000 |
| electrical endurance (operating cycles) typical | 100 000 |
| reference code according to IEC 81346-2 | Q |
| continuous current rated value | 1.6 A |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| installation altitude at height above sea level maximum | 2 000 m |
|---|---|
| ambient temperature: during operation | -20 ... +60 °C |
| ambient temperature: during storage | -50 ... +80 °C |
| ambient temperature: during transport | -50 ... +80 °C |
| temperature compensation | -20 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
| Part number | 3RV2011-1AA10 |
|---|---|
| Type designation | 3RV2 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209712416 |
| ETIM class | EC000074 |
| eCl@ss | 27370401 |
| number of poles for main current circuit | 3 |
|---|---|
| adjustable current response value current of the current-dependent overload release | 1.1 ... 1.6 A |
| type of voltage for main current circuit | AC |
| operating voltage: rated value | 690 V |
| operating voltage: at AC-3 rated value maximum | 690 V |
| operating voltage: at AC-3e rated value maximum | 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 1.6 A |
| operational current: at AC-3 at 400 V rated value | 1.6 A |
| operational current: at AC-3e at 400 V rated value | 1.6 A |
| at AC-3: at 230 V rated value | 0.3 kW |
| at AC-3: at 400 V rated value | 0.55 kW |
| at AC-3: at 500 V rated value | 0.8 kW |
| at AC-3: at 690 V rated value | 1.1 kW |
| at AC-3e: at 230 V rated value | 0.3 kW |
| at AC-3e: at 400 V rated value | 0.55 kW |
| at AC-3e: at 500 V rated value | 0.8 kW |
| at AC-3e: at 690 V rated value | 1.1 kW |
| operating frequency: at AC-3 maximum | 15 1/h |
| operating frequency: at AC-3e maximum | 15 1/h |
| type of voltage for auxiliary and control circuit | AC/DC |
|---|---|
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| product function: ground fault detection | No |
|---|---|
| product function: phase failure detection | Yes |
| trip class | CLASS 10 |
| design of the overload release | thermal |
| protection function thermal overload protection (ANSI 49) | Yes |
| maximum short-circuit current breaking capacity (Icu): at AC at 240 V rated value | 100 kA |
| operating short-circuit current breaking capacity (Ics) at AC: at 240 V rated value | 100 kA |
| response value current of instantaneous short-circuit trip unit | 21 A |
| full-load current (FLA) for 3-phase AC motor: at 480 V rated value | 1.6 A |
|---|---|
| full-load current (FLA) for 3-phase AC motor: at 600 V rated value | 1.6 A |
| for single-phase AC motor: at 230 V rated value | 0.1 hp |
| for 3-phase AC motor: at 460/480 V rated value | 1 hp |
| for 3-phase AC motor: at 575/600 V rated value | 0.8 hp |
| UL File Number (CCN) | E47705 (NLRV, NLRV7), E156943 (NKJH, NKJH7) |
| product function short circuit protection | Yes |
|---|---|
| design of the short-circuit trip | magnetic |
| design of the fuse link for IT network for short-circuit protection of the main circuit: at 500 V | gL/gG 20 A |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| mounting position | any |
|---|---|
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mounting | Yes |
| height | 97 mm |
| width | 45 mm |
| depth | 97 mm |
| with side-by-side mounting: forwards | 0 mm |
| with side-by-side mounting: backwards | 0 mm |
| with side-by-side mounting: upwards | 50 mm |
| with side-by-side mounting: downwards | 50 mm |
| with side-by-side mounting: at the side | 0 mm |
| for grounded parts: forwards | 0 mm |
| for grounded parts: backwards | 0 mm |
| for grounded parts: upwards | 50 mm |
| for grounded parts: at the side | 30 mm |
| for grounded parts: downwards | 50 mm |
| for live parts: forwards | 0 mm |
| for live parts: backwards | 0 mm |
| for live parts: upwards | 50 mm |
| for live parts: downwards | 50 mm |
| for live parts: at the side | 30 mm |
| for grounded parts at 400 V: downwards | 30 mm |
| for grounded parts at 400 V: upwards | 30 mm |
| for grounded parts at 400 V: at the side | 9 mm |
| for live parts at 400 V: downwards | 30 mm |
| for live parts at 400 V: upwards | 30 mm |
| for live parts at 400 V: at the side | 9 mm |
| for grounded parts at 500 V: downwards | 30 mm |
| for grounded parts at 500 V: upwards | 30 mm |
| for grounded parts at 500 V: at the side | 9 mm |
| for live parts at 500 V: downwards | 30 mm |
| for live parts at 500 V: upwards | 30 mm |
| for live parts at 500 V: at the side | 9 mm |
| for grounded parts at 690 V: downwards | 50 mm |
| for grounded parts at 690 V: upwards | 50 mm |
| for grounded parts at 690 V: backwards | 0 mm |
| for grounded parts at 690 V: at the side | 30 mm |
| for grounded parts at 690 V: forwards | 0 mm |
| for live parts at 690 V: downwards | 50 mm |
| for live parts at 690 V: upwards | 50 mm |
| for live parts at 690 V: backwards | 0 mm |
| for live parts at 690 V: at the side | 30 mm |
| for live parts at 690 V: forwards | 0 mm |
| product component removable terminal for auxiliary and control circuit | No |
|---|---|
| type of electrical connection: for main current circuit | screw-type terminals |
| arrangement of electrical connectors for main current | Top and bottom |
| for main contacts: solid or stranded | 2x (0,75 ... 2,5 mm2), 2x 4 mm2 |
| for main contacts: finely stranded with core end processing | 2x (0.5 ... 1.5 mm2), 2x (0.75 ... 2.5 mm2) |
| for main contacts: for AWG cables for main contacts | 2x (18 ... 14), 2x 12 |
| connectable conductor cross-section for main contacts: solid or stranded | 0.75 ... 4 mm2 |
| connectable conductor cross-section for main contacts: finely stranded with core end processing | 0.5 ... 2.5 mm2 |
| AWG number as coded connectable conductor cross section for main contacts | 18 ... 12 |
| tightening torque: for main contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| design of screwdriver shaft | Diameter 5 to 6 mm |
| size of the screwdriver tip | Pozidriv size 2 |
| design of the thread of the connection screw: for main contacts | M3 |
| device type according to ISO 13849-1 | 3 |
|---|---|
| overdimensioning according to ISO 13849-2 necessary | Yes |
| safety device type according to IEC 61508-2 | Type A |
|---|---|
| T1 value: for proof test interval or service life according to IEC 61508 | 10 a |
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| display version for switching status | Handle |
|---|
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 1.98 kg |
|---|
| Net weight | 0.321 kg |
|---|---|
| Package dimensions | 105 × 104 × 50 mm |
| Country of origin | DE |
| Shipping weight | 0.821 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
