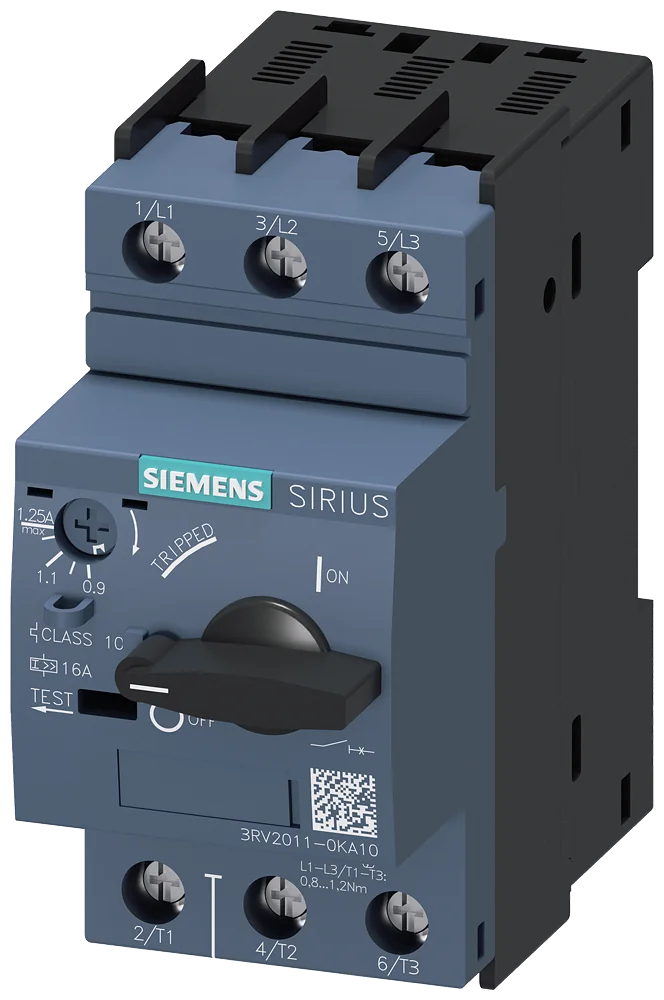

Siemens 3RV2011-0KA10 Motor Protection Circuit Breaker

Siemens 3RV2011-0KA10 3RV2 10A 3P 690V Motor Protection Circuit Breaker

Name: Siemens 3RV2011-0KA10 3RV2 10A 3P 690V Motor Protection Circuit Breaker
Brand: Siemens
SKU: 3RV2011-0KA10
Price: 47.13 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3RV2011-0KA10

Catalog No: 3RV2011-0KA10

Series: 3RV2

Rated Current: 10A

Rated Voltage: 690V

Poles: 3

Stock: 260

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$47.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3RV2011-0KA10 is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.9...1.25 A N-release 16 A screw terminal Standard switching capacity. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3RV2011-0KA10
Brand	Siemens
Series	3RV2
Product Type	Motor Protection Circuit Breaker
Size of the circuit-breaker	S00
Size of contactor can be combined company-specific	S00, S0
Product function disconnector functionality	Yes
Product extension auxiliary switch	Yes
At AC in hot operating state	7.25 W
At AC in hot operating state per pole	2.4 W
Type of calculation of power loss current-dependent	quadratic
Surge voltage resistance rated value	6 kV
On the front according to IEC 60529	IP20
On the front	IP20
Of the terminal	IP20
Shock resistance according to IEC 60068-2-27	25g / 11 ms
Of the main contacts typical	100 000
Of auxiliary contacts typical	100 000
Electrical endurance (operating cycles) typical	100 000
Continuous current rated value	1.25 A
Net Weight	344 g
Installation altitude at height above sea level maximum	2 000 m
Weight	0.344 kg
Country of Origin	DE

Certifications & Standards

EN 60715

Applications & Use Cases

The Siemens 3RV2011-0KA10 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

10A

Rated Voltage (VAC)

690V

Catalog No

3RV2011-0KA10

Number of Poles

Standards

EN 60715

Delivery Date (Days)

1-2 days

Model Number

3RV2
