Siemens 3RV2011-0JA10 3RV2 10A 3P 690V Motor Protection Circuit Breaker

% $-45.40

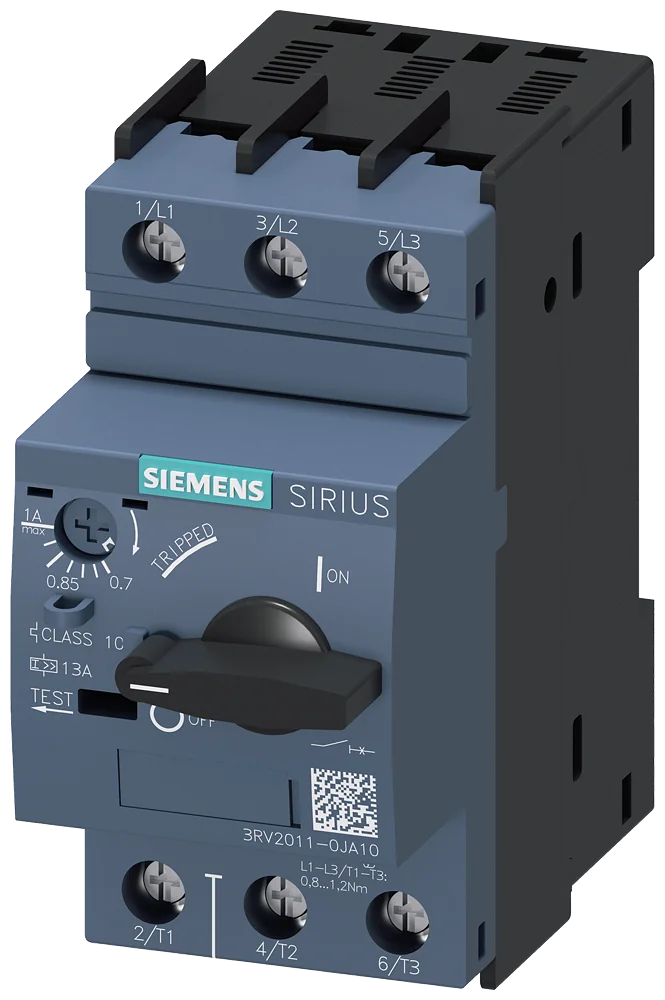

Siemens 3RV2011-0JA10 Motor Protection Circuit Breaker
Siemens 3RV2011-0JA10 Motor Protection Circuit Breaker

Siemens 3RV2011-0JA10 3RV2 10A 3P 690V Motor Protection Circuit Breaker

Brand: Siemens
Reference No: 3RV2011-0JA10
Catalog No: 3RV2011-0JA10
Series: 3RV2
Rated Current: 10A
Rated Voltage: 690V
Poles: 3
Stock: 432
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$45.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 3RV2011-0JA10 is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV2 series. Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.7...1 A N-release 13 A screw terminal Standard switching capacity. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU 3RV2011-0JA10
Brand Siemens
Series 3RV2
Product Type Motor Protection Circuit Breaker
Size of the circuit-breaker S00
Size of contactor can be combined company-specific S00, S0
Product function disconnector functionality Yes
Product extension auxiliary switch Yes
At AC in hot operating state 7.25 W
At AC in hot operating state per pole 2.4 W
Type of calculation of power loss current-dependent quadratic
Surge voltage resistance rated value 6 kV
On the front according to IEC 60529 IP20
On the front IP20
Of the terminal IP20
Shock resistance according to IEC 60068-2-27 25g / 11 ms
Of the main contacts typical 100 000
Of auxiliary contacts typical 100 000
Electrical endurance (operating cycles) typical 100 000
Continuous current rated value 1 A
Net Weight 341 g
Installation altitude at height above sea level maximum 2 000 m
Weight 0.341 kg
Country of Origin DE

Certifications & Standards

  • EN 60715

Applications & Use Cases

The Siemens 3RV2011-0JA10 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)
10A
Rated Voltage (VAC)
690V
Catalog No
3RV2011-0JA10
Number of Poles
3
Standards
EN 60715
Delivery Date (Days)
1-2 days
Model Number
3RV2
