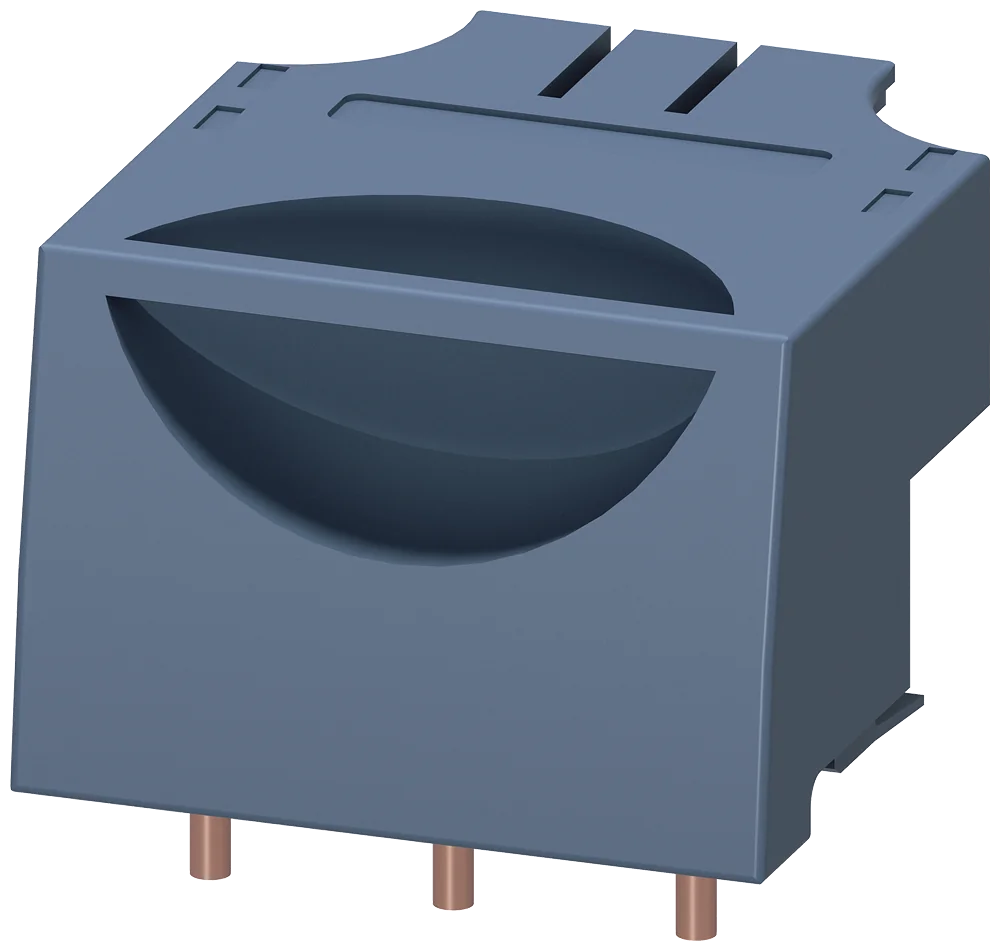

3RV1The Siemens 3RV1927-5AA00 is a motor protection circuit breaker from the SENTRON/SIRIUS 3RV1 series. Cable connector for circuit breaker frame size S0 with screw terminal (single-unit packaging). Supplied by Stoklink for industrial and commercial low-voltage applications.
The Siemens 3RV1927-5AA00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RV1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
| product brand name | SIRIUS |
|---|---|
| product category | Infeed systems |
| product designation | Connection plug |
| product type designation | 3RV19 |
| suitability for use | circuit-breakers 3RV2 |
| size of the circuit-breaker | S0 |
|---|---|
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1.6 W |
| type of calculation of power loss current-dependent | quadratic |
| protection class IP on the front according to IEC 60529 | IP20 |
| thermal current | 32 A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| number of poles for main current circuit | 3 |
| operating voltage at AC rated value | 690 V |
| operational current rated value | 32 A |
| operating voltage at AC according to UL rated value | 600 V |
|---|
| Part number | 3RV1927-5AA00 |
|---|---|
| Type designation | 3RV19 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209579088 |
| ETIM class | EC001531 |
| eCl@ss | 27370392 |
| protection class IP on the front according to IEC 60529 | IP20 |
|---|---|
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| short-circuit rating | see table in the operating instructions |
|---|
| type of electrical connection for main current circuit | plug-in without terminals |
|---|
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.313 kg |
|---|
| Net weight | 0.033 kg |
|---|---|
| Package dimensions | 61 × 48 × 85 mm |
| Country of origin | CZ |
| Shipping weight | 0.533 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 3RV19 is 32 A.
The rated operational voltage of 3RV19 is 690 V AC.
The EAN (GTIN) of 3RV19 is 4011209579088.
3RV19 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
