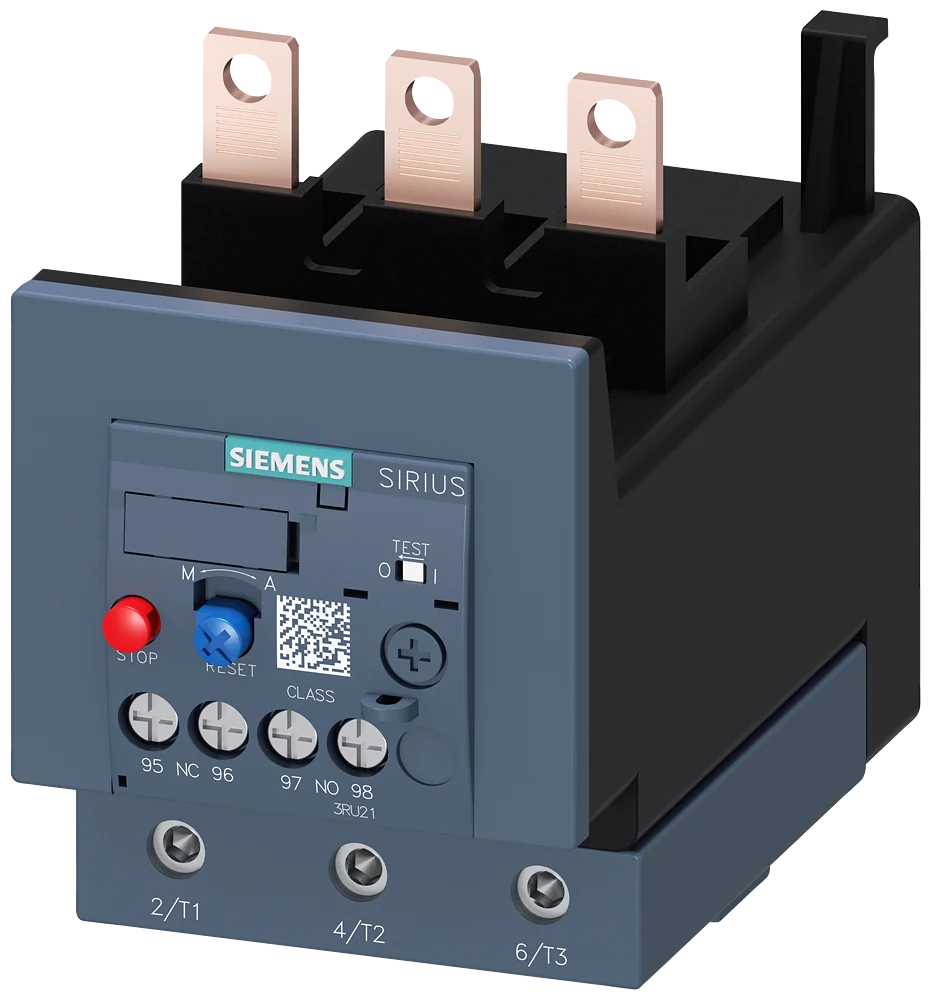

Siemens 3RU2146-4LB0 3RU2 70...90A 3P 1000V Thermal Overload Relay

Rated current
90 A
Rated operational voltage
1000 V AC
Poles
3P
EAN
4047621012919
Description

About the 3RU2

The Siemens 3RU2146-4LB0 is a thermal overload relay from the SENTRON/SIRIUS 3RU2 series. Overload relay 70...90 A Thermal For motor protection Size S3, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3RU2146-4LB0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RU2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

110 values · Last verified 31 Oct 2026

General 3

product brand name SIRIUS
product designation thermal overload relay
product type designation 3RU2

General technical data 14

size of overload relay S3
size of contactor can be combined company-specific S3
power loss [W] for rated value of the current at AC in hot 21 W
operating state: per pole 7 W
type of calculation of power loss current-dependent quadratic
insulation voltage with degree of pollution 3 at AC rated value 1 000 V
surge voltage resistance rated value 8 kV
maximum permissible voltage for protective separation: in networks with ungrounded star point between auxiliary and auxiliary circuit 440 V
shock resistance according to IEC 60068-2-27 8g / 11 ms
recovery time after overload trip: with automatic reset typical 10 min
recovery time after overload trip: with remote-reset 10 min
recovery time after overload trip: with manual reset 10 min
reference code according to IEC 81346-2 F
Substance Prohibitance (day/month/year) 03/01/2017

Ambient conditions 6

installation altitude at height above sea level maximum 2 000 m
ambient temperature: during operation -40 ... +70 °C
ambient temperature: during storage -55 ... +80 °C
ambient temperature: during transport -55 ... +80 °C
temperature compensation -40 ... +60 °C
relative humidity during operation 10 ... 95 %
Show all 110 specifications ↓ Show less ↑87 more values in Identification, Main circuit, Auxiliary circuit, Protective and monitoring functions, UL/CSA ratings, Short-circuit protection, Installation/ mounting/ dimensions, Connections/ Terminals, Safety related data, IEC 61508, Electrical Safety, Display, Approvals Certificates, Logistics.

Identification 10

Part number 3RU2146-4LB0
Type designation 3RU2
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621012919
ETIM class EC000106
eCl@ss 27371501

Main circuit 13

number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 70 ... 90 A
operating voltage: rated value 1 000 V
operating voltage: at AC-3e rated value maximum 1 000 V
operating frequency rated value 50 ... 60 Hz
operational current rated value 90 A
operational current at AC-3e at 400 V rated value 90 A
at AC-3: at 400 V rated value 45 kW
at AC-3: at 500 V rated value 55 kW
at AC-3: at 690 V rated value 75 kW
at AC-3e: at 400 V rated value 45 kW
at AC-3e: at 500 V rated value 55 kW
at AC-3e: at 690 V rated value 75 kW

Auxiliary circuit 19

design of the auxiliary switch integrated
number of NC contacts for auxiliary contacts 1
note for contactor disconnection
number of NO contacts for auxiliary contacts 1
number of CO contacts for auxiliary contacts 0
operational current of auxiliary contacts at AC-15: at 24 V 3 A
operational current of auxiliary contacts at AC-15: at 110 V 3 A
operational current of auxiliary contacts at AC-15: at 120 V 3 A
operational current of auxiliary contacts at AC-15: at 125 V 3 A
operational current of auxiliary contacts at AC-15: at 230 V 2 A
operational current of auxiliary contacts at AC-15: at 400 V 1 A
operational current of auxiliary contacts at AC-15: at 690 V 0.75 A
operational current of auxiliary contacts at DC-13: at 24 V 2 A
operational current of auxiliary contacts at DC-13: at 60 V 0.3 A
operational current of auxiliary contacts at DC-13: at 110 V 0.22 A
operational current of auxiliary contacts at DC-13: at 125 V 0.22 A
operational current of auxiliary contacts at DC-13: at 220 V 0.11 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary switch required 6A (SCC less than equal to 0.5 kA; U less than equal to 260V)
contact rating of auxiliary contacts according to UL B600 / R300

Protective and monitoring functions 2

trip class CLASS 10
design of the overload release thermal

UL/CSA ratings 2

full-load current (FLA) for 3-phase AC motor: at 480 V rated value 77 A
full-load current (FLA) for 3-phase AC motor: at 600 V rated value 77 A

Short-circuit protection 2

for short-circuit protection of the main circuit: with type of coordination 1 required 690 V: gG: 250 A; 1000 V: a.M. / g.B.: 160 A
for short-circuit protection of the main circuit: for short-circuit protection of the auxiliary switch required fuse gG: 6 A, quick: 10 A

Installation/ mounting/ dimensions 5

mounting position for mounting on contactors: with a vertical mounting plane +/-135° rotatable & +/- 22.5° tiltable, stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual
fastening method Contactor mounting
height 105 mm
width 70 mm
depth 125 mm

Connections/ Terminals 20

product component removable terminal for auxiliary and control circuit No
type of electrical connection: for main current circuit screw-type terminals
type of electrical connection: for auxiliary and control circuit screw-type terminals
arrangement of electrical connectors for main current Top and bottom
for main contacts: solid 2x (2.5 ... 16 mm2)
for main contacts: stranded 2x (6 ... 16 mm2), 2x (10 ... 50 mm2), 1x (10 ... 70 mm2)
for main contacts: solid or stranded 2x (2,5 ... 50 mm2), 1x (10 ... 70 mm2)
for main contacts: finely stranded with core end processing 2x (2.5 ... 35 mm2), 1x (2.5 ... 50 mm2)
for main contacts: for AWG cables for main contacts 2x (10 ... 1/0), 1x (10 ... 2/0)
for auxiliary contacts: solid or stranded 2x (0.5 ... 1.5 mm2), 2x (0.75 ... 2.5 mm2)
for auxiliary contacts: finely stranded with core end processing 2x (0.5 ... 1.5 mm2), 2x (0.75 ... 2.5 mm2)
for auxiliary contacts: for AWG cables for auxiliary contacts 2x (20 ... 16), 2x (18 ... 14)
tightening torque: for main contacts for ring cable lug 4.5 ... 6 N·m
outer diameter of the usable ring cable lug maximum 19 m
tightening torque: for main contacts with screw-type terminals 4.5 ... 6 N·m
tightening torque: for auxiliary contacts with screw-type terminals 0.8 ... 1.2 N·m
design of screwdriver shaft Hexagonal socket
size of the screwdriver tip 4 mm hexagon socket
design of the thread of the connection screw: for main contacts M8
design of the thread of the connection screw: of the auxiliary and control contacts M3

IEC 61508 1

T1 value: for proof test interval or service life according to IEC 61508 20 a

Electrical Safety 2

protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front

Display 1

display version for switching status Slide switch

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 3.09 kg

Logistics 7

Net weight 0.554 kg
Package dimensions 133 × 111 × 78 mm
Country of origin DE
Shipping weight 1.054 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 31 Oct 2026
