Part number
3RU2136-4JB1
Model no
3RU2
$104.75 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3RU2

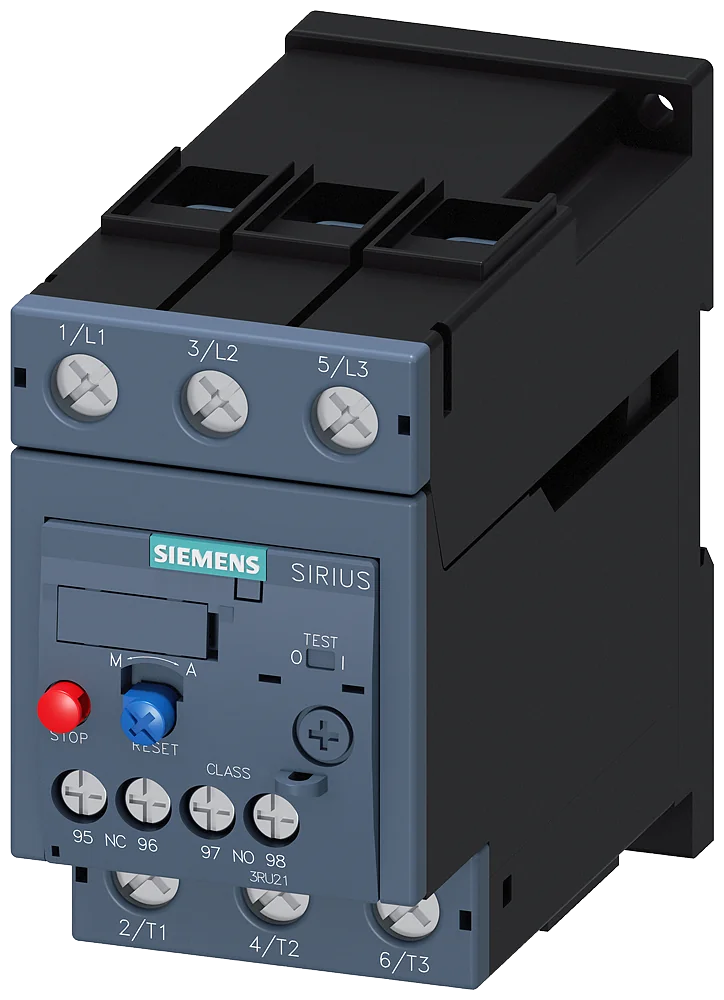

Siemens 3RU2136-4JB1 3RU2 54...65A 3P 690V Thermal Overload Relay

Rated current
65 A
Rated operational voltage
690 V AC
Poles
3P
EAN
4011209916838
Description

About the 3RU2

The Siemens 3RU2136-4JB1 is a thermal overload relay from the SENTRON/SIRIUS 3RU2 series. Overload relay 54...65 A Thermal For motor protection Size S2, Class 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3RU2136-4JB1 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RU2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

105 values · Last verified 31 Oct 2026

General 3

product brand name SIRIUS
product designation thermal overload relay
product type designation 3RU2

General technical data 14

size of overload relay S2
size of contactor can be combined company-specific S2
power loss [W] for rated value of the current at AC in hot 15.6 W
operating state: per pole 5.2 W
type of calculation of power loss current-dependent quadratic
insulation voltage with degree of pollution 3 at AC rated value 690 V
surge voltage resistance rated value 6 kV
maximum permissible voltage for protective separation: in networks with ungrounded star point between auxiliary and auxiliary circuit 415 V
shock resistance according to IEC 60068-2-27 8g / 11 ms
recovery time after overload trip: with automatic reset typical 10 min
recovery time after overload trip: with remote-reset 10 min
recovery time after overload trip: with manual reset 10 min
reference code according to IEC 81346-2 F
Substance Prohibitance (day/month/year) 10/15/2014

Ambient conditions 6

installation altitude at height above sea level maximum 2 000 m
ambient temperature: during operation -40 ... +70 °C
ambient temperature: during storage -55 ... +80 °C
ambient temperature: during transport -55 ... +80 °C
temperature compensation -40 ... +60 °C
relative humidity during operation 10 ... 95 %
Show all 105 specifications ↓ Show less ↑82 more values in Identification, Main circuit, Auxiliary circuit, Protective and monitoring functions, UL/CSA ratings, Short-circuit protection, Installation/ mounting/ dimensions, Connections/ Terminals, Safety related data, IEC 61508, Electrical Safety, Display, Approvals Certificates, Logistics.

Identification 10

Part number 3RU2136-4JB1
Type designation 3RU2
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209916838
ETIM class EC000106
eCl@ss 27371501

Main circuit 13

number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 54 ... 65 A
operating voltage: rated value 690 V
operating voltage: at AC-3e rated value maximum 690 V
operating frequency rated value 50 ... 60 Hz
operational current rated value 65 A
operational current at AC-3e at 400 V rated value 65 A
at AC-3: at 400 V rated value 30 kW
at AC-3: at 500 V rated value 45 kW
at AC-3: at 690 V rated value 55 kW
at AC-3e: at 400 V rated value 30 kW
at AC-3e: at 500 V rated value 45 kW
at AC-3e: at 690 V rated value 55 kW

Auxiliary circuit 19

design of the auxiliary switch integrated
number of NC contacts for auxiliary contacts 1
note for contactor disconnection
number of NO contacts for auxiliary contacts 1
number of CO contacts for auxiliary contacts 0
operational current of auxiliary contacts at AC-15: at 24 V 3 A
operational current of auxiliary contacts at AC-15: at 110 V 3 A
operational current of auxiliary contacts at AC-15: at 120 V 3 A
operational current of auxiliary contacts at AC-15: at 125 V 3 A
operational current of auxiliary contacts at AC-15: at 230 V 2 A
operational current of auxiliary contacts at AC-15: at 400 V 1 A
operational current of auxiliary contacts at AC-15: at 690 V 0.75 A
operational current of auxiliary contacts at DC-13: at 24 V 2 A
operational current of auxiliary contacts at DC-13: at 60 V 0.3 A
operational current of auxiliary contacts at DC-13: at 110 V 0.22 A
operational current of auxiliary contacts at DC-13: at 125 V 0.22 A
operational current of auxiliary contacts at DC-13: at 220 V 0.11 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary switch required 6A (SCC less than equal to 0.5 kA; U less than equal to 260V)
contact rating of auxiliary contacts according to UL B600 / R300

Protective and monitoring functions 2

trip class CLASS 10
design of the overload release thermal

UL/CSA ratings 2

full-load current (FLA) for 3-phase AC motor: at 480 V rated value 65 A
full-load current (FLA) for 3-phase AC motor: at 600 V rated value 65 A

Short-circuit protection 1

design of the fuse link: for short-circuit protection of the auxiliary switch required fuse gG: 6 A, quick: 10 A

Installation/ mounting/ dimensions 5

mounting position stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/- 45° tiltable; for more details see manual
fastening method stand-alone installation
height 105 mm
width 55 mm
depth 117 mm

Connections/ Terminals 16

product component removable terminal for auxiliary and control circuit No
type of electrical connection: for main current circuit screw-type terminals
type of electrical connection: for auxiliary and control circuit screw-type terminals
arrangement of electrical connectors for main current Top and bottom
for main contacts: solid or stranded 2x (1 ... 35 mm2), 1x (1 ... 50 mm2)
for main contacts: finely stranded with core end processing 2x (1 ... 25 mm2), 1x (1 ... 35 mm2)
for main contacts: for AWG cables for main contacts 2x (18 ... 2), 1x (18 ... 1)
for auxiliary contacts: solid or stranded 2x (0.5 ... 1.5 mm2), 2x (0.75 ... 2.5 mm2)
for auxiliary contacts: finely stranded with core end processing 2x (0.5 ... 1.5 mm2), 2x (0.75 ... 2.5 mm2)
for auxiliary contacts: for AWG cables for auxiliary contacts 2x (20 ... 16), 2x (18 ... 14)
tightening torque: for main contacts with screw-type terminals 3 ... 4.5 N·m
tightening torque: for auxiliary contacts with screw-type terminals 0.8 ... 1.2 N·m
design of screwdriver shaft Diameter 5 ... 6 mm
size of the screwdriver tip Pozidriv PZ 2
design of the thread of the connection screw: for main contacts M6
design of the thread of the connection screw: of the auxiliary and control contacts M3

IEC 61508 1

T1 value: for proof test interval or service life according to IEC 61508 20 a

Electrical Safety 2

protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front

Display 1

display version for switching status Slide switch

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 2.7 kg

Logistics 7

Net weight 0.482 kg
Package dimensions 122 × 61 × 124 mm
Country of origin DE
Shipping weight 0.982 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3RU2136-4JB1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3RU2

What is the rated current of 3RU2?

The rated current of 3RU2 is 65 A.

Which supply voltage is 3RU2 rated for?

The rated operational voltage of 3RU2 is 690 V AC.

What is the EAN of 3RU2?

The EAN (GTIN) of 3RU2 is 4011209916838.

Where does 3RU2 ship from, and how fast?

3RU2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
