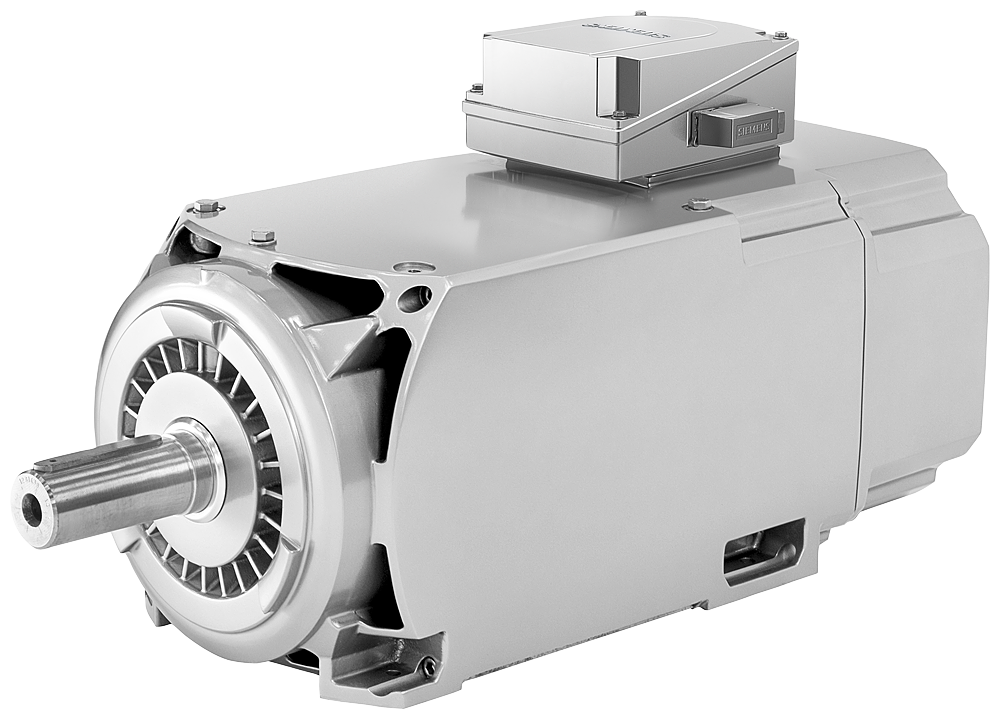

Siemens 1PH8288-1AD10-2BU2 SIMOTICS M-1PH8 Compact Asynchronous Motor 305 kW IP55
SIMOTICS M-1PH8 compact asynchronous motor, 226-305 kW, 1000-1350 rpm, IP55, forced ventilation, 280mm shaft height.
Description
About the 1PH8288-1AD10-2BU2
About the 1PH8288-1AD10-2BU2
The Siemens 1PH8288-1AD10-2BU2 is a SIMOTICS M-1PH8 compact asynchronous motor covering 1000-1350 rpm at up to 305 kW, with forced ventilation (NDE to DE) and an IP55 degree of protection. Shaft height is 280 mm, and the winding supports ratings from 226 kW at 335 V up to 305 kW at 450 V. It ships in Anthracite RAL 7016 with a Pt1000 temperature sensor and no encoder.
Selection Notes
This 1000-1350 rpm winding, run on the forced-ventilation (NDE to DE) frame, holds IP55 for installations exposed to washdown or dust where an open IP23 enclosure would not be suitable. Selecting the BLM/SLM connection yields 226 kW at 1000 rpm rising to 305 kW at 1350 rpm; the ALM connection instead delivers 260 kW at 1150 rpm with a 385 V supply. With a 280 mm shaft height and 63,000 kgcm2 rotor inertia, the 53-minute thermal time constant gives more margin for load fluctuations than the open-ventilated variant of this frame.
Specification
Full specification
General 15
| PN | MN / IN / UN |
|---|---|
| [kW] | [Nm] / [A] / [V] |
| ALM 400V | 260.0 / 2,160.0 / 495.0 / 385 |
| BLM/SLM 400V | 226.0 / 2,158.0 / 495.0 / 335 |
| Δ: ALM 480V | 305.0 / 1,942.0 / 455.0 / 500 |
| Δ: BLM/SLM 480V | 305.0 / 2,158.0 / 495.0 / 450 |
| fN | nN / Mmax / Imax / nmax / M0 / I0 / Iμ |
| [Hz] | [rpm] / [Nm] / [A] / [rpm] / [Nm] / [A] |
| η | cos φ / [A] |
| 38.6 | 1,150 / 6,350 / 1,300.0 / 3,300 / 2,160.0 / 495 / 0.964 / 0.820 / 253.0 |
| 33.6 | 1,000 / 6,350 / 1,300.0 / 3,300 / 2,158.0 / 495 / 0.962 / 0.820 / 252.0 |
| 50.3 | 1,500 / 6,350 / 1,300.0 / 3,300 / 2,158.0 / 455 / 0.965 / 0.800 / 253.0 |
| 45.3 | 1,350 / 6,350 / 1,300.0 / 3,300 / 2,158.0 / 495 / 0.965 / 0.820 / 251.0 |
| Max. power consumption | 3 AC 380 … 480 V (-5% / +10%) |
| 0.75 … 0.90 A | 50/60 Hz ±10% |
Mechanical data 12
| Motor type | Squirrel cage asynchronous motor |
|---|---|
| Shaft height | 280 |
| Cooling | Forced ventilation NDE -> DE |
| Vibration severity grade | R/A |
| Shaft and flange accuracy | R |
| Degree of protection | IP55 |
| Design acc. to Code I | IM B3 (IM V6) |
| Temperature monitoring | Pt1000 temperature sensor in th stator winding |
| Color | Standard (Anthracite RAL 7016) |
| Type of the bearing | Standard |
| Shaft end | Feather key with half key balan |
| Encoder system | Without encoder |
Physical constants 3
| Thermal time constant | 53 min |
|---|---|
| Moment of inertia | 63,000 kgcm² |
| Weight (approx.) | 1,650 kg |
Show all 48 specifications ↓ Show less ↑18 more values in Identification, Connection, Cooling data and sound pressure level, Logistics.
Identification 5
| Part number | 1PH8288-1AD10-2BU2 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
Connection 5
| Type of electrical connection | Terminal box |
|---|---|
| Position of the connection | NDE right |
| Power connection | below |
| Signal connection | DE |
| Terminal box designation | 1XB7700-P02 |
Cooling data and sound pressure level 4
| Airflow, min. | 0.42 m³/s |
|---|---|
| external fan operation 50 HZ rated | 74 dB 1) |
| Air discharge | radial |
| Pressure drop | 600 Pa |
Logistics 4
| Shipping weight | 1670.0 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
