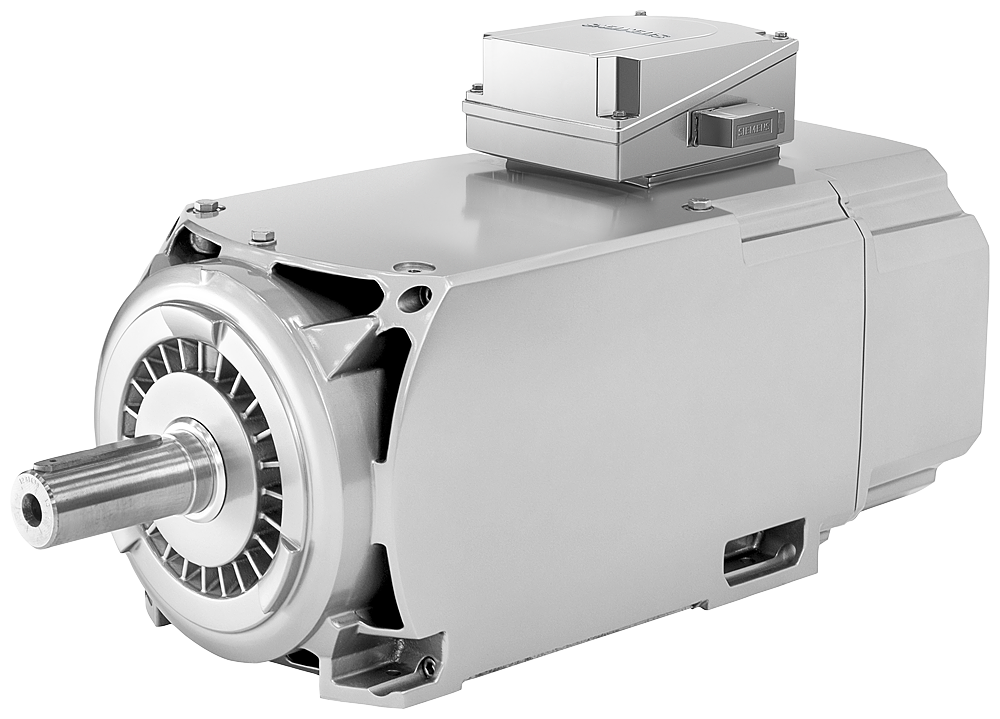

Siemens 1PH8286-1AF40-2BU2 SIMOTICS M-1PH8 Compact Asynchronous Motor 382kW 1500 r/min IP23
Siemens SIMOTICS M-1PH8 compact asynchronous motor, 382 kW at 1500 r/min, IP23, Pt1000 sensor, 280 mm shaft height.
Description
About the 1PH8286-1AF40-2BU2
About the 1PH8286-1AF40-2BU2
The Siemens 1PH8286-1AF40-2BU2 is a SIMOTICS M-1PH8 compact asynchronous motor rated 382 kW and 2432 Nm at 1500 r/min, extending to 500 kW at 2000 r/min in the field-weakening range. Built to IP23 with open-circuit ventilation, it has a 280 mm shaft height, carries a Pt1000 temperature sensor with no encoder, and weighs 1400 kg.
Selection Notes
The IP23 open-circuit ventilation on the 1PH8286-1AF40-2BU2 gives it a higher continuous rating in the 280 mm frame than a forced-ventilation IP55 winding, delivering 382 kW and 730 A at 1500 r/min, rising to 500 kW once the field-weakening range is reached on a 480 V supply. Its 20-minute thermal time constant is shorter than an IP55 sibling's, so it needs a cleaner cooling air path and leaves less margin against sustained overload. Pick the IP55 forced-ventilation version instead when the installation is dusty or exposed to washdown.
Specification
Full specification
General 15
| PN | MN / IN / UN |
|---|---|
| [kW] | [Nm] / [A] / [V] |
| ALM 400V | 445.0 / 2,429.0 / 730.0 / 400 |
| BLM/SLM 400V | 382.0 / 2,432.0 / 730.0 / 345 |
| Δ: ALM 480V | 475.0 / 2,062.0 / 620.0 / 500 |
| Δ: BLM/SLM 480V | 500.0 / 2,387.0 / 720.0 / 455 |
| fN | nN / Mmax / Imax / nmax / M0 / I0 / Iμ |
| [Hz] | [rpm] / [Nm] / [A] / [rpm] / [Nm] / [A] |
| η | cos φ / [A] |
| 58.9 | 1,750 / 4,500 / 1,360.0 / 3,300 / 2,429.0 / 730 / 0.962 / 0.920 / 178.0 |
| 50.6 | 1,500 / 4,500 / 1,360.0 / 3,300 / 2,432.0 / 730 / 0.959 / 0.920 / 177.0 |
| 73.8 | 2,200 / 4,500 / 1,360.0 / 3,300 / 2,432.0 / 620 / 0.966 / 0.910 / 180.0 |
| 67.2 | 2,000 / 4,500 / 1,360.0 / 3,300 / 2,387.0 / 720 / 0.963 / 0.920 / 178.0 |
| Max. power consumption | 3 AC 380 … 480 V (-5% / +10%) |
| 0.75 … 0.90 A | 50/60 Hz ±10% |
Mechanical data 12
| Motor type | Squirrel cage asynchronous motor |
|---|---|
| Shaft height | 280 |
| Cooling | Open circuit cooling NDE-> DE |
| Vibration severity grade | R/A |
| Shaft and flange accuracy | R |
| Degree of protection | IP23 |
| Design acc. to Code I | IM B3 (IM V6) |
| Temperature monitoring | Pt1000 temperature sensor in th stator winding |
| Color | Standard (Anthracite RAL 7016) |
| Type of the bearing | Standard |
| Shaft end | Feather key with half key balan |
| Encoder system | Without encoder |
Physical constants 3
| Thermal time constant | 20 min |
|---|---|
| Moment of inertia | 52,000 kgcm² |
| Weight (approx.) | 1,400 kg |
Show all 48 specifications ↓ Show less ↑18 more values in Identification, Connection, Cooling data and sound pressure level, Logistics.
Identification 5
| Part number | 1PH8286-1AF40-2BU2 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
Connection 5
| Type of electrical connection | Terminal box |
|---|---|
| Position of the connection | NDE right |
| Power connection | below |
| Signal connection | DE |
| Terminal box designation | 1XB7712-P03 |
Cooling data and sound pressure level 4
| Airflow, min. | 0.52 m³/s |
|---|---|
| external fan operation 50 HZ rated | 74 dB 1) |
| Air discharge | radial |
| Pressure drop | 600 Pa |
Logistics 4
| Shipping weight | 1420.0 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
