Siemens 1PH8284-1AD40-2BU2 SIMOTICS M-1PH8 Compact Asynchronous Motor 243kW 1000 r/min IP23

% $-39,137.43

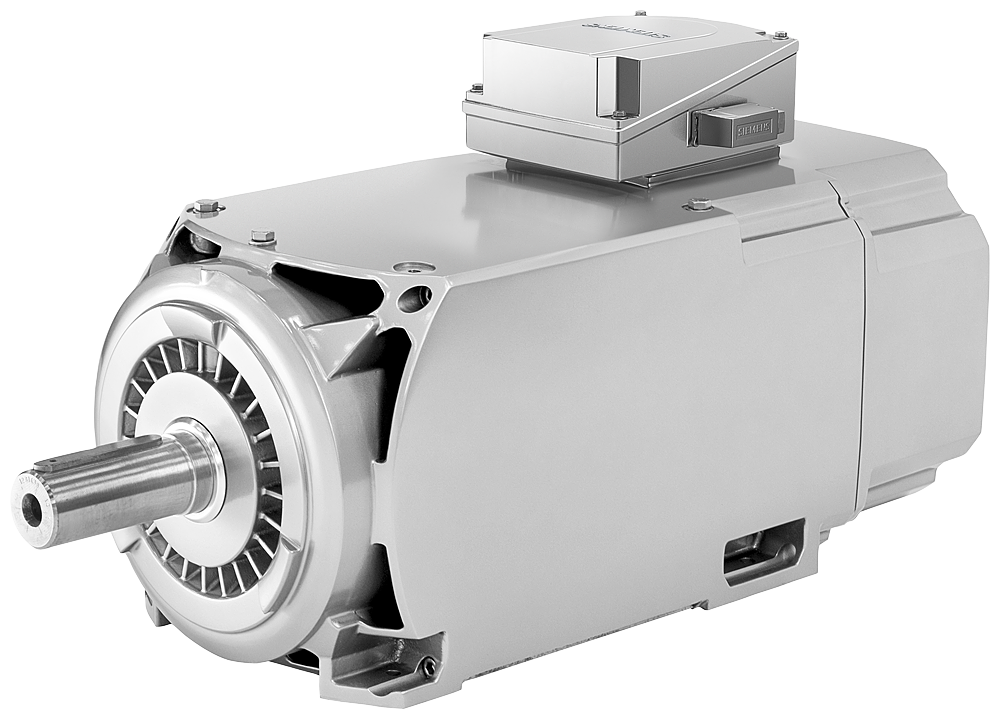

Siemens 1PH8284-1AD40-2BU2 SIMOTICS M-1PH8 compact asynchronous motor - 243 kW 1000 r/min
Siemens 1PH8284-1AD40-2BU2 SIMOTICS M-1PH8 compact asynchronous motor - 243 kW 1000 r/min

Siemens 1PH8284-1AD40-2BU2 SIMOTICS M-1PH8 Compact Asynchronous Motor 243kW 1000 r/min IP23

Brand: Siemens
Reference No: 1PH8284-1AD40-2BU2
Catalog No: 1PH8284-1AD40-2BU2
Series: SIMOTICS M-1PH8
Tariff Code (HS): 85015381
Rated Current: 490
Power: 243
Rated Voltage: 335
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$39,137.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 1PH8284-1AD40-2BU2 is a SIMOTICS M-1PH8 compact asynchronous motor rated 243 kW and 2321 Nm at 1000 r/min, extending to 325 kW at 1350 r/min in the field-weakening range. Built to IP23 with open-circuit ventilation, it has a 280 mm shaft height, carries a Pt1000 temperature sensor with no encoder, and weighs 1200 kg.

Technical Specifications

Catalog No 1PH8284-1AD40-2BU2
Brand Siemens
Series SIMOTICS M-1PH8
Product type Compact asynchronous motor
Shaft height 280 mm
Degree of protection IP23
Cooling Open-circuit ventilation
Mounting IM B3 (IMV6)
S1 rating (BLM/SLM) at 400V supply 1000 r/min, 243 kW, 2321 Nm, 490 A, 335 V
Field-weakening rating (ALM) at 400V supply 1150 r/min, 280 kW, 2325 Nm, 475 A, 400 V
S1 rating (BLM/SLM) at 480V supply 1350 r/min, 325 kW, 2299 Nm, 475 A, 460 V
Field-weakening rating (ALM) at 480V supply 325 kW, 2069 Nm, 440 A, 500 V
Encoder None (Pt1000 temperature sensor fitted)
Thermal time constant 18 min
Moment of inertia 42,000 kgcm2
Weight 1,200 kg
Terminal box designation 1XB7700-P02
Min. cooling air flow 0.52 m3/s
Noise level (external fan, 50 Hz) 74 dB
Pressure drop 600 Pa
Color Anthracite (RAL 7016)

Selection Notes

The IP23 open-circuit ventilation on the 1PH8284-1AD40-2BU2 gives it a higher continuous rating in the 280 mm frame than a forced-ventilation IP55 winding, delivering 243 kW and 2321 Nm at 1000 r/min, rising to 325 kW once the field-weakening range is reached on a 480 V supply. Its 18-minute thermal time constant is shorter than an IP55 sibling's, so it needs a cleaner cooling air path and leaves less margin against sustained overload. Pick the IP55 forced-ventilation version instead when the installation is dusty or exposed to washdown.

Technical Details

Short Description
Siemens SIMOTICS M-1PH8 compact asynchronous motor, 243 kW at 1000 r/min, IP23, Pt1000 sensor, 280 mm shaft height.
Rated Current (Ampere)
490
Rated Voltage (VAC)
335
Mounting Type
IM B3 (IMV6)
Protection Type
IP23
Catalog No
1PH8284-1AD40-2BU2
Power (kW)
243
Delivery Date (Days)
10-15 days
Model Number
1PH8284-1AD40-2BU2
Tariff Code
85015381
