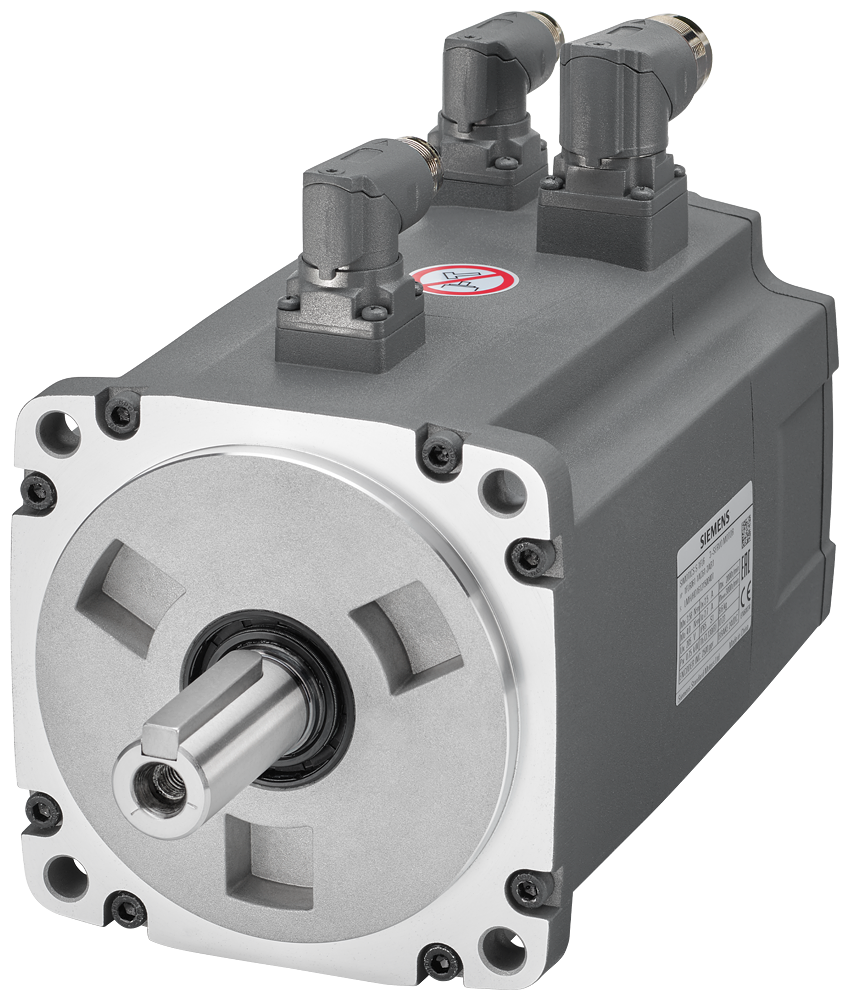

Siemens 1FL6067-1AC61-2AA1 SIMOTICS S-1FL6 400V 2kW 2000rpm Servo Motor

The Siemens 1FL6067-1AC61-2AA1 is a SIMOTICS S-1FL6 servo motor rated 2 kW at 2,000 rpm nominal speed, with 9.55 Nm rated torque and 28.7 Nm maximum torque at up to 3,000 rpm. It runs on 3 AC 400 V, uses a 2500 pulse-per-revolution incremental encoder, has IP65 protection with a sealing ring, and is compatible with SINAMICS V70 and V90 converters.

Technical Specifications

Selection Notes

The 2500 S/R TTL incremental encoder is not absolute, so position reference is lost on power-down and the axis needs a homing cycle at startup - an absolute-encoder variant is the pick if the application must reference without homing. This motor has no holding brake, so it will not hold position when de-energized; for vertical or overhauling loads, a brake-equipped variant of the same frame is the safer choice. IP65 with a sealing ring suits washdown or dusty environments without an added enclosure.

Applications

Closed-loop positioning axes with SINAMICS V70 or V90 servo drives, horizontal machine axes that don't require brake-hold on power-off, and washdown-rated or dust-exposed servo applications.
