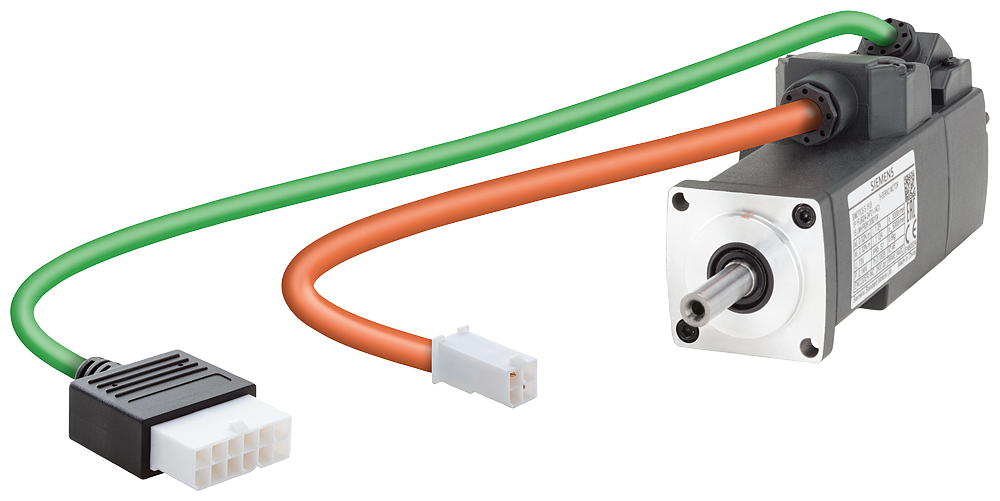

Siemens 1FL6022-2AF21-1AA1 SIMOTICS S-1FL6 Servo Motor 0.05 kW 230 V 3000 rpm IP65

The Siemens 1FL6022-2AF21-1AA1 is a SIMOTICS S-1FL6 three-phase servo motor rated at 0.05 kW continuous output power on a 230 V 3AC supply. It delivers a rated torque of 0.16 Nm at 3000 rpm from a 20 mm shaft height frame, with an IP65 sealing ring protecting against dust ingress and low-pressure water jets — making it suitable for washdown-adjacent environments where standard IP54 motors would not qualify.

Technical Specifications

Selection Notes

At 0.05 kW and M0 = 0.16 Nm, this is the smallest frame in the S-1FL6 family — purpose-built for light-duty positioning axes such as label applicators, small conveyor indexing stations, or pick-and-place wrist joints where axis inertia is low and drive cabinet space is constrained. The 2500-increment TTL encoder delivers positioning resolution adequate for most non-torque-ripple-critical applications without the added cost of a 20-bit absolute encoder variant; if absolute position retention across power cycles is required, step up to the -1LH or -2AH absolute encoder variants. Absence of a holding brake saves 60–80 g in this frame and simplifies V90 brake-control wiring, confirming this variant for horizontal or back-driven-safe axes only. The IP65 sealing ring — rather than the IP54 standard found on lower-suffix siblings — is the differentiating mechanical feature, allowing deployment in light-mist environments without additional motor enclosures.
