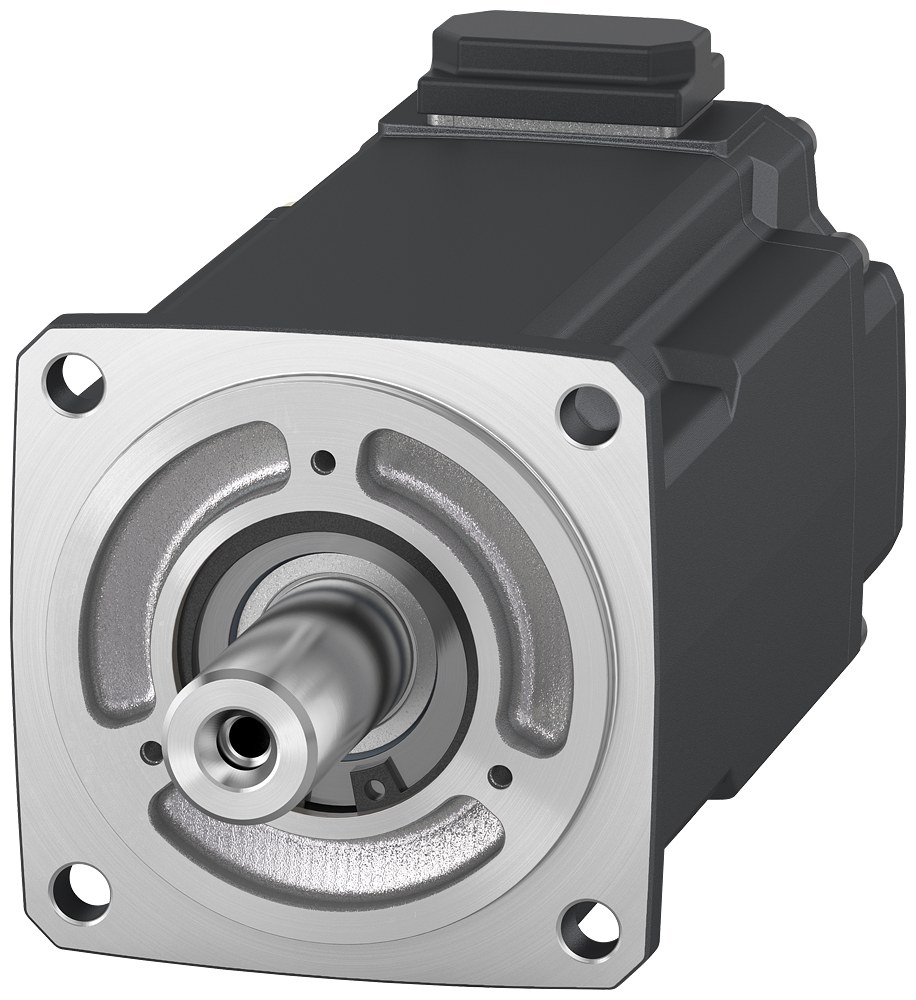

Siemens 1FL2204-4AG00-0HC0 SIMOTICS S-1FL2 200V 1.00kW Servo Motor

The Siemens 1FL2204-4AG00-0HC0 is a SIMOTICS S-1FL2 servo motor for 200 V 3AC supply, rated 3.20 Nm / 1.00 kW at 3,000 rpm with 4.40 A rated current, a 40 mm shaft-height frame, and a 17-bit absolute single-turn encoder for use with a SINAMICS S200 drive. Maximum output is 11.30 Nm at 16.0 A, with IP54 protection and no shaft oil seal.

Technical Specifications

Selection Notes

At 40 mm shaft height and 3.20 Nm rated torque, this is the largest-frame motor among the S-1FL2 units covered here, roughly 2.5 times the rated torque of the 30 mm shaft-height 0.4 kW-class motors, for axes that need more continuous torque without moving to a different drive family. It runs on 200 V 3AC input rather than 400 V, so check that the SINAMICS S200 drive's input voltage configuration matches before pairing them. No holding brake and IP54 protection without an oil seal keep it suited to enclosed, dry-cabinet installations.

Applications

Fits single-axis motion with moderate torque demand, such as larger conveyor drives, indexing turntables, and material-handling axes, on a 200 V SINAMICS S200 system where the smaller 30 mm shaft-height S-1FL2 motors don't provide enough continuous torque.
