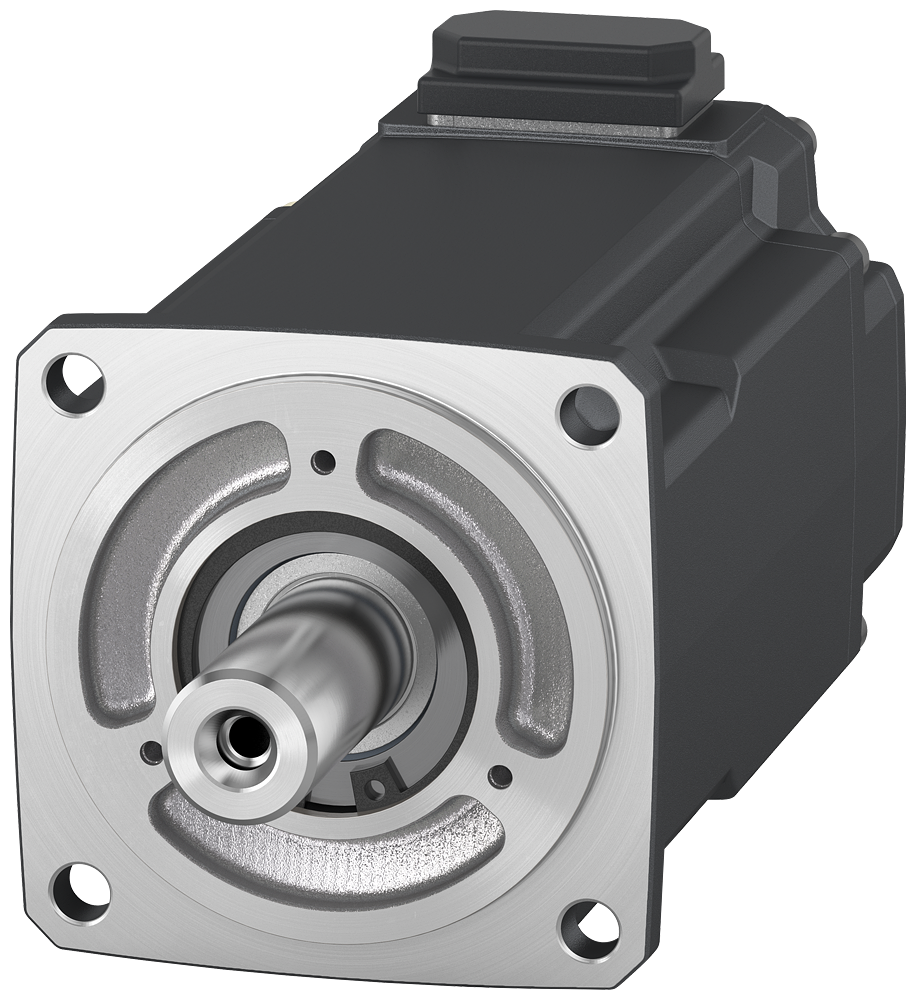

Siemens 1FL2204-2AG00-0HC0 SIMOTICS S-1FL2 Servomotor 0.75kW 3000rpm 200V Servo Motor

The Siemens 1FL2204-2AG00-0HC0 is a SIMOTICS S-1FL2 servo motor rated 0.75 kW at 3,000 rpm, delivering 2.4 Nm rated torque from a 200 V 3AC supply. It pairs with the SINAMICS S200 drive and carries a 17-bit absolute singleturn encoder on a hybrid connector. The plain shaft ships without a holding brake, in IP54 protection without an oil seal.

Technical Specifications

Selection Notes

The 40 mm shaft height is the largest frame in this 1FL2 group, built for axes that need more than 2 Nm continuous torque. Static and rated torque are equal at 2.40 Nm, so holding load matches running load, with a 7.50 Nm peak for acceleration. Rated current of 4.40 A against a 14.20 A peak gives over 3x headroom on the SINAMICS S200 current loop for demanding move profiles. The 81 mm flange and 19 mm shaft diameter mark this as the frame for higher-inertia loads; the rotor moment of inertia of 1.23 kgcm2 is roughly 3.5x the 30 mm frame, better matched to loads with higher reflected inertia. Smaller shaft-height siblings in this series cover lighter axes at proportionally lower torque.

Applications

Natural cooling and IP54 protection without an oil seal fit panel-mounted or lightly enclosed installations rather than washdown areas. The 2.40 Nm rated torque suits heavier conveyor drives, rotary tables, and feed axes on a SINAMICS S200 single-axis system where the smaller 1FL2 frames run out of torque margin.
