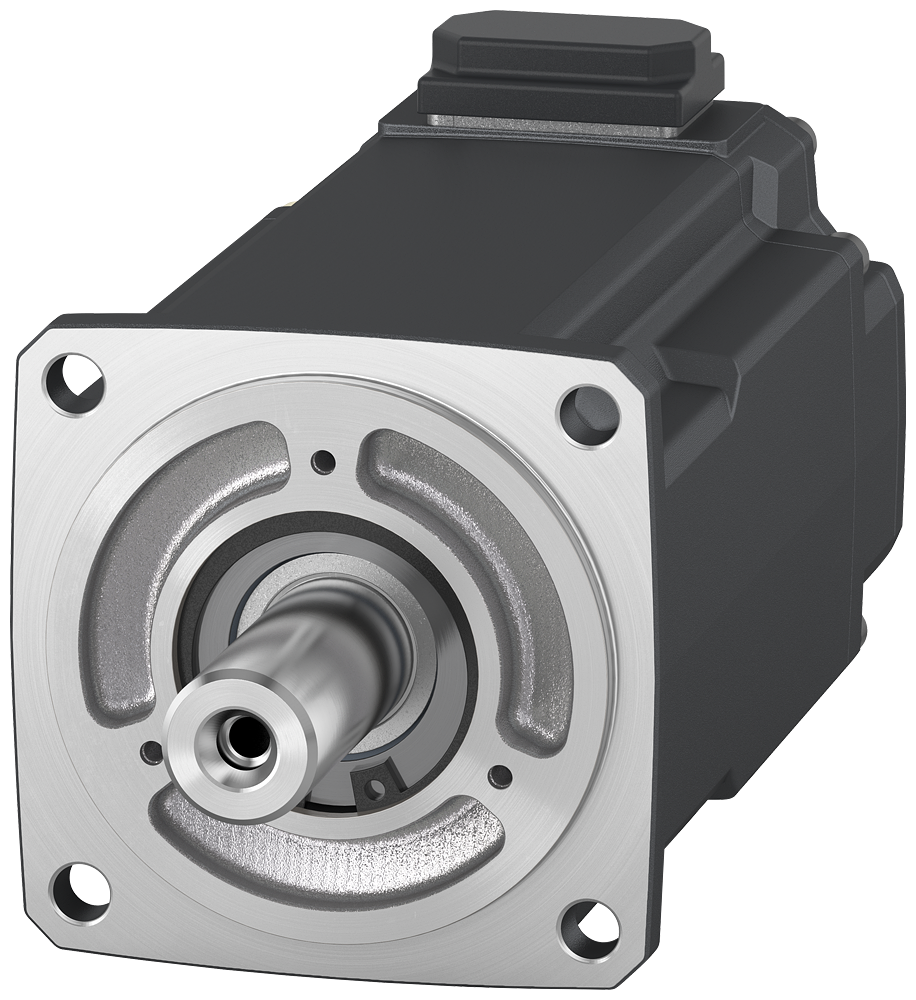

Siemens 1FL2204-2AF00-0HC0 SIMOTICS S-1FL2 0.75kW 3000rpm 2.4Nm Servo Motor

The Siemens SIMOTICS S-1FL2 (1FL2204-2AF00-0HC0) is a 400 V 3AC servo motor rated for 0.75 kW at 3000 rpm, delivering 2.4 Nm rated torque and 2.25 A rated current with a 40 mm shaft height. It carries a 17-bit singleturn absolute encoder, hybrid connector, plain shaft, and IP54 protection for pairing with a matching SINAMICS S200 drive.

Technical Specifications

Selection Notes

At 2.4 Nm rated / 7.5 Nm maximum torque and a 40 mm shaft height, this is the compact end of the S-1FL2 line, suited to light-duty axes rather than the 90 mm-frame motors built for multi-kW loads. Maximum torque runs at roughly 3.1x the rated value, which is the headroom available for acceleration and short-duration peaks before the drive's current limit intervenes. The plain shaft (no built-in brake) means a vertical axis needs an external holding brake or counterbalance to prevent drift when the drive de-energizes. IP54 without an oil seal is adequate for a clean cabinet or covered machine interior, not for washdown or direct coolant spray.

Applications

Light-duty single-axis motion such as small pick-and-place arms, labeling heads, and feed axes on packaging or assembly equipment, driven by a matching SINAMICS S200 servo drive.
