Siemens 1FL2102-2AG00-0HC0 SIMOTICS S-1FL2 50W 200V 3000 rpm Servo Motor

% $-380.38

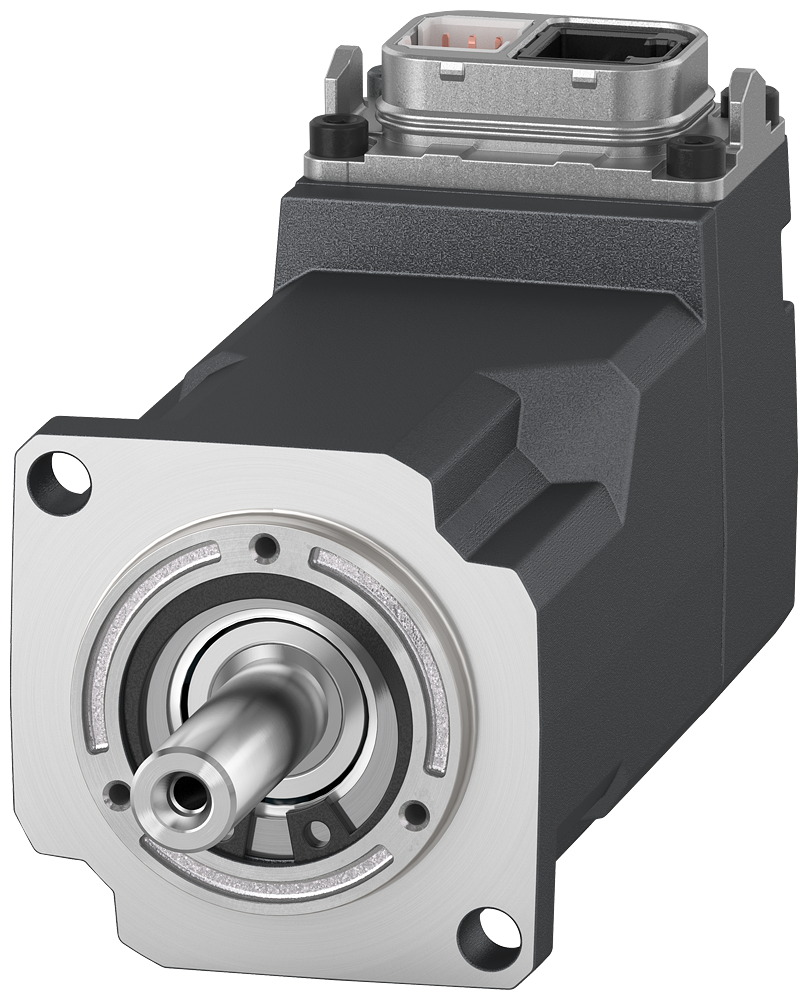

Siemens 1FL2102-2AG00-0HC0 1FL2 Servo Motor - 0.16 Nm 200V 3AC
Siemens 1FL2102-2AG00-0HC0 1FL2 Servo Motor - 0.16 Nm 200V 3AC

Siemens 1FL2102-2AG00-0HC0 SIMOTICS S-1FL2 50W 200V 3000 rpm Servo Motor

Brand: Siemens
Reference No: 1FL2102-2AG00-0HC0
Catalog No: 1FL2102-2AG00-0HC0
Series: SIMOTICS S-1FL2
Tariff Code (HS): 85015100
Rated Current: 0.81 A
Power: 0.05 kW
Rated Voltage: 200 V
Communication: Hybrid connector (power + encoder)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$380.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 1FL2102-2AG00-0HC0 is a SIMOTICS S-1FL2 synchronous servo motor for a 200 V 3AC supply, rated at 0.05 kW with 0.16 Nm rated and standstill torque at 3000 rpm. It has a 20 mm shaft height, a hybrid connector, a 17-bit absolute single-turn encoder, IP54 protection without an oil seal, no holding brake, and is matched to the SINAMICS S200 drive.

Technical Specifications

SKU 1FL2102-2AG00-0HC0
Brand Siemens
Series SIMOTICS S-1FL2
Product Designation 1FL2
Matching Drive SINAMICS S200
Supply Voltage 200 V 3AC
Rated Power 0.05 kW
Rated Torque 0.16 Nm
Static Torque 0.16 Nm
Maximum Torque 0.56 Nm
Rated Current 0.81 A
Static Current 0.81 A
Maximum Current 3.10 A
Rated Speed 3000 rpm
Maximum Speed 6500 rpm
Rotor Moment of Inertia 0.0170 kgcm2
Encoder Absolute, single-turn, 17-bit, hybrid connector (AS17bit)
Shaft Height 20 mm
Shaft Type Plain shaft, tolerance N
Degree of Protection IP54, without oil seal
Holding Brake Without
Cooling Natural cooling
Weight 0.29 kg
Flange Size (AB) 40.6 mm
Centering Ring (N) 30 mm
Hole Circle (M) 46 mm
Screw-on Hole (S) 4.4 mm
Overall Length (LB) 67.2 mm
Shaft Diameter (D) 8 mm
Shaft Length (E) 25 mm
Flange Diagonal Length (P) 54 mm
EAN 4034106447779

Selection Notes

At 0.05 kW and 0.16 Nm, this is the lower-power winding in the 1FL2102 shaft-height-20 frame, matched specifically to the SINAMICS S200 drive per the catalog data. The plain shaft with no brake means the drive must hold the axis at standstill; where the axis must stay parked with drive power removed, a holding-brake variant in the same frame is the better fit. Its 6500 rpm maximum speed against a 3000 rpm rated speed leaves headroom for short-duration overspeed moves in indexing or pick-and-place cycles.

Technical Details

Short Description
Siemens 1FL2 servo motor, 200V 3AC, 0.16 Nm, 0.05 kW, 3000 rpm, IP54, 17-bit absolute encoder, for SINAMICS S200.
Rated Current (Ampere)
0.81 A
Rated Voltage (VAC)
200 V
Protection Type
IP54 (without oil seal)
Catalog No
1FL2102-2AG00-0HC0
Power (kW)
0.05 kW
Delivery Date (Days)
10-15 days
Model Number
1FL2102-2AG00-0HC0
Tariff Code
85015100
