Part number
ZBRM22
Model no
ZBRM
$41.75 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5R

Schneider Electric ZBRM22 Harmony XB5R Empty Handy Box 2 Cut-Out Green Polycarbonate Control Station

Harmony XB5R empty handy box, 2 cut-out, green polycarbonate, IP65.

Range of Product
Harmony XB5R
Product or Component Type
Empty handy box
Device short name
ZBRM
Product destination
For XB5R Ø 22 mm control units
Control station application
Two functions
EAN
3606480673542
Description

About the ZBRM

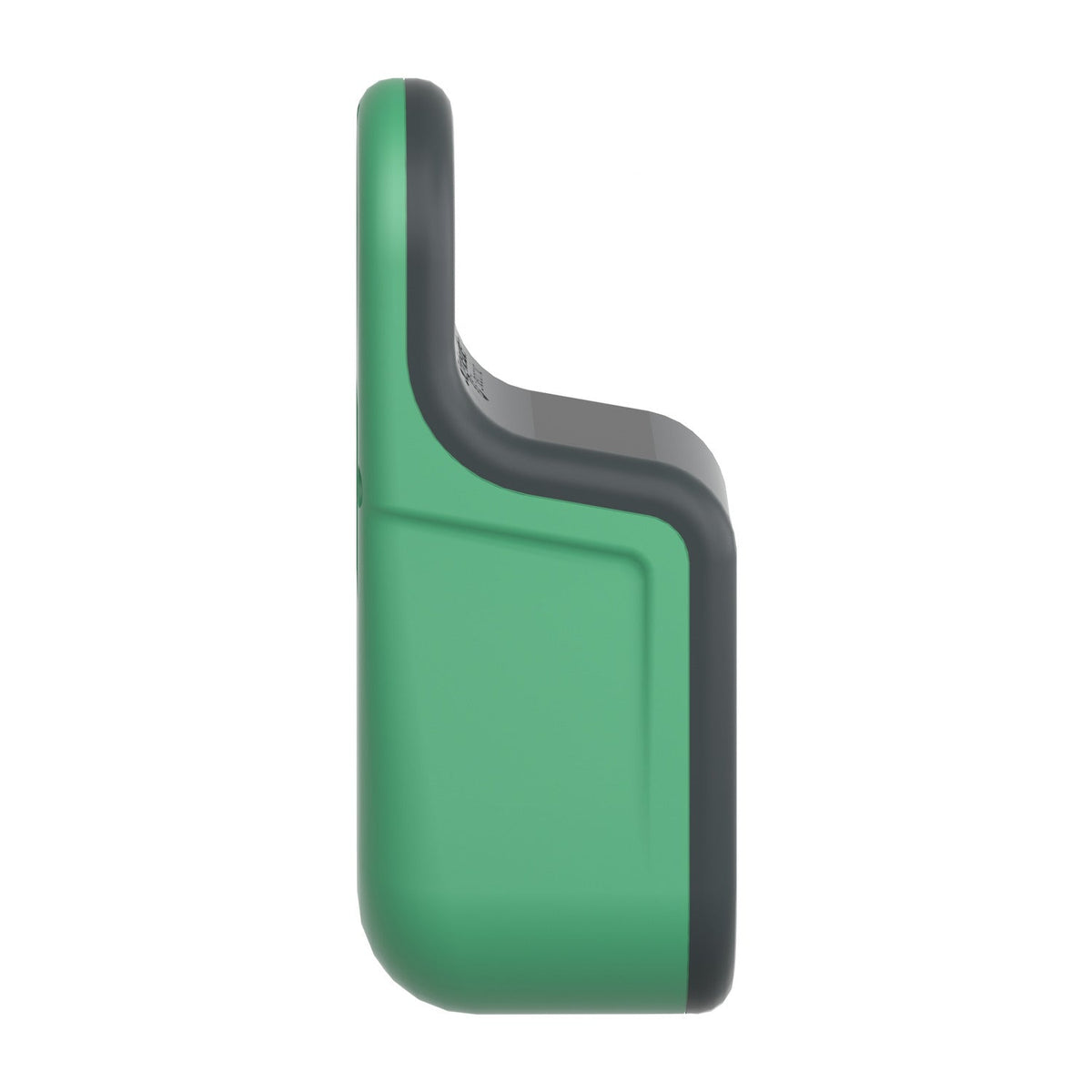

The Schneider Electric ZBRM22 is an empty Harmony XB5R handy box with 2 cut-out(s) for 22 mm control units, moulded in green polycarbonate with a dark grey cover. It is the mobile enclosure that turns loose ZB5RTA wireless pushbuttons into a hand-held or vehicle-mounted station.

Certifications & Standards

  • CE
  • FCC
  • ANATEL
  • C-tick
  • SRRC
  • GOST
  • ETSI EN 301 489-1
  • ETSI EN 300 440-1
  • IEC 60947-5-1

Selection Notes

This is an empty shell — order 2 ZB5RTA wireless and batteryless push button(s) separately to populate the cut-out(s). The 2-cut-out body suits two-button pendant stations, such as a start/stop or up/down control, and the IP65/IK03 enclosure is rated for mobile and outdoor use up to 55 °C.

Specification

Full specification

30 values · Last verified 30 Oct 2026

Main 5

Range of Product Harmony XB5R
Product or Component Type Empty handy box
Device short name ZBRM
Product destination For XB5R Ø 22 mm control units
Control station application Two functions

Complementary 4

Colour of base of enclosure Green Pantone 355C)
Colour of cover Dark grey RAL 7016)
Material Polycarbonate
Net Weight 0.24 lb(US) (0.11 kg)

Environment 7

Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…131 °F (-25…55 °C)
IP degree of protection IP65 IEC 60529
IK degree of protection IK03 conforming to IEC 62262
Standards ETSI EN 301 489-3, ETSI EN 301 489-1, ETSI EN 300 440-2, UL 508, CSA C22.2 No 14, ETSI EN 300 440-1, IEC 60947-5-1
Product Certifications FCC, C-tick, CE, ANATEL, SRRC, BT 2006/95/EC, GOST, RSS
Directives 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
Show all 30 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ZBRM22
Type designation ZBRM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480673542

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin HU
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ZBRM22

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • ETSI EN 301 489-3
  • ETSI EN 301 489-1
  • ETSI EN 300 440-2
  • UL 508
  • CSA C22.2 No 14
  • ETSI EN 300 440-1
  • IEC 60947-5-1
Quick answers

Questions about the ZBRM

What is the HS code of ZBRM for customs?

The tariff (HS) code on file for ZBRM is 853650.

What is the EAN of ZBRM?

The EAN (GTIN) of ZBRM is 3606480673542.

Where does ZBRM ship from, and how fast?

ZBRM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
