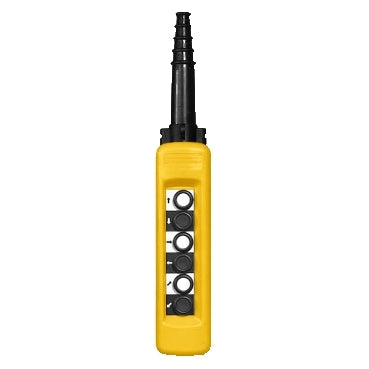

Schneider Electric XACA671 Harmony XAC

Enhance control, safety, and visibility in your industrial operations with the Schneider Electric XACA871 pendant control station, part of the trusted Harmony XAC product line. Designed for demanding environments, this pendant station delivers reliable performance for hoists, cranes, and material handling systems.

Key Features & Benefits

• 8 Push-Button Operation
  The XACA871 features eight push-buttons for intuitive control: seven “normally open” (NO) buttons for most functions, and one “normally closed” (NC) button for the eighth direction.

• Mechanical Interlocking Between Button Pairs
  Ensures safe usage by preventing conflicting operations (e.g., raise + lower simultaneously).

• Durable, High-Visibility Enclosure
  Built using yellow polypropylene material. The enclosure is impact-resistant and easy to see in harsh industrial environments.

• High Protection & Robustness
  Rated IP65 for protection against dust and water ingress. Also meets IK08 shock resistance. Rated for 1,000,000 mechanical cycles.

• Wide Environmental Operating Range
  Designed to operate in temperatures from –25 °C to +70 °C. Storage range expands further.

• Reliable Contact Blocks & Wiring
  Uses ZB2BE101 contact blocks (for NO functions) and ZB2BE102 for the NC button. Includes screw clamp terminals compatible with cable sections from 0.5 mm² up to 2.5 mm², depending on configuration.

• Designed for Hoisting / Reversing Motor Control
  Intended for single-speed hoist motor control with directional push-button commands (raise, lower, forward, reverse, etc.).

Technical Specifications

Applications

• Crane, hoist, and lifting equipment control (single-speed motors)

• Directional control in industrial machinery (raise/lower, forward/reverse, etc.)

• Material handling systems in harsh or outdoor environments where water- and dust-resistance are required

• Replacement or upgrade of pendant stations in industrial settings, especially where safety, visibility, and durability matter
