- Part number
- ZBRM21
- Model no
- ZBRM
Description
About the ZBRM
About the ZBRM

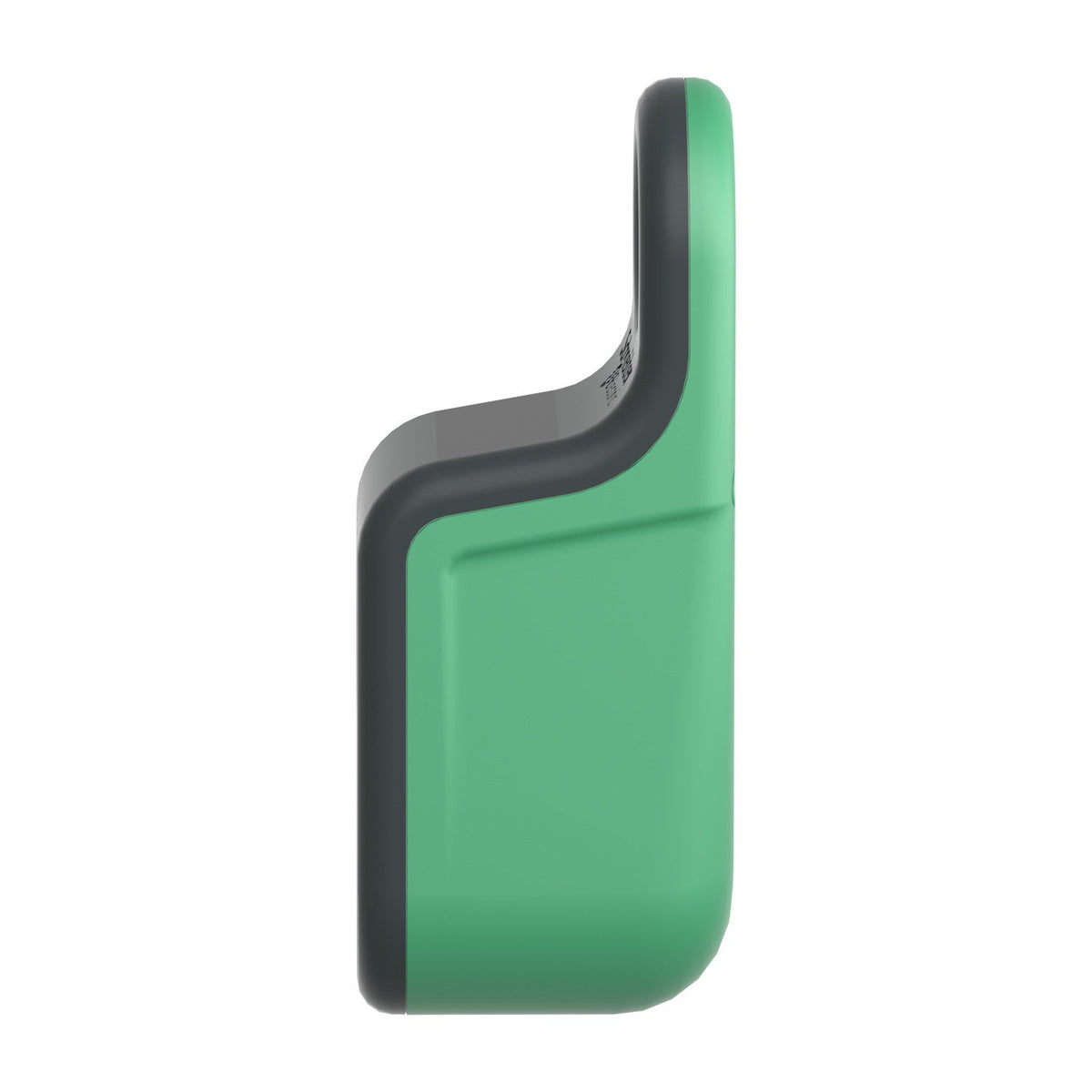

The Schneider Electric ZBRM21 is an empty Harmony XB5R handy box with 1 cut-out(s) for 22 mm control units, moulded in green polycarbonate with a dark grey cover. It is the mobile enclosure that turns loose ZB5RTA wireless pushbuttons into a hand-held or vehicle-mounted station.
Certifications & Standards
- CE
- FCC
- ANATEL
- C-tick
- SRRC
- GOST
- ETSI EN 301 489-1
- ETSI EN 300 440-1
- IEC 60947-5-1
Selection Notes
This is an empty shell — order 1 ZB5RTA wireless and batteryless push button(s) separately to populate the cut-out(s). The 1-cut-out body suits a single pendant function, and the IP65/IK03 enclosure is rated for mobile and outdoor use up to 55 °C.
Specification
Full specification
Main 5
| Range of Product | Harmony XB5R |
|---|---|
| Product or Component Type | Empty handy box |
| Device short name | ZBRM |
| Product destination | For XB5R Ø 22 mm control units |
| Control station application | One function |
Complementary 4
| Colour of base of enclosure | Green Pantone 355C) |
|---|---|
| Colour of cover | Dark grey RAL 7016) |
| Material | Polycarbonate |
| Net Weight | 0.24 lb(US) (0.11 kg) |
Environment 7
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| IP degree of protection | IP65 IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Standards | CSA C22.2 No 14, ETSI EN 301 489-1, ETSI EN 300 440-2, ETSI EN 300 440-1, IEC 60947-5-1, ETSI EN 301 489-3, UL 508 |
| Product Certifications | ANATEL, BT 2006/95/EC, CE, FCC, C-tick, SRRC, RSS, GOST |
| Directives | 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
Show all 30 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZBRM21 |
|---|---|
| Type designation | ZBRM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480673535 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | HU |
|---|---|
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZBRM21
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA C22.2 No 14
- ETSI EN 301 489-1
- ETSI EN 300 440-2
- ETSI EN 300 440-1
- IEC 60947-5-1
- ETSI EN 301 489-3
- UL 508
Quick answers
Questions about the ZBRM
What is the HS code of ZBRM for customs?
The tariff (HS) code on file for ZBRM is 853650.
What is the EAN of ZBRM?
The EAN (GTIN) of ZBRM is 3606480673535.
Where does ZBRM ship from, and how fast?
ZBRM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Schneider Electric Harmony XB5R
- Brand
- Schneider Electric
- Series
- Harmony XB5R
