Schneider Electric ZB5AV01 Harmony XB5 Pilot Light Head - White BA9s

Schneider Electric ZB5AV01 Harmony XB5 Pilot Light Head Plastic White 22 mm Plain Lens BA9s Pilot Light

Name: Schneider Electric ZB5AV01 Harmony XB5 Pilot Light Head Plastic White 22 mm Plain Lens BA9s Pilot Light
Brand: Schneider Electric
SKU: ZB5AV01
Price: 3.09 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: ZB5AV01

Catalog No: ZB5AV01

Series: Harmony XB5

Tariff Code (HS): 853661

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$3.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

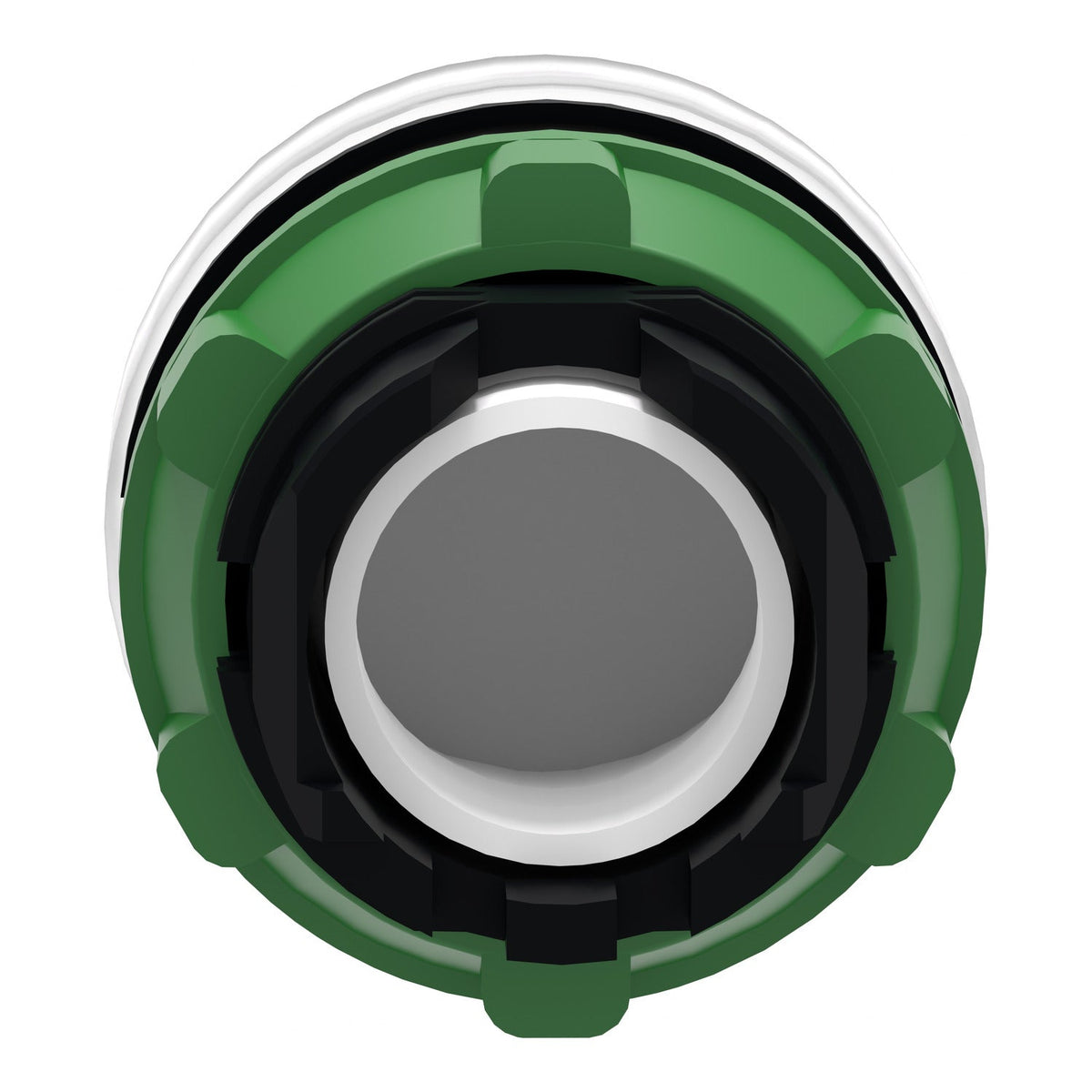

The Schneider Electric ZB5AV01 is a Harmony XB5 pilot light head molded in dark grey plastic with a white plain lens and a BA9s bulb base. The bulb is sold separately, and the head mounts in a standard 22 mm cutout, completing an indicator once paired with a compatible XB5 light-block body.

Technical Specifications

Reference	ZB5AV01
GTIN	3389110908053
Brand	Schneider Electric
Range	Harmony XB5
Product or Component Type	Head for pilot light
Product Compatibility	BA9s
Device Short Name	ZB5
Bezel Material	Dark grey plastic
Mounting Diameter	22 mm
Head Type	Standard
Shape of Signaling Unit Head	Round
Lens Colour	White
Operator Additional Information	With plain lens
Overall Dimensions (W x H x D)	29 x 29 x 31 mm
Net Weight	0.018 kg
IP Degree of Protection	IP66, IP67, IP69, IP69K
Enclosure Type	UL Type 4X/13
IK Degree of Protection	IK05 (IEC 50102)
Overvoltage Category	Class II (IEC 60536)
Ambient Air Temperature (Storage / Operation)	-40...70 C

Certifications & Standards

IEC 60947-1
IEC 60947-5-4
UL 508
JIS C8201-5-1
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-5-5
JIS C8201-1

Selection Notes

A plain white lens with no legend works as a straightforward status color - choose it when the panel already uses color-coded indication (for example green for running) rather than text. The plastic bezel is the lighter, chemical-resistant alternative to the metal XB4 pilot light head for the same BA9s bulb base; the head itself has no electrical rating, so the supply voltage comes from the light-block body it is mounted on.

Technical Details

Short Description

Harmony XB5 pilot light head, white plain lens, BA9s, plastic, 22 mm.

Mounting Type

22 mm panel cutout

Protection Type

IP66, IP67, IP69, IP69K

Catalog No

ZB5AV01

Delivery Date (Days)

30 days

Model Number

Harmony XB5

Tariff Code

853661
