- Part number
- ZB4BV05
- Model no
- ZB4
Harmony XB4Schneider Electric ZB4BV05 Harmony XB4 Pilot Light Head Metal Orange 22 mm Plain Lens BA9s Pilot Light

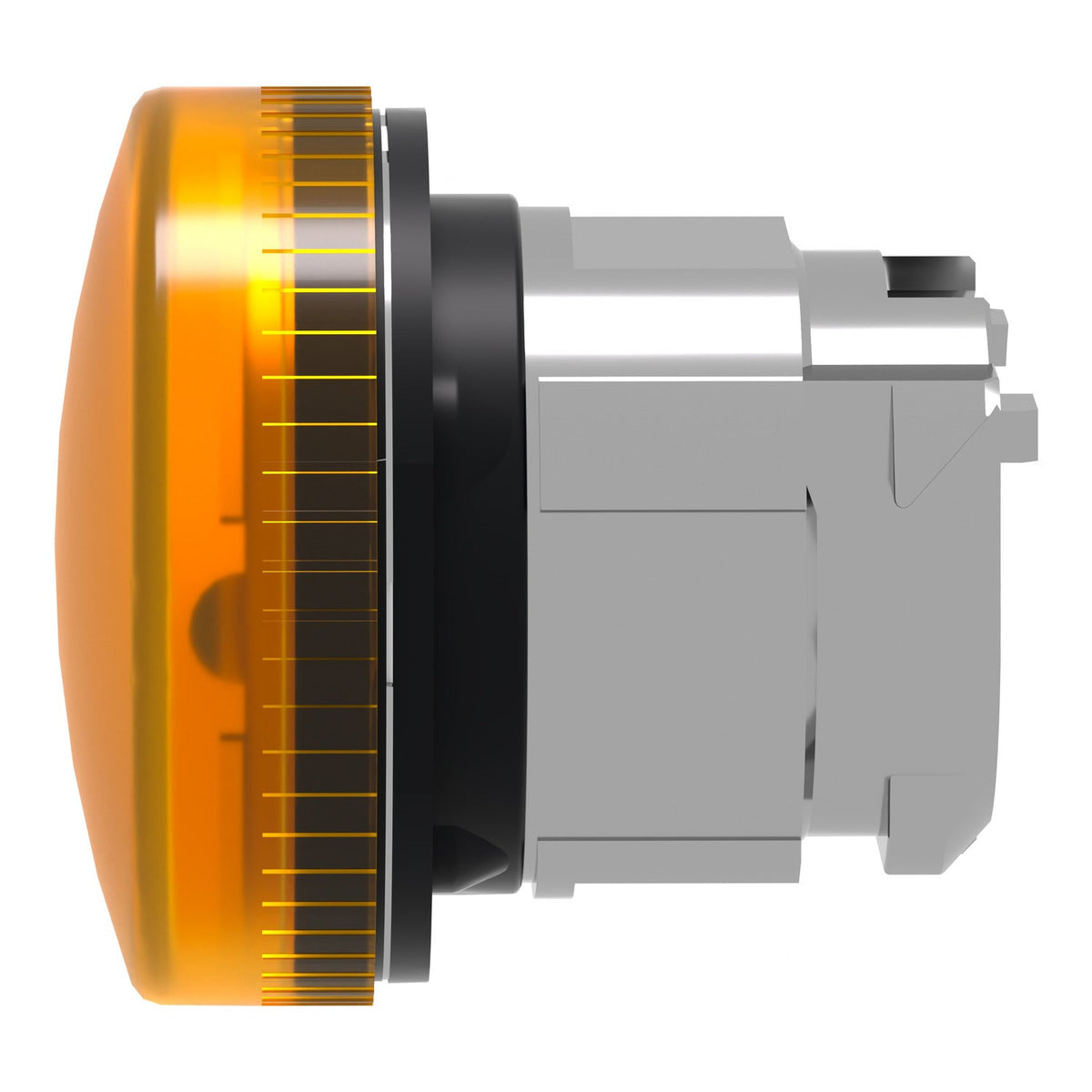

Harmony XB4 pilot light head, orange plain lens, BA9s, metal, 22 mm.
Description
About the ZB4
About the ZB4
The Schneider Electric ZB4BV05 is a Harmony XB4 pilot light head with a orange plain lens and a BA9s bulb base, built in chromium-plated metal for the 22 mm indicator range. The bulb is sold separately, and the head snaps onto a compatible XB4 light-block body to form a complete indicator for a control panel.
Certifications & Standards
- IEC 60947-5-1
- UL 508
- CSA C22.2 No 14
Selection Notes
A plain orange lens reads as a flat, uniform color with no legend, so it suits a status indicator where the lamp color alone communicates the machine state (run, fault, power-on) rather than a labeled function. The BA9s socket takes a direct-mount bulb or an integral-LED insert depending on the light-block body it is paired with, so confirm the supply voltage on the chosen body before specifying - the head itself carries no electrical rating.
Specification
Full specification
Main 11
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for pilot light |
| Product Compatibility | BA 9s |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Orange |
| Operator additional information | With plain lens |
Complementary 7
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.2 in (31 mm) |
| Net Weight | 0.060 lb(US) (0.027 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Electrical composition code | P3 front mounting BA 9s, P4 front mounting BA 9s and transformer |
| Device presentation | Basic element |
Environment 10
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-5-1, UL 508, IEC 60947-1, JIS C8201-1 |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB4BV05 |
|---|---|
| Type designation | ZB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110889529 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.027 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
