Schneider Electric ZB4BV03 Harmony XB4 Pilot Light Head - Green BA9s

Schneider Electric ZB4BV03 Harmony XB4 Pilot Light Head Metal Green 22 mm Plain Lens BA9s Pilot Light

Name: Schneider Electric ZB4BV03 Harmony XB4 Pilot Light Head Metal Green 22 mm Plain Lens BA9s Pilot Light
Brand: Schneider Electric
SKU: ZB4BV03
Price: 3.53 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: ZB4BV03

Catalog No: ZB4BV03

Series: Harmony XB4

Tariff Code (HS): 853661

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$3.53

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

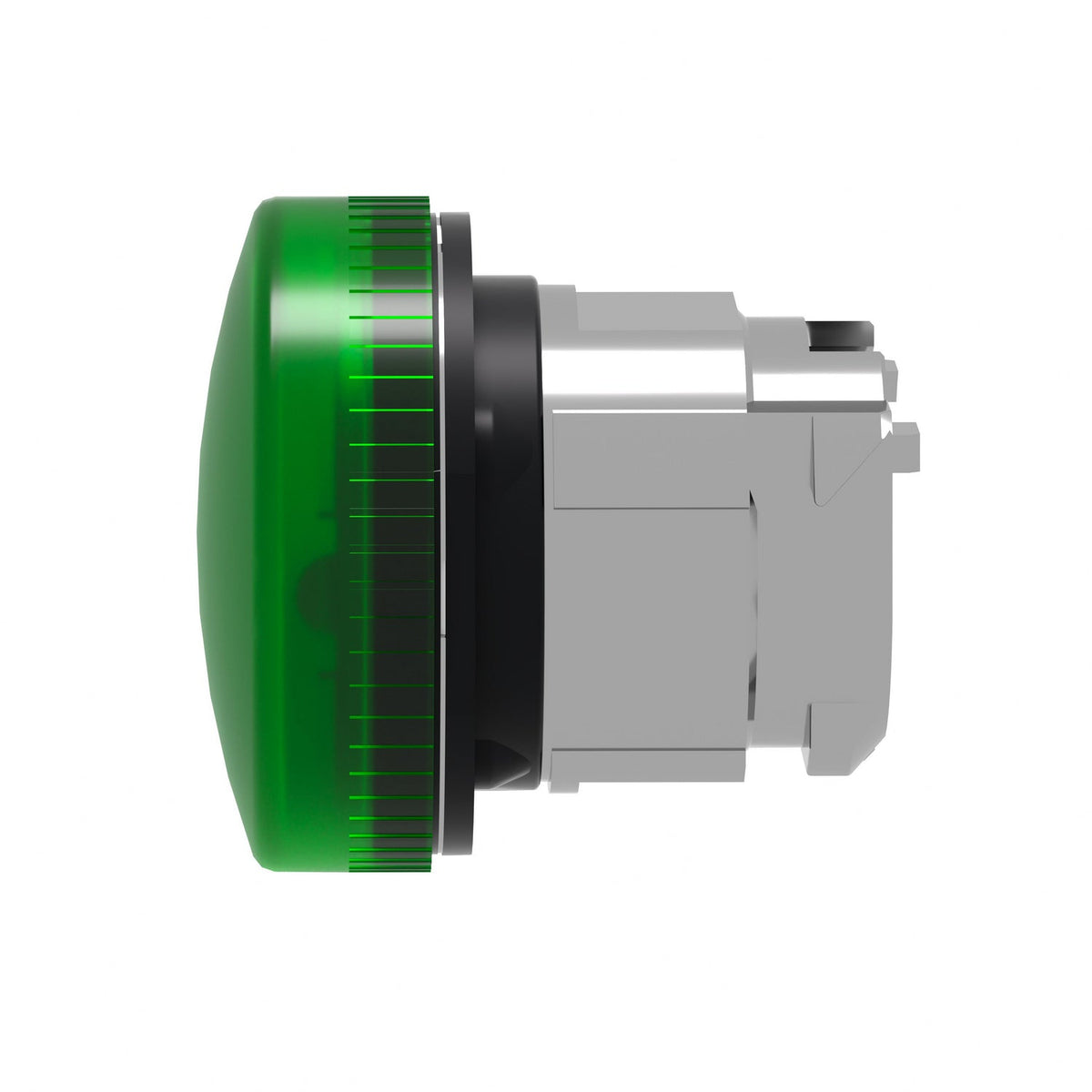

The Schneider Electric ZB4BV03 is a Harmony XB4 pilot light head with a green plain lens and a BA9s bulb base, built in chromium-plated metal for the 22 mm indicator range. The bulb is sold separately, and the head snaps onto a compatible XB4 light-block body to form a complete indicator for a control panel.

Technical Specifications

Reference	ZB4BV03
GTIN	3389110889505
Brand	Schneider Electric
Range	Harmony XB4
Product or Component Type	Head for pilot light
Product Compatibility	BA9s
Device Short Name	ZB4
Bezel Material	Chromium plated metal
Mounting Diameter	22 mm
Head Type	Standard
Shape of Signaling Unit Head	Round
Lens Colour	Green
Operator Additional Information	With plain lens
Overall Dimensions (W x H x D)	29 x 29 x 31 mm
Net Weight	0.027 kg
IP Degree of Protection	IP66, IP67, IP69, IP69K
Enclosure Type	UL Type 4X/13
IK Degree of Protection	IK06 (IEC 50102)
Overvoltage Category	Class I (IEC 60536)
Ambient Air Temperature (Operation)	-40...55 C

Certifications & Standards

IEC 60947-5-1
UL 508
CSA C22.2 No 14

Selection Notes

A plain green lens reads as a flat, uniform color with no legend, so it suits a status indicator where the lamp color alone communicates the machine state (run, fault, power-on) rather than a labeled function. The BA9s socket takes a direct-mount bulb or an integral-LED insert depending on the light-block body it is paired with, so confirm the supply voltage on the chosen body before specifying - the head itself carries no electrical rating.

Technical Details

Short Description

Harmony XB4 pilot light head, green plain lens, BA9s, metal, 22 mm.

Mounting Type

22 mm panel cutout

Protection Type

IP66, IP67, IP69, IP69K

Catalog No

ZB4BV03

Delivery Date (Days)

30 days

Model Number

Harmony XB4

Tariff Code

853661
