Part number
XPER911
Model no
XPER
$218.85 On request Dispatch — · From TürkiyeGet a Quote
Harmony XPE

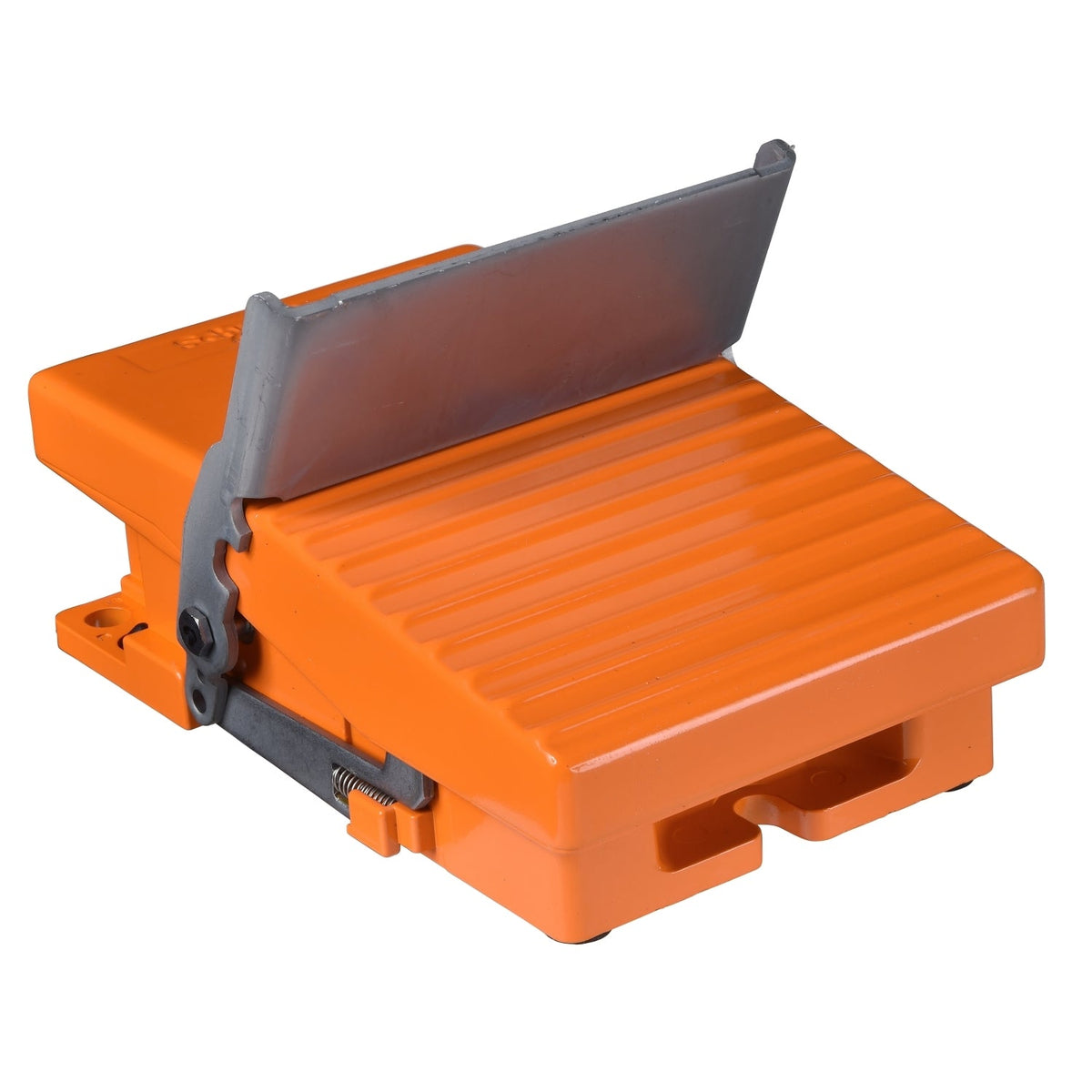

Schneider Electric XPER911 Harmony XPE Single Foot Switch Metal Orange IP66 2NC 2NO Control Station

Schneider Electric XPER911 - Harmony XPE single foot switch, metal, orange, IP66, 2NC+2NO, no cover.

Range of product
Harmony XPE
Product or component type
Foot switch
Material
Metal
Foot switch type
Single foot switch
Device short name
XPER
Trigger mechanism
With trigger mechanism
Description

About the XPER

The Schneider Electric XPER911 is a single foot switch from the Harmony XPE range, built in metal with an orange housing and no protective cover. It carries 2 NC + 2 NO contacts rated 3 A at 240 V AC-15, and reaches IP66 for operation on wet or dusty floor areas. Positive opening conforms to IEC 60947-5-1 Appendix K.

Certifications & Standards

  • FIMKO
  • IEC 60947-5-1
  • VDE 0660-200

Selection Notes

XPER911 is the uncovered, double-contact variant in the Harmony XPE foot switch line: the 2 NC + 2 NO configuration lets a single pedal drive two independent control or interlock circuits without external relay logic, and each pole keeps its own positive-opening contact per IEC 60947-5-1 Appendix K. Choose it over a single-NO/NC foot switch when the application needs simultaneous monitoring on two circuits from one actuation. The metal body and IP66 rating suit wash-down or debris-heavy floor areas; where accidental actuation is more of a risk than contamination, a covered XPE variant is the better fit.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 9

Range of product Harmony XPE
Product or component type Foot switch
Material Metal
Foot switch type Single foot switch
Device short name XPER
Trigger mechanism With trigger mechanism
Contact operation 2 steps
Contacts type and composition 2 NC + NO
Colour Orange

Complementary 11

Positive opening With conforming to IEC 60947-5-1 appendix K
Connections - terminals Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
cable entry 2 entries tapped for Pg 16 cable gland
Mechanical durability 15000000 cycles
[Ie] rated operational current 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Maximum resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200
Rated operational power in W 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Net weight 1.22 kg

Environment 9

Standards IEC 60947-5-1, VDE 0660-200
Product certifications FIMKO
Protective treatment TC
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…70 °C
Vibration resistance 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27
Overvoltage category Class I conforming to IEC 61140, Class I conforming to NF C 20-030
IP degree of protection IP66 conforming to IEC 60529
Show all 59 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XPER911
Type designation XPER
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16.200 cm
Package 1 Width 16.500 cm
Package 1 Length 19.500 cm
Package 1 Weight 1.625 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.709 kg
Unit Type of Package 3 P06
Number of Units in Package 3 24
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 52.508 kg
Shipping weight 1.22 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XPER911

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-5-1
  • VDE 0660-200
Quick answers

Questions about the XPER

What is the HS code of XPER for customs?

The tariff (HS) code on file for XPER is 853650.

Where does XPER ship from, and how fast?

XPER ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
