- Part number
- XPER810
- Model no
- XPER

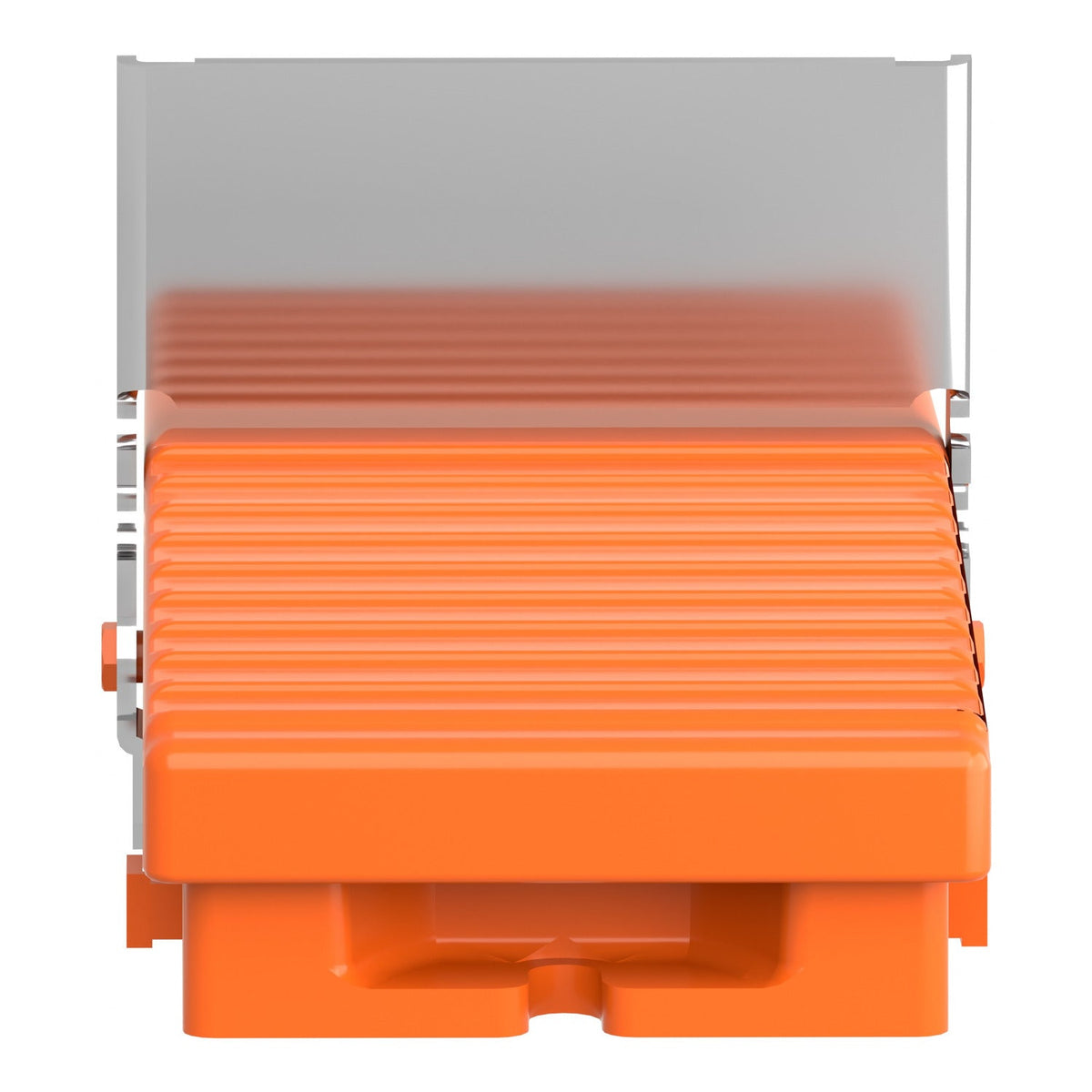

Harmony XPESchneider Electric XPER810 Preventa XPE Foot Switch Metal Orange No Cover Trigger 1NO 1NC Control Station
Preventa XPE single foot switch, metal, orange, without cover, trigger mechanism, 1NO+1NC.
Description
About the XPER
About the XPER
The Schneider Electric XPER810 is a Preventa XPE single foot switch with an orange metal housing and a trigger mechanism requiring positive action to operate the pedal, supplied without a cover, wired 1 NC + 1 NO. Rated IP66, it is built for bending, packaging and dosing machines, cutting and stamping presses, and machine tools.
Certifications & Standards
- IEC 60947-5-1
- VDE 0660-200
- FIMKO
Selection Notes
The trigger mechanism forces a deliberate action before the pedal engages even without a cover, which gives most of the guarding benefit of the XPER510 in a lighter, uncovered body. Where the panel layout benefits from a full cover as well, the XPER510 adds that protection on the same contact output.
Specification
Full specification
Main 9
| Range of product | Harmony XPE |
|---|---|
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Single foot switch |
| Device short name | XPER |
| Trigger mechanism | With trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Orange |
Complementary 11
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 1.2 kg |
Environment 9
| Standards | VDE 0660-200, IEC 60947-5-1 |
|---|---|
| Product certifications | FIMKO |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140, Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Show all 53 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPER810 |
|---|---|
| Type designation | XPER |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 19.800 cm |
| Package 1 Weight | 1.588 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 60.700 kg |
| Shipping weight | 1.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPER810
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- VDE 0660-200
- IEC 60947-5-1
Quick answers
Questions about the XPER
What is the HS code of XPER for customs?
The tariff (HS) code on file for XPER is 853650.
Where does XPER ship from, and how fast?
XPER ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
