- Part number
- XPER711
- Model no
- XPER

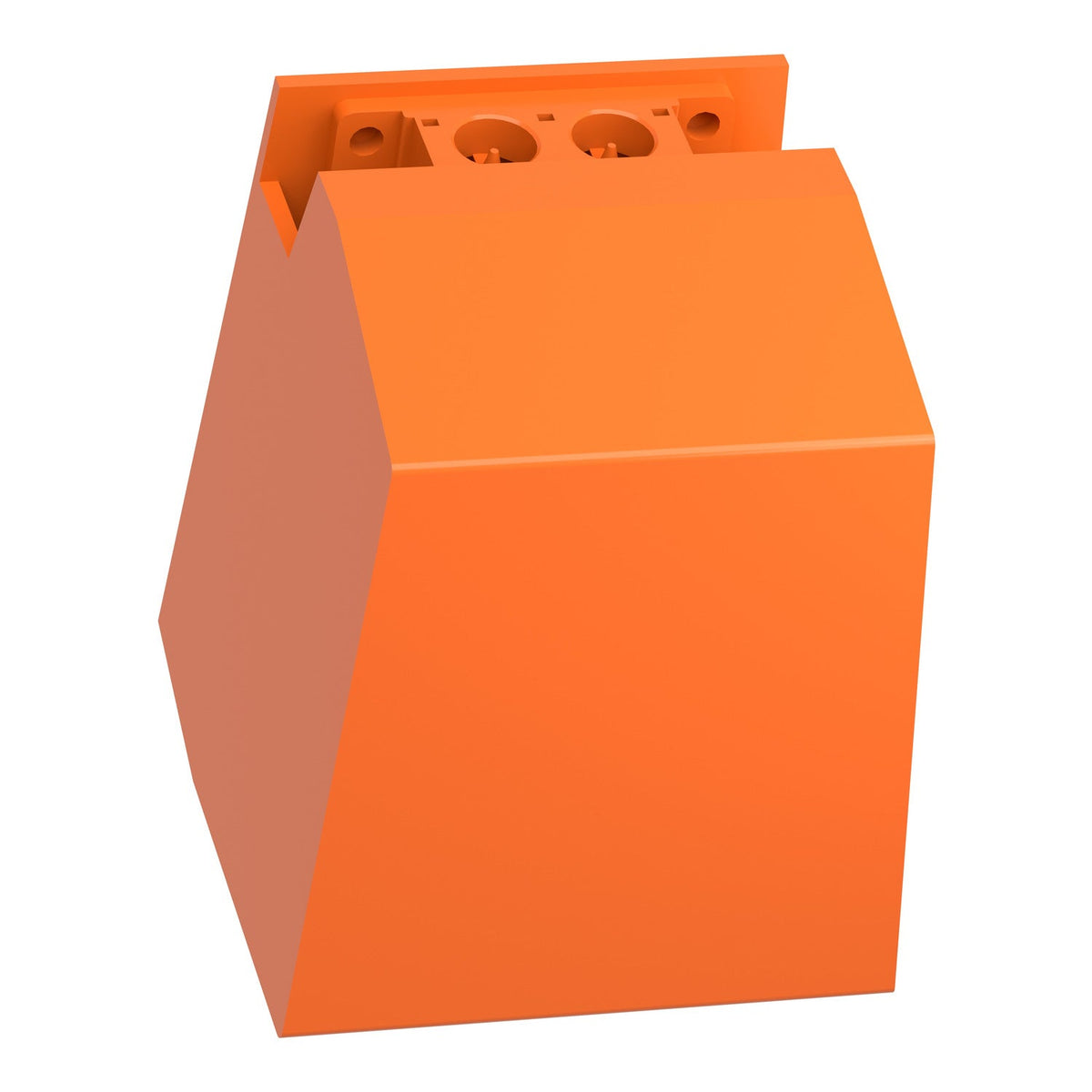

Harmony XPESchneider Electric XPER711 Preventa XPE Single Foot Switch Metal Orange With Cover 2NO 2NC Control Station
Preventa XPE single foot switch, metal, orange, with cover, trigger, 2NO+2NC.
Description
About the XPER
About the XPER
The Schneider Electric XPER711 is a Preventa XPE single foot switch with an orange metal housing, a protective cover, and a trigger mechanism, operating through 2 pedal steps to deliver 2 NC + 2 NO contacts. Rated IP66, it gives two-stage pedal control with dual-circuit contact output for machines needing interlocked start sequences.
Certifications & Standards
- FIMKO
- NF E 09-031
Selection Notes
The 2-step pedal travel with doubled 2NC+2NO contacts lets this foot switch drive a two-stage sequence, such as a slow-approach step followed by a full-stroke command, from one guarded pedal. Where a single-step 1NO+1NC output is sufficient, the XPER510 covers that case with the same cover and trigger mechanism.
Specification
Full specification
Main 10
| Range of product | Harmony XPE |
|---|---|
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Single foot switch |
| Device short name | XPER |
| Provided equipment | Cover |
| Trigger mechanism | With trigger mechanism |
| Contact operation | 2 steps |
| Contacts type and composition | 2 NC + NO |
| Colour | Orange |
Complementary 11
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 2.59 kg |
Environment 9
| Standards | NF E 09-031 |
|---|---|
| Product certifications | FIMKO |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140, Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529, IP66 conforming to IEC 60529 |
Show all 54 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPER711 |
|---|---|
| Type designation | XPER |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.600 cm |
| Package 1 Width | 16.800 cm |
| Package 1 Length | 21.000 cm |
| Package 1 Weight | 2.688 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.840 kg |
| Shipping weight | 2.59 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
