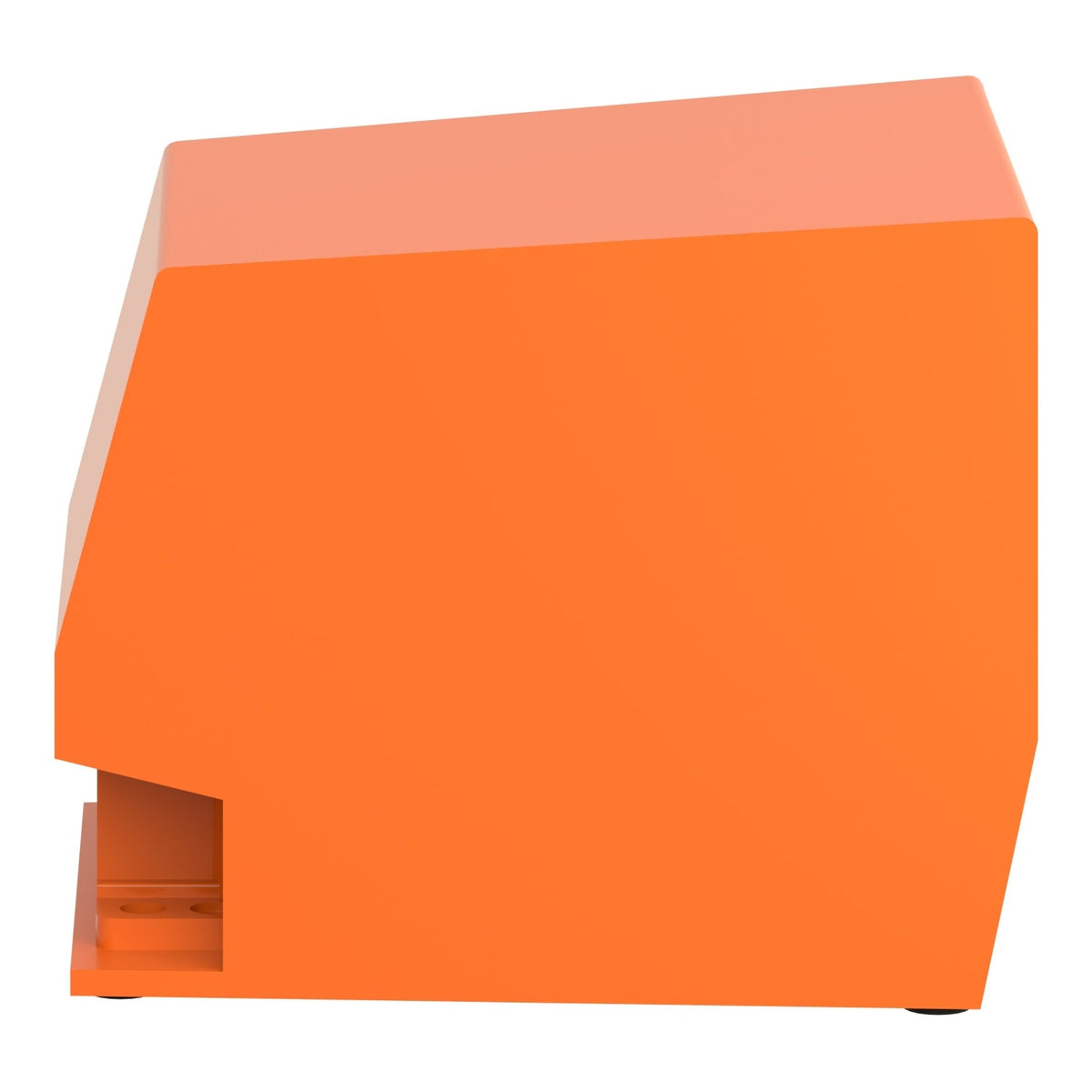

Schneider Electric XPER510 Preventa XPE orange metal foot switch with trigger

Schneider Electric XPER510 Preventa XPE Foot Switch Metal Orange With Cover Trigger 1NO 1NC Control Station

Name: Schneider Electric XPER510 Preventa XPE Foot Switch Metal Orange With Cover Trigger 1NO 1NC Control Station
Brand: Schneider Electric
SKU: XPER510
Price: 192.09 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: XPER510

Catalog No: XPER510

Series: Harmony XPE

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$192.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric XPER510 is a Preventa XPE single foot switch with an orange metal housing, a protective cover, and a trigger mechanism requiring positive action before the pedal engages, wired 1 NC + 1 NO. Rated IP66, it is built for bending machines, stamping presses, cutting presses and machine tools that need guarded pedal control.

Technical Specifications

SKU	XPER510
Brand	Schneider Electric
Range	Harmony XPE
Product type	Foot switch
Material	Metal
Foot switch type	Single foot switch
Colour	Orange
Provided equipment	Cover
Trigger mechanism	With
Contact operation	1 step
Contacts	1 NC + 1 NO
Positive opening	With, per IEC 60947-5-1 appendix K
Terminals	Screw clamp, <= 1 x 2.5 mm² or <= 2 x 1.5 mm²
Cable entry	2 entries tapped for Pg 16 cable gland
[Ie] rated operational current	3 A at 240 V AC-15 \| 0.27 A at 250 V DC-13
[Ui] rated insulation voltage	500 V (pollution degree 3)
[Uimp] rated impulse withstand voltage	6 kV
IP degree of protection	IP66
Ambient temperature, operation	-25...70 °C
Net weight	2.57 kg

Certifications & Standards

FIMKO
NF E 09-031

Selection Notes

The trigger mechanism is the feature that separates this from the XPER310: it forces a deliberate heel or hand action before the cover allows the pedal to move, cutting the risk of an unintended machine cycle. For the same guarded function with 2NC+2NO for two-circuit interlocking, the XPER711 is the step up.

Technical Details

Short Description

Preventa XPE single foot switch, metal, orange, with cover and trigger mechanism, 1NO+1NC.

Mounting Type

Floor-mounted foot pedal

Protection Type

IP66

Catalog No

XPER510

Delivery Date (Days)

30 days

Model Number

XPER

Tariff Code

853650
