Harmony XPESchneider Electric XPEM110 Preventa XPE Single Foot Switch Metal Blue Without Cover 1NO 1NC Control Station
Preventa XPE single foot switch, metal, blue, without cover, 1NO+1NC, IP66.
Description
About the XPEM
About the XPEM

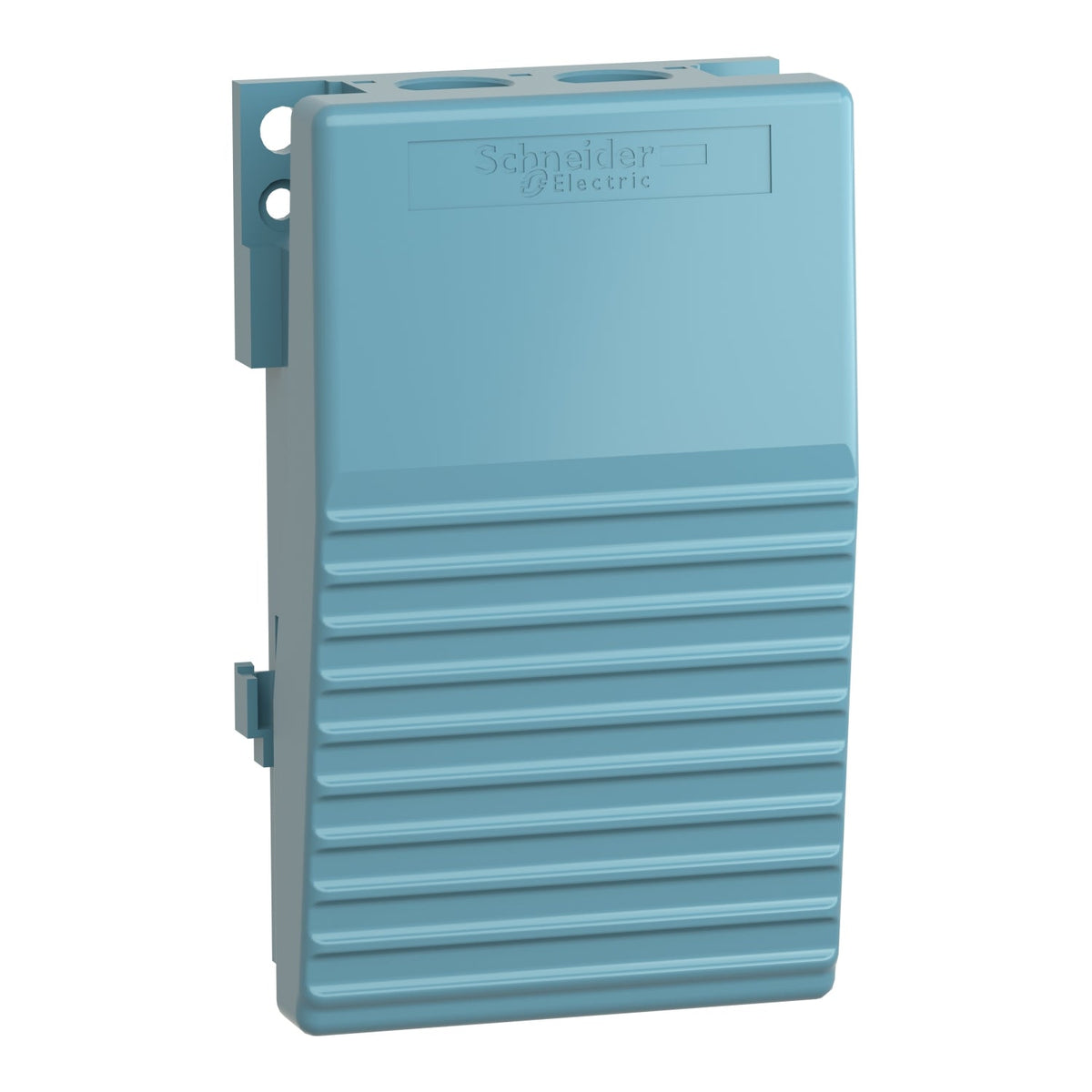

The Schneider Electric XPEM110 is a Preventa XPE single foot switch with a blue metal housing, supplied without a protective cover, operating 1 NC + 1 NO contacts in one pedal step. Rated IP66, it gives a hands-free start/stop command point that tolerates hydraulic oil and grease exposure on industrial machines.
Certifications & Standards
- IEC 60947-5-1
- VDE 0660-200
- FIMKO
- CSA
Selection Notes
The all-metal body and IP66 rating make this the choice for oil- or grease-exposed floor environments where the plastic XPEA110 would not hold up. Without a cover, it suits applications where the risk from accidental stepping is acceptable; the covered XPEM510 adds a trigger mechanism and protective cover for higher-risk locations.
Specification
Full specification
Main 9
| Range of product | Harmony XPE |
|---|---|
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Single foot switch |
| Device short name | XPEM |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Blue |
Complementary 11
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 1.2 kg |
Environment 9
| Standards | VDE 0660-200, IEC 60947-5-1 |
|---|---|
| Product certifications | FIMKO, CSA |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140, Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Show all 59 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPEM110 |
|---|---|
| Type designation | XPEM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.325 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.627 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 102.820 kg |
| Shipping weight | 1.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPEM110
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CSA
- VDE 0660-200
- IEC 60947-5-1
Quick answers
Questions about the XPEM
What is the HS code of XPEM for customs?
The tariff (HS) code on file for XPEM is 853650.
Where does XPEM ship from, and how fast?
XPEM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
