- Part number
- XPEA110
- Model no
- XPEA

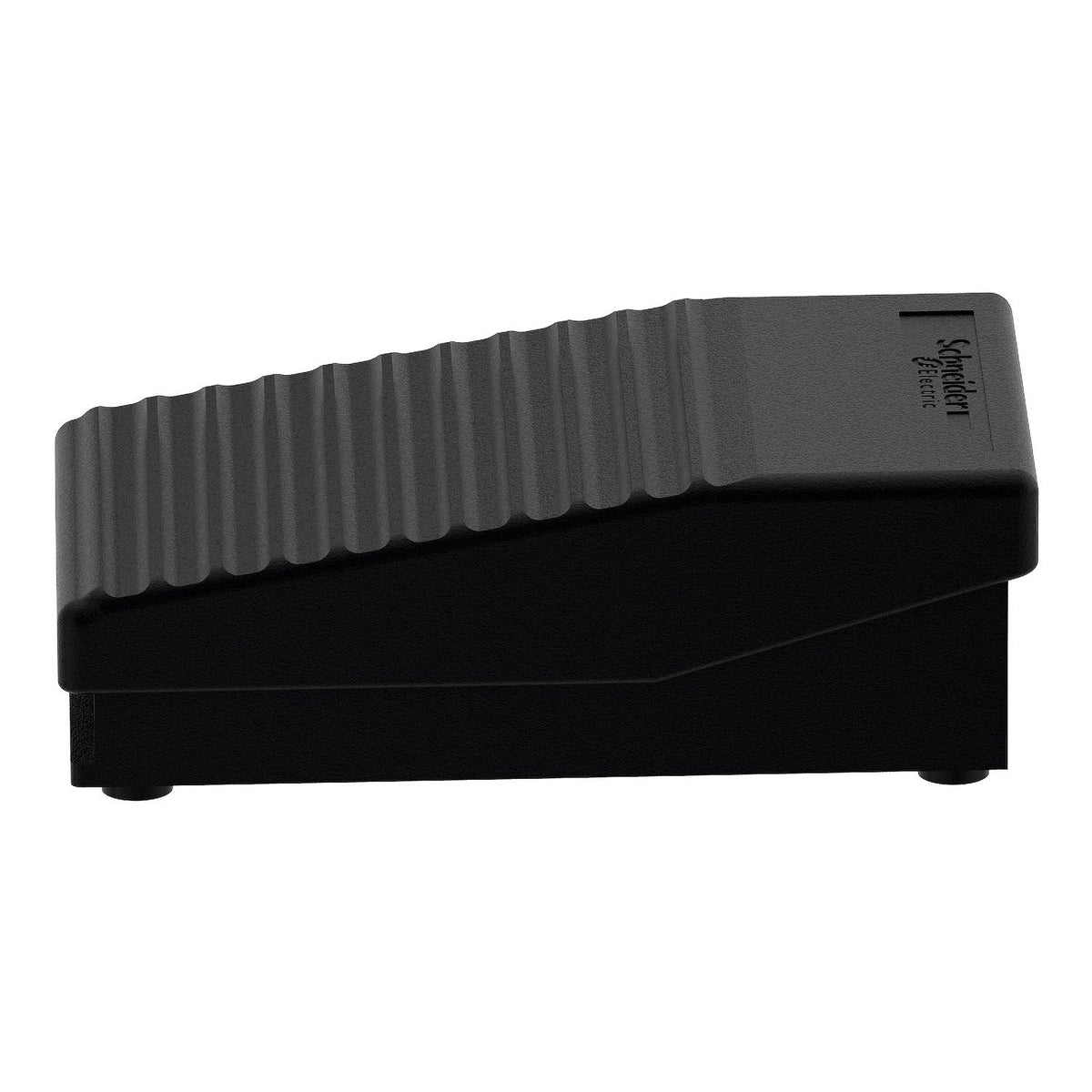

Harmony XPESchneider Electric XPEA110 Preventa XPE Single Foot Switch Plastic Black Without Cover 1NO 1NC Control Station
Preventa XPE single foot switch, plastic, black, without cover, 1NO+1NC, IP43.
Description
About the XPEA
About the XPEA
The Schneider Electric XPEA110 is a Preventa XPE single foot switch with a black plastic housing, supplied without a protective cover, operating 1 NC + 1 NO contacts in one pedal step. Rated IP43, it gives a hands-free start/stop command point for machines and assembly stations where accidental activation risk is low.
Certifications & Standards
- IEC 60947-5-1
Selection Notes
Without a cover, this is the lighter-duty option in the XPE lineup, appropriate where the activation risk from an unintended step is low and the plastic housing's IP43 rating is sufficient for the surroundings. For metal construction and a higher IP66 rating, the XPEM110 provides the same contact layout in a steel-pedal foot switch.
Specification
Full specification
Main 9
| Range of product | Harmony XPE |
|---|---|
| Product or component type | Foot switch |
| Material | Plastic |
| Foot switch type | Single foot switch |
| Device short name | XPEA |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Black |
Complementary 11
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 1 plain hole for M20 cable gland, 1 plain hole for M16 cable gland |
| Mechanical durability | 2000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 0.275 kg |
Environment 8
| Standards | IEC 60947-5-1 |
|---|---|
| Protective treatment | TH |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140, Class II conforming to NF C 20-030 |
| IP degree of protection | IP43 conforming to IEC 60529 |
Show all 58 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XPEA110 |
|---|---|
| Type designation | XPEA |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 18.800 cm |
| Package 1 Weight | 334.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.664 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 38.624 kg |
| Shipping weight | 0.275 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XPEA110
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60947-5-1
Quick answers
Questions about the XPEA
What is the HS code of XPEA for customs?
The tariff (HS) code on file for XPEA is 853650.
Where does XPEA ship from, and how fast?
XPEA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
