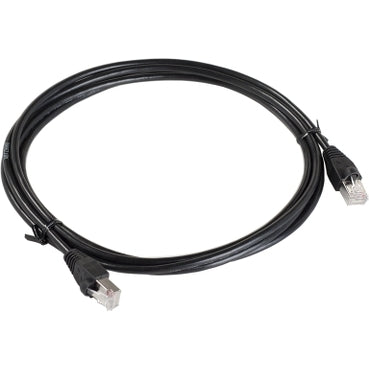

The Schneider Electric XBTZ9980 is a 2.5 m Modbus serial link cable for Harmony XBT and Modicon M221 terminal connections, terminated with 2 male RJ45 connectors on an RS485 physical interface. It links Magelis XBT touch panels, Altivar drives, Altistart soft starters, and TeSys controllers over a common RS485 Modbus link.
The XBTZ9980's RJ45-to-RJ45 Modbus RS485 cable is a fixed 2.5 m length, so panel layouts needing a longer run between the terminal and controller need a longer cable variant or an extension accessory rather than this SKU. Because it carries a straightforward point-to-point Modbus RS485 link, it works the same way across every compatible product family listed (Modicon, Altivar, Altistart, TeSys, Harmony) without protocol conversion.
Connects Harmony XBT touch panels and Magelis terminals to Modicon M340 controllers, Altivar drives, Altistart soft starters, or TeSys controllers over a shared Modbus RS485 link for HMI-to-controller communication.
| Range of Product | Modicon M221, Harmony XBT |
|---|---|
| Accessory / separate part category | Connection accessories |
| Accessory / Separate Part Type | Connecting cable |
| Accessory / separate part designation | Modbus serial link |
| Accessory / separate part destination | Small touch screen panel, XBT terminal |
| Cable length | 8.2 ft (2.5 m) |
| Product Compatibility | XBTN400, XBTGTW..., XBTRT500, XBTRT511, XBTGT1..., XBTR400, XBTN200 |
|---|---|
| Range Compatibility | Preventa XPSMC, Modicon M340, Altivar 31, Altistart 48, Altivar 71, Lexium 05, Altivar 61, TeSys U, Harmony HMI GTO, TeSys T, Harmony STO & STU |
| Electrical connection | 2 male connectors RJ45 |
| Communication Port Protocol | Modbus |
| Physical interface | RS485 |
| Net Weight | 0.51 lb(US) (0.23 kg) |
| Warranty (in months) | 18 |
|---|
| Part number | XBTZ9980 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389118316508 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.23 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for XBTZ9980 is 852859.
The EAN (GTIN) of XBTZ9980 is 3389118316508.
XBTZ9980 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
