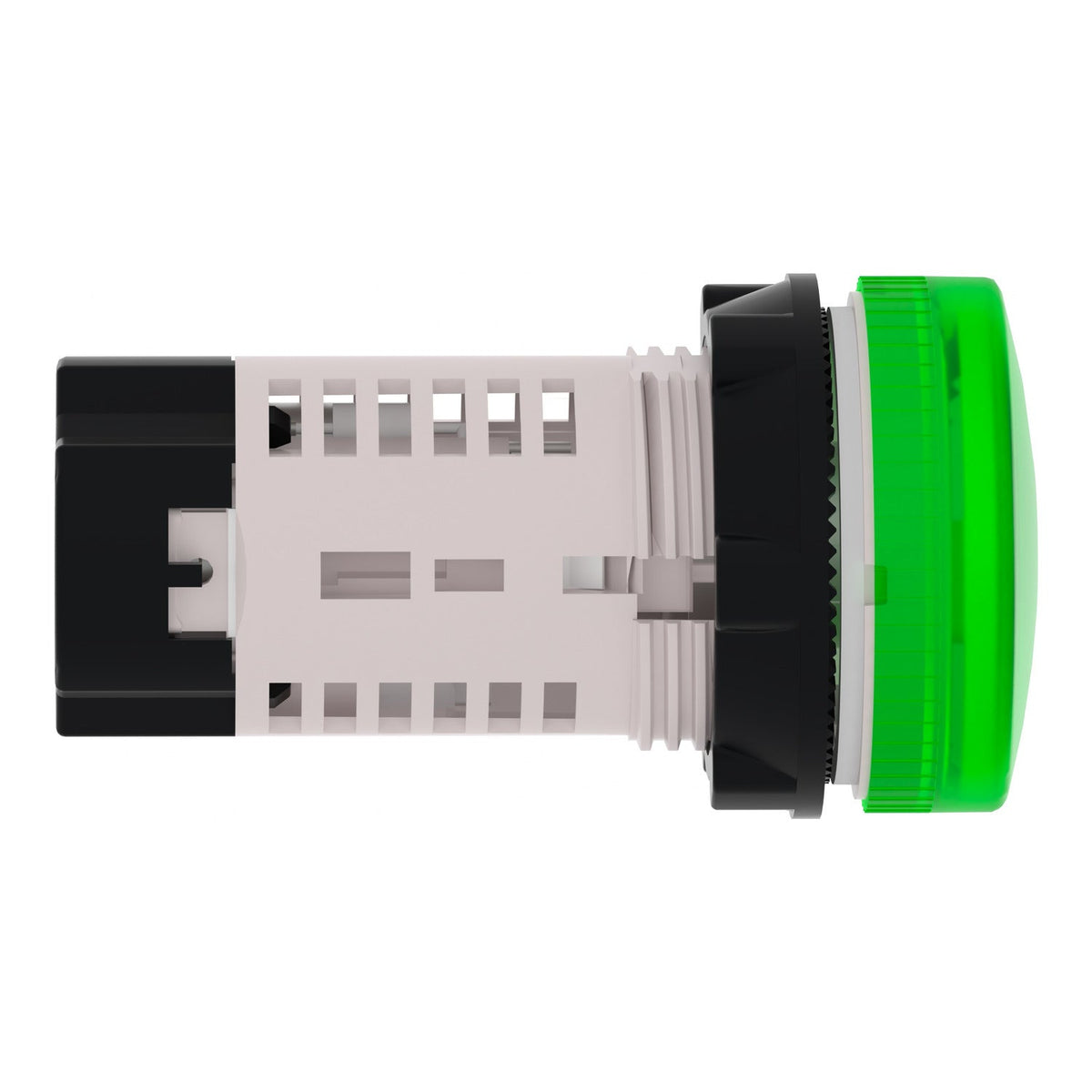

Schneider Electric XB7EV63P Harmony XB7 Monolithic Pilot Light Plastic Green 22 mm Plain Lens BA9s Pilot Light

Harmony XB7 22mm green plain-lens pilot light, BA9s base, up to 250V, bulb not included.

Rated operational voltage
250 V AC
EAN
3389110839586
Description

About the XB7

The Schneider Electric XB7EV63P is a Harmony XB7 monolithic pilot light for 22 mm panel cutouts, supplied as a plain green lens with a BA9s bulb base rated up to 250 V (bulb not included). Screw-clamp, Faston and forked-tag terminal options cover different wiring practices, and the IP54-front plastic bezel suits indoor control panels.

Certifications & Standards

  • IEC 60947-5-1
  • IEC 60947-1
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • UL 508
  • JIS C8201-1

Selection Notes

Because the XB7EV63P ships without a bulb, it suits panels where a BA9s incandescent lamp is already stocked as a spare part, or where the up-to-250 V direct supply rating needs to match line voltage without a dedicated LED driver. The green lens keeps this variant within Harmony's standard colour set, and the flexible Faston, forked-tag or screw-clamp terminals let it retrofit panels wired for older pilot-light styles.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 8

Range of Product Harmony XB7
Product or Component Type Pilot light
Device short name XB7
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 10
Operator additional information With plain lens
Light source Incandescent (bulb not included)
Device presentation Monolithic product

Complementary 21

Height 1.1 in (29 mm)
Width 1.1 in (29 mm)
Depth 2.1 in (54 mm)
Terminals description ISO n°1 (X1-X2)PL
Net Weight 0.040 lb(US) (0.018 kg)
Overvoltage category Class II conforming to IEC 60536
Device mounting Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1
Fixing center >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm)
Fixing mode Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m)
Shape of signaling unit head Round
Cap/operator or lens colour Green
Connections - terminals Faston connectors 6.35 x 0.8 mm IEC 60947-1, Forked type tag connectors 6.5 mm IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
Signalling type Steady
Bulb base BA 9s
Light block supply Direct
[Us] rated supply voltage <= 250 V
Compatibility code XB7

Environment 9

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…131 °F (-25…55 °C)
IP degree of protection IP20 IEC 60529 rear face), IP54 IEC 60529 front face)
Enclosure Type UL type 12
Standards IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, IEC 60947-5-1, JIS C8201-1
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electromagnetic compatibility Disturbing field emission class B conforming to IEC 55011
