Schneider Electric XB7EV06MP Harmony XB7 Monolithic Pilot Light Plastic Blue 22 mm Integral LED Pilot Light

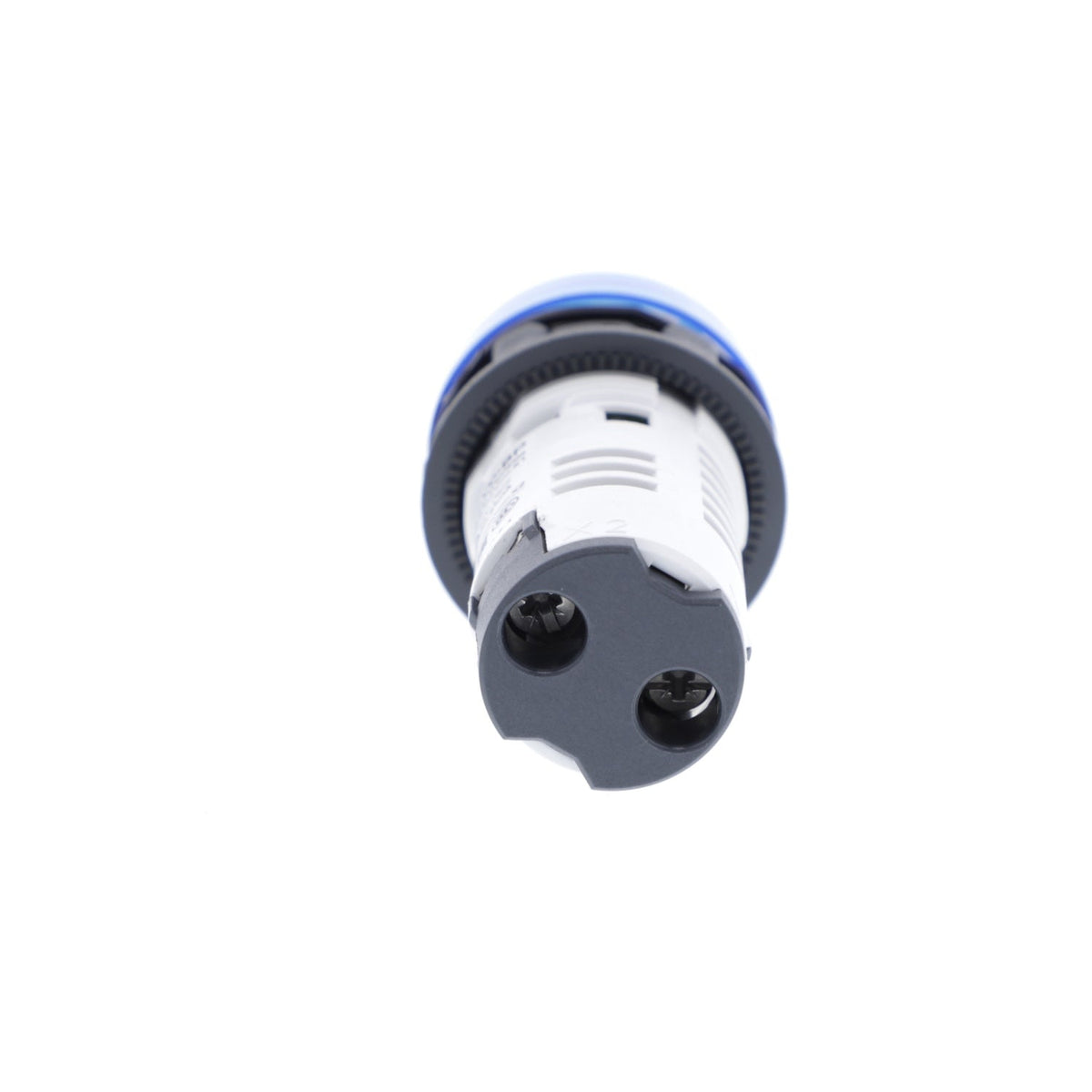

The Schneider Electric XB7EV06MP is a Harmony XB7 monolithic pilot light for 22 mm panel cutouts on machine control panels. Its round blue lens uses an integral LED supplied at 230...240 V AC 50/60 Hz, screw-clamp terminals rated up to 2.5 mm², and an IP65-rated plastic bezel (UL type 4/12) for panels exposed to washdown or dust.

Technical Specifications

Certifications & Standards

• UL 508
• JIS C8201-5-1
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-1
• JIS C8201-1

Selection Notes

The blue lens follows Harmony's standard panel-status colour coding, and the 230-240 V AC version wires directly off the same line voltage feeding the control transformer's primary, skipping a 24 V DC drop, so the XB7EV06MP should be chosen to match whichever supply rail is already run to that panel section. Its monolithic one-piece body mounts in a single 22.5 mm hole, faster to fit than a modular XB4/ZB4 pilot light built from separate head, body and lamp block.
