- Part number
- XB7EV05BP
- Model no
- XB7

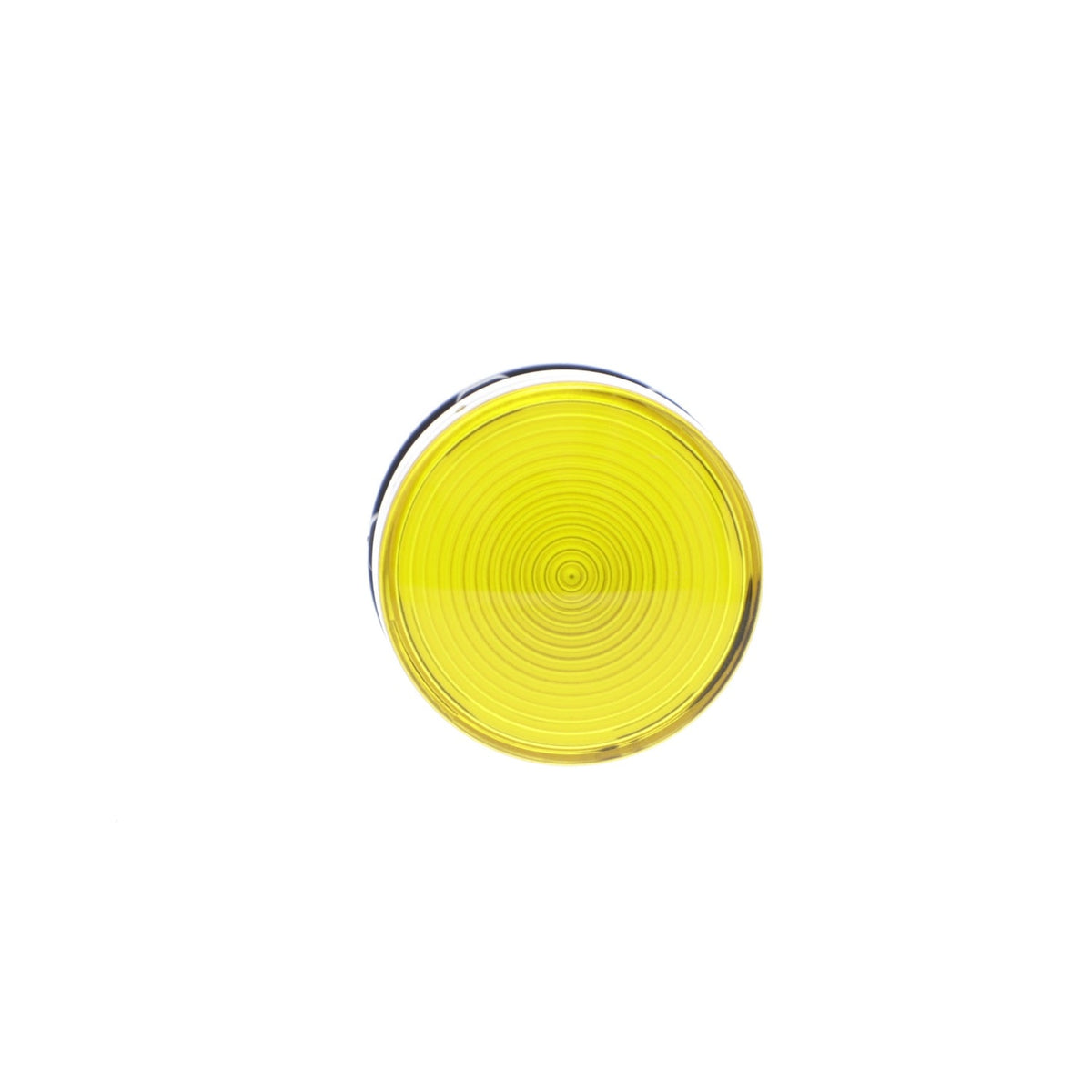

Harmony XB7Schneider Electric XB7EV05BP Harmony XB7 Monolithic Pilot Light Plastic Yellow 22 mm Integral LED Pilot Light
Harmony XB7 22mm yellow monolithic pilot light, integral LED, 24 V AC/DC, IP65.
Description
About the XB7
About the XB7
The Schneider Electric XB7EV05BP is a Harmony XB7 monolithic pilot light for 22 mm panel cutouts on machine control panels. Its round yellow lens uses an integral LED supplied at 24 V AC/DC 50/60 Hz, screw-clamp terminals rated up to 2.5 mm², and an IP65-rated plastic bezel (UL type 4/12) for panels exposed to washdown or dust.
Certifications & Standards
- UL 508
- JIS C8201-5-1
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-1
- JIS C8201-1
Selection Notes
The yellow lens follows Harmony's standard panel-status colour coding, and the 24 V AC/DC version shares the panel's low-voltage control supply with the PLC I/O, so the XB7EV05BP should be chosen to match whichever supply rail is already run to that panel section. Its monolithic one-piece body mounts in a single 22.5 mm hole, faster to fit than a modular XB4/ZB4 pilot light built from separate head, body and lamp block.
Specification
Full specification
Main 11
| Range of Product | Harmony XB7 |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | XB7 |
| Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 10 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Yellow |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Device presentation | Monolithic product |
Complementary 17
| Height | 1.1 in (29 mm) |
|---|---|
| Width | 1.1 in (29 mm) |
| Depth | 2.1 in (54 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.04 lb(US) (0.02 kg) |
| Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm), >= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
| Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross JIS No 1, Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 19.2…30 V DC, 21.6…26.4 V AC |
| Current Consumption | 20...27 mA |
| Service life | 70000 h at rated voltage and 25 °C |
Environment 10
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP20 IEC 60529 rear face), IP65 IEC 60529 front face) |
| Enclosure Type | UL type 4/12 |
| Standards | IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, JIS C8201-1 |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Show all 52 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB7EV05BP |
|---|---|
| Type designation | XB7 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110839746 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XB7EV05BP
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60947-1
- UL 508
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-5-1
- JIS C8201-1
Quick answers
Questions about the XB7
Which supply voltage is XB7 rated for?
The rated operational voltage of XB7 is 24–DC V DC.
What is the HS code of XB7 for customs?
The tariff (HS) code on file for XB7 is 853661.
What is the EAN of XB7?
The EAN (GTIN) of XB7 is 3389110839746.
Where does XB7 ship from, and how fast?
XB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
