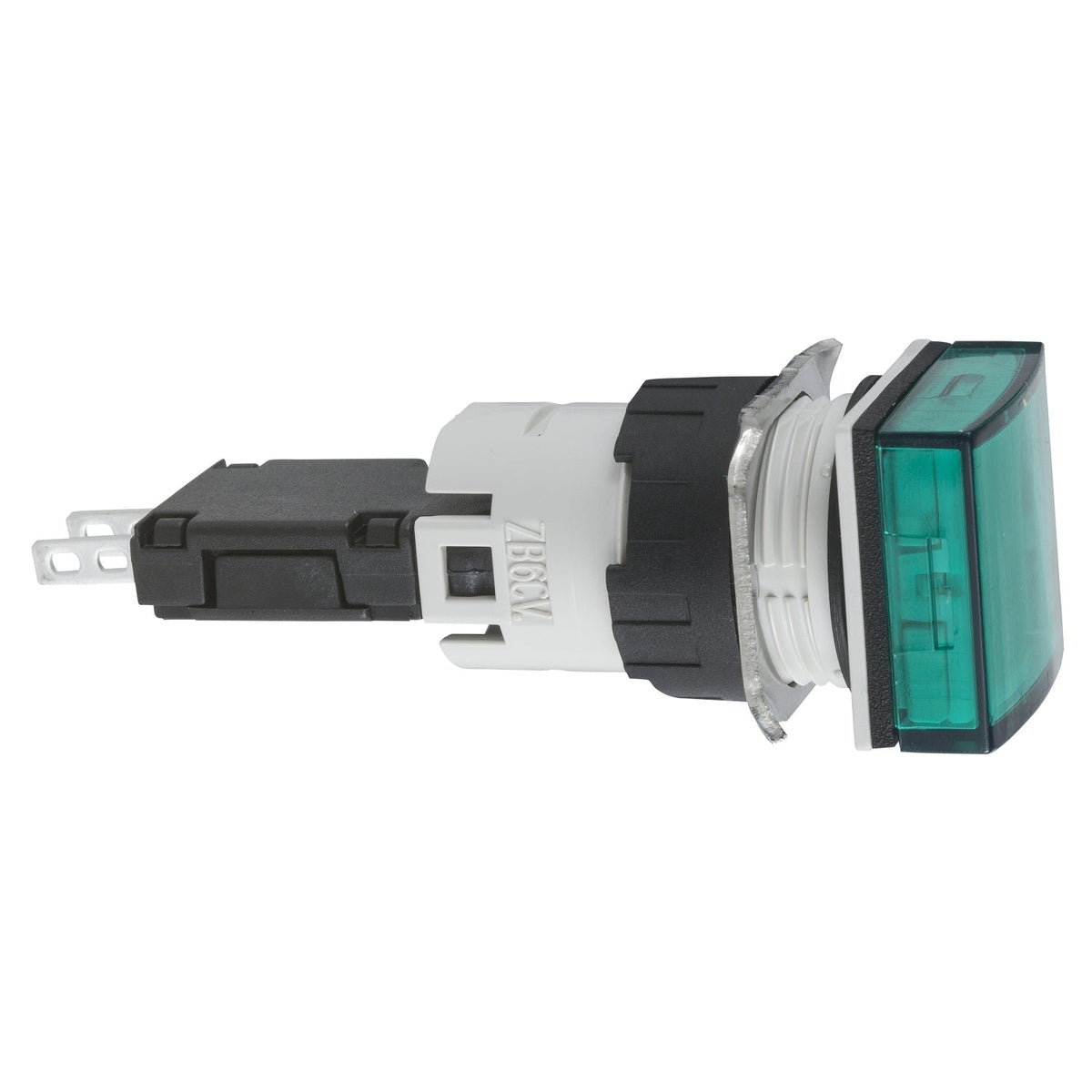

Schneider Electric XB6CV3BB Harmony XB6 Complete Square Green 16 mm Integral LED 12-24 V Pilot Light

% $-18.51
Schneider Electric XB6CV3BB Harmony XB6 square green pilot light 16 mm Pilot Light
Schneider Electric XB6CV3BB Harmony XB6 square green pilot light 16 mm Pilot Light

Schneider Electric XB6CV3BB Harmony XB6 Complete Square Green 16 mm Integral LED 12-24 V Pilot Light

Brand: Schneider Electric
Reference No: XB6CV3BB
Catalog No: XB6CV3BB
Series: Harmony XB6
Tariff Code (HS): 853661
Rated Voltage: 12-24 V AC/DC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$18.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB6CV3BB is a Harmony XB6 complete pilot light with a square green 16 mm plastic lens and an integral LED, supplied at 12...24 V AC/DC with a steady signal. The square head distinguishes it visually from the round XB6AV3BB on the same panel, mounting into the same 16 mm cut-out.

Technical Specifications

Reference XB6CV3BB
Brand Schneider Electric
Range of Product Harmony XB6
GTIN 3389110764475
Product or Component Type Complete pilot light
Bezel Material Plastic
Mounting Diameter 16 mm
Shape of Head Square
Lens Colour Green
Light Source Integral LED
Light Block Supply Direct
Signalling Type Steady
[Us] Rated Supply Voltage 12...24 V AC/DC (limits 6...30 V)
Current Consumption 15 mA
[Ui] Rated Insulation Voltage 250 V
Connections Faston connectors, 2.8 x 0.5 mm
IP Degree of Protection IP65
Ambient Air Temperature (Operation) -25...70 degC
Net Weight 0.015 kg

Certifications & Standards

  • CCC
  • UL
  • GOST
  • CSA
  • IEC 60947-5-1
  • IEC 60947-5-5
  • UL 508
  • JIS C 852
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • JIS C8201-1

Selection Notes

The square head is a shape-coded alternative to the round XB6AV3BB for the same electrical function, letting a panel builder distinguish indicator groups by silhouette as well as colour. Green follows IEC 60073 colour-coding for a normal-running or ready status. At 12...24 V AC/DC with 15 mA draw, the integral LED runs directly off the same low-voltage control supply as a PLC output.

Technical Details

Short Description
Schneider Electric XB6CV3BB Harmony XB6 square green pilot light, 16 mm, integral LED, 12-24 V AC/DC, IP65.
Rated Voltage (VAC)
12-24 V AC/DC
Mounting Type
Panel mount, 16 mm cutout
Protection Type
IP65
Catalog No
XB6CV3BB
Delivery Date (Days)
30 days
Model Number
XB6
Tariff Code
853661
