Harmony XB5

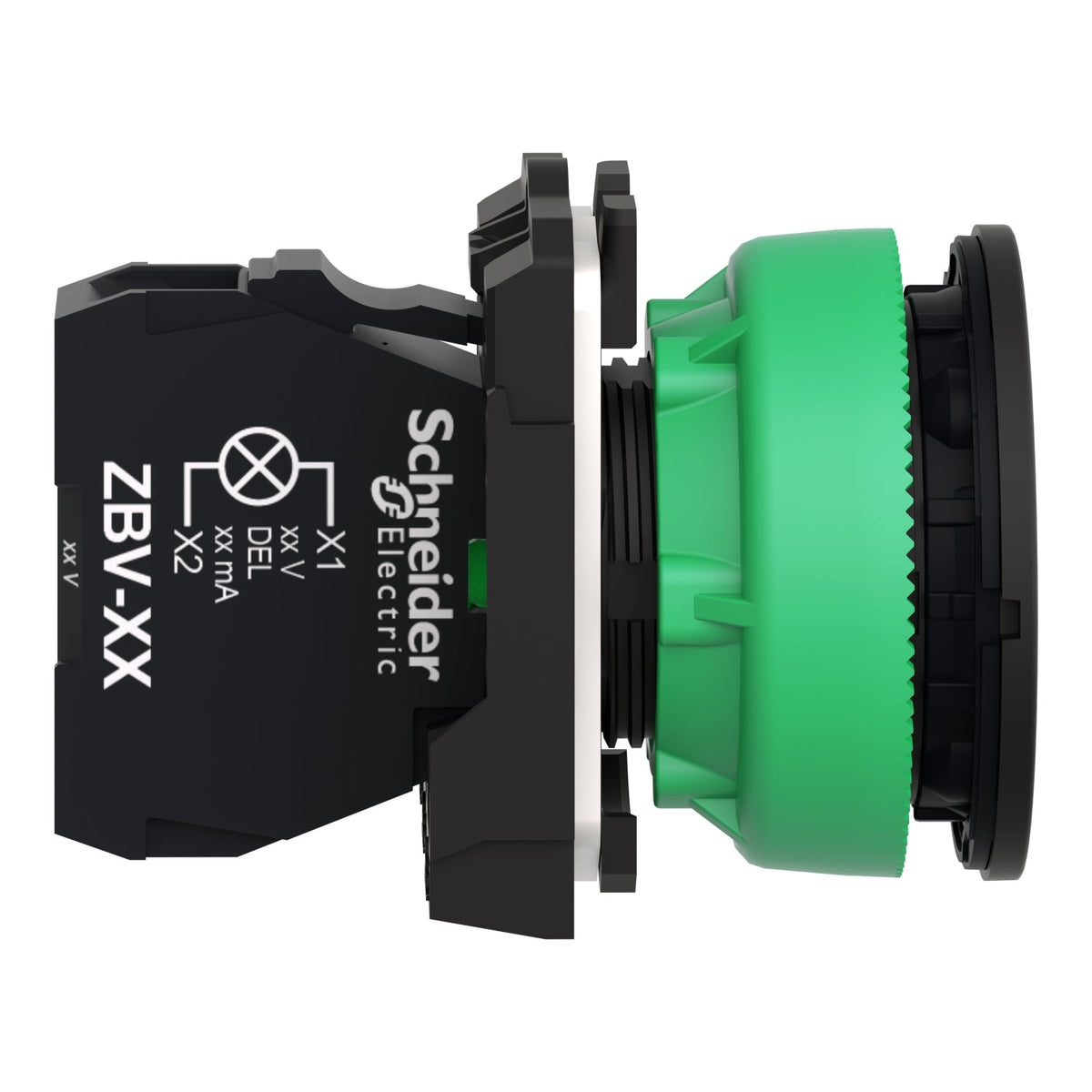

Schneider Electric XB5FVB3 Harmony XB5 Pilot Light Green 30 mm 24V DC/AC Universal LED Pilot Light

Schneider Electric XB5FVB3, Harmony XB5 green pilot light, universal LED, 24 V AC/DC.

Rated operational voltage
24–DC V DC
EAN
3606481360861
Description

About the XB5F

The Schneider Electric XB5FVB3 is a green pilot light from the Harmony XB5 range, flush-mounted in a 30.5 mm panel cutout with a plain lens and an integral universal LED rated for 24 V AC/DC supply. Steady signalling, screw-clamp terminals and IP66/IP67/IP69/IP69K sealing make it suitable for washdown and dusty environments.

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • UL 508
  • JIS C8201-5-1
  • IEC 60947-5-1
  • ISO 21702
  • ISO 22196:2011

Selection Notes

At 18 mA (24 V) / 14 mA (230 V), the XB5FVB3 draws little enough current to run off the same control circuit as the contact it is monitoring, without a dedicated supply. Pick the 24 V AC/DC variant to match the control transformer already in the cabinet — the green lens is a status colour choice only and does not change the electrical rating against the other colours in this series.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 16

Range of Product Harmony XB5
Product or Component Type Pilot light
Device short name XB5F
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Built-in-flush
Mounting diameter 1.2 in (30.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/operator or lens colour Green
Operator additional information With plain lens
Light source Universal LED
Bulb base Integral LED
Light source colour Green
[Us] rated supply voltage 24 V AC/DC 50/60 Hz
Device presentation Complete product

Complementary 16

Height 1.7 in (42 mm)
Width 1.4 in (36.6 mm)
Depth 2.2 in (55 mm)
Terminals description ISO n°1 (X1-X2)PL
Net Weight 0.084 lb(US) (0.038 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
Signalling type Steady
GCR BRIDGE XB5FVCUST01
Compatibility code XB5
Supply voltage limits 19.2…30 V DC, 21.6…26.4 V AC
Current Consumption 18 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5

Environment 16

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
Enclosure Type UL type 4X/13
IK degree of protection IK03 conforming to IEC 50102
Standards JIS C8201-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Product Certifications UL Listed, CSA
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Electromagnetic compatibility Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electromagnetic emission class B conforming to IEC 55011
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5FVB3
Type designation XB5F
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481360861

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.038 kg
Ships from Türkiye
Dispatch —
Stock On request
