Part number
XB5AVM6
Model no
XB5
$9.61 On request Dispatch — · From TürkiyeGet a Quote
Harmony XB5

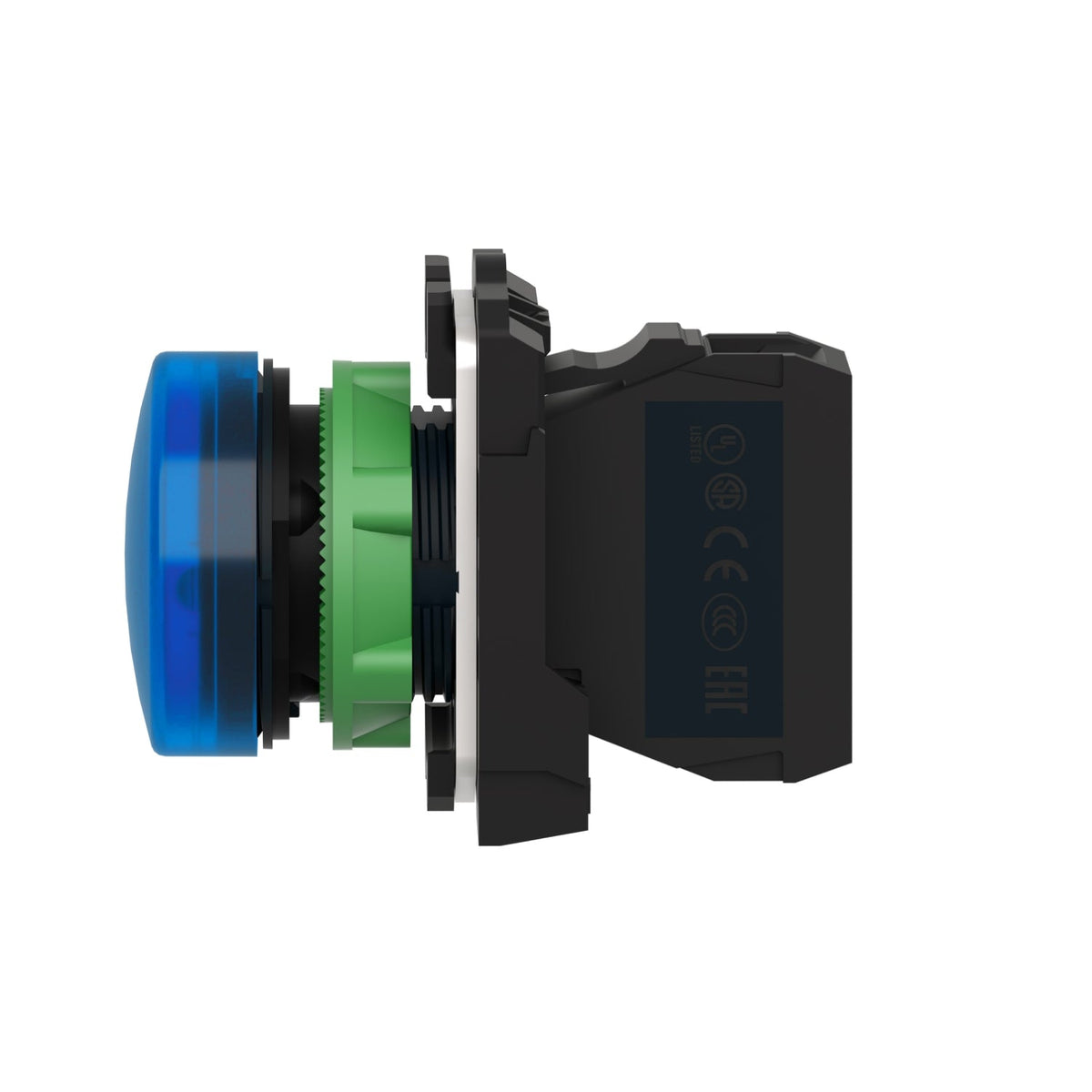

Schneider Electric XB5AVM6 Harmony XB5 Pilot Light Plastic Blue 22 mm LED 230-240 V AC Pilot Light

Harmony XB5 pilot light, blue plain lens, integral LED, 230-240 V AC, 22 mm.

Rated operational voltage
230–240 V AC
EAN
3389110136937
Description

About the XB5

The Schneider Electric XB5AVM6 is a Harmony XB5 pilot light for 22 mm panel cut-outs with a blue plain lens over an integral, non-replaceable LED. It runs directly on 230...240 V AC (195-264 V limits) through screw-clamp terminals and is rated IP66/IP67/IP69/IP69K for washdown duty, with a 100,000-hour LED service life at rated voltage and 25 degrees C.

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-1
  • IEC 60947-5-1
  • CSA C22.2 No 14

Selection Notes

Pick the blue lens when panel colour-coding calls for a mandatory-action or reset indication; every lens colour in the XB5 AVM series shares the same 230...240 V AC rating and integral-LED construction. Choose XB5AVM6 over the 24 V AVB variants when the pilot light is wired straight off the 230 V control supply without a separate low-voltage source.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 16

Range of Product Harmony XB5
Product or Component Type Pilot light
Device short name XB5
Bezel material Dark grey plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/operator or lens colour Blue
Operator additional information With plain lens
Light source Universal LED
Bulb base Integral LED
Light source colour Blue
[Us] rated supply voltage 230...240 V AC 50/60 Hz
Device presentation Complete product

Complementary 16

Height 1.7 in (42 mm)
Width 1.2 in (30 mm)
Depth 2.1 in (54 mm)
Terminals description ISO n°1 (X1-X2)PL
Net Weight 0.084 lb(US) (0.038 kg)
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
Signalling type Steady
GCR BRIDGE XB5AVCUST05
Compatibility code XB5
Supply voltage limits 195…264 V AC
Current Consumption 14 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5

Environment 16

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653
Enclosure Type UL type 4X/13
IK degree of protection IK05 conforming to IEC 50102
Standards JIS C8201-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
Product Certifications UL Listed, CSA
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Electromagnetic compatibility Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electromagnetic emission class B conforming to IEC 55011
Resistance to electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
Show all 62 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XB5AVM6
Type designation XB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110136937

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin FR
Shipping weight 0.038 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XB5AVM6

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • JIS C8201-5-1
  • CSA C22.2 No 14
  • UL 508
  • IEC 60947-1
  • IEC 60947-5-4
  • IEC 60947-5-1
  • JIS C8201-1
Quick answers

Questions about the XB5

Which supply voltage is XB5 rated for?

The rated operational voltage of XB5 is 230–240 V AC.

What is the HS code of XB5 for customs?

The tariff (HS) code on file for XB5 is 853661.

What is the EAN of XB5?

The EAN (GTIN) of XB5 is 3389110136937.

Where does XB5 ship from, and how fast?

XB5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
