- Part number
- XB5AV64
- Model no
- XB5
Description
About the XB5
About the XB5

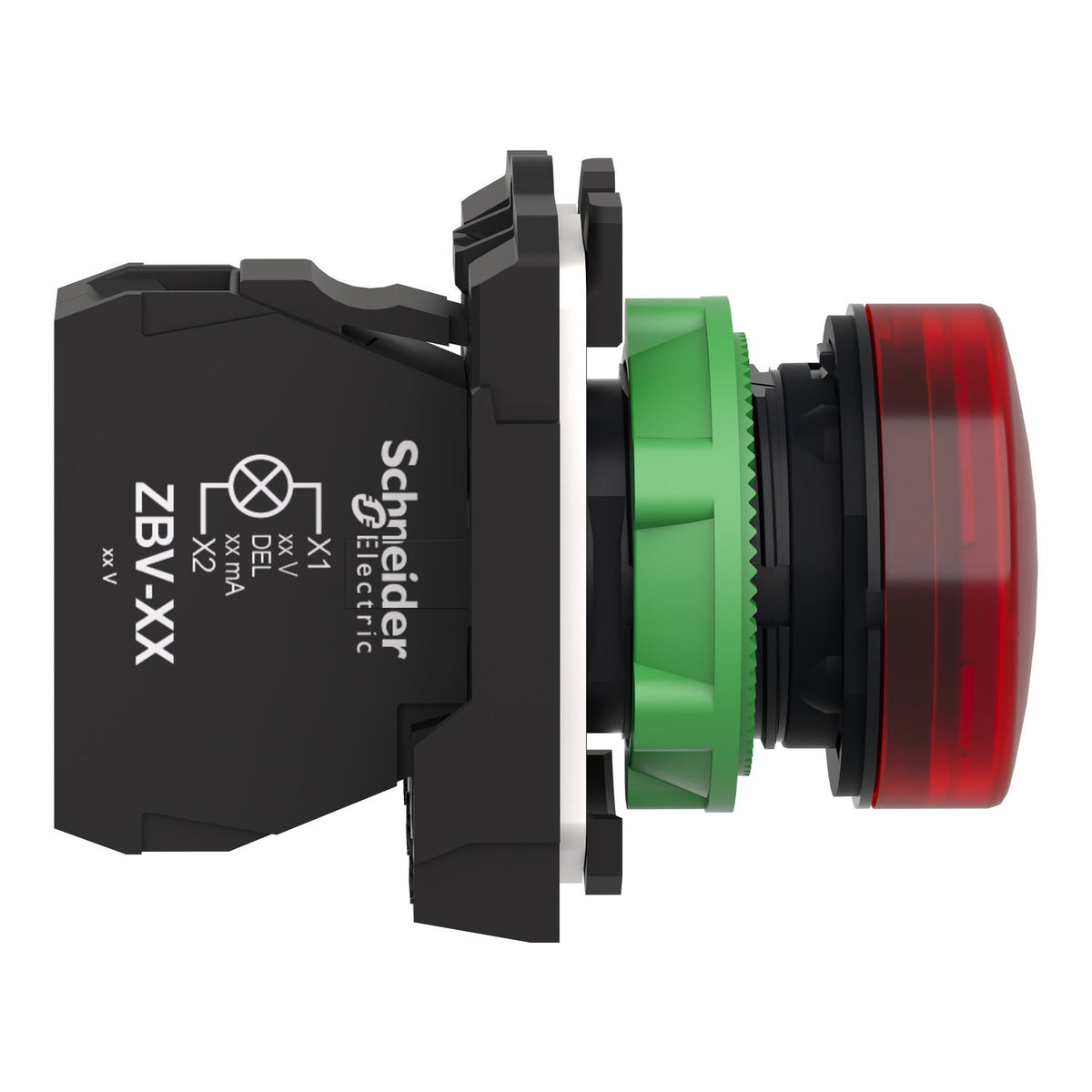

The Schneider Electric XB5AV64 is a Harmony XB5 pilot light for 22 mm panel cut-outs, fitted with a red plain lens over a BA9s bulb socket (bulb not supplied). Rated for AC supply up to 250 V through screw-clamp terminals, it carries IP66/IP67/IP69/IP69K sealing for washdown areas and mounts on a plastic bezel and fixing collar for chemical-resistant panel environments.
Certifications & Standards
- UL Listed
- CSA
- IEC 60947-1
- IEC 60947-5-1
- CSA C22.2 No 14
Selection Notes
Pick the red lens when panel colour-coding calls for a stop or fault indication; the other lens colours in the same XB5 AV6 series share the identical BA9s socket and 250 V rating, so the choice is purely about the signal colour on the panel. Because the bulb is not integral, XB5AV64 suits sites that already stock replaceable BA9s lamps rather than a sealed LED unit.
Specification
Full specification
Main 16
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Pilot light |
| Device short name | XB5 |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| Light source colour | Red |
| [Us] rated supply voltage | <= 250 V |
Complementary 11
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.2 in (30 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.082 lb(US) (0.037 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Complete product |
Environment 12
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653 |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-1, UL 508, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1 |
| Product Certifications | CSA, UL Listed |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 53 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XB5AV64 |
|---|---|
| Type designation | XB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110903980 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.037 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
