Schneider Electric XB4FVM6 Harmony XB4 Blue 30 mm Plain Lens Universal LED 230-240V AC Pilot Light

% $-23.68

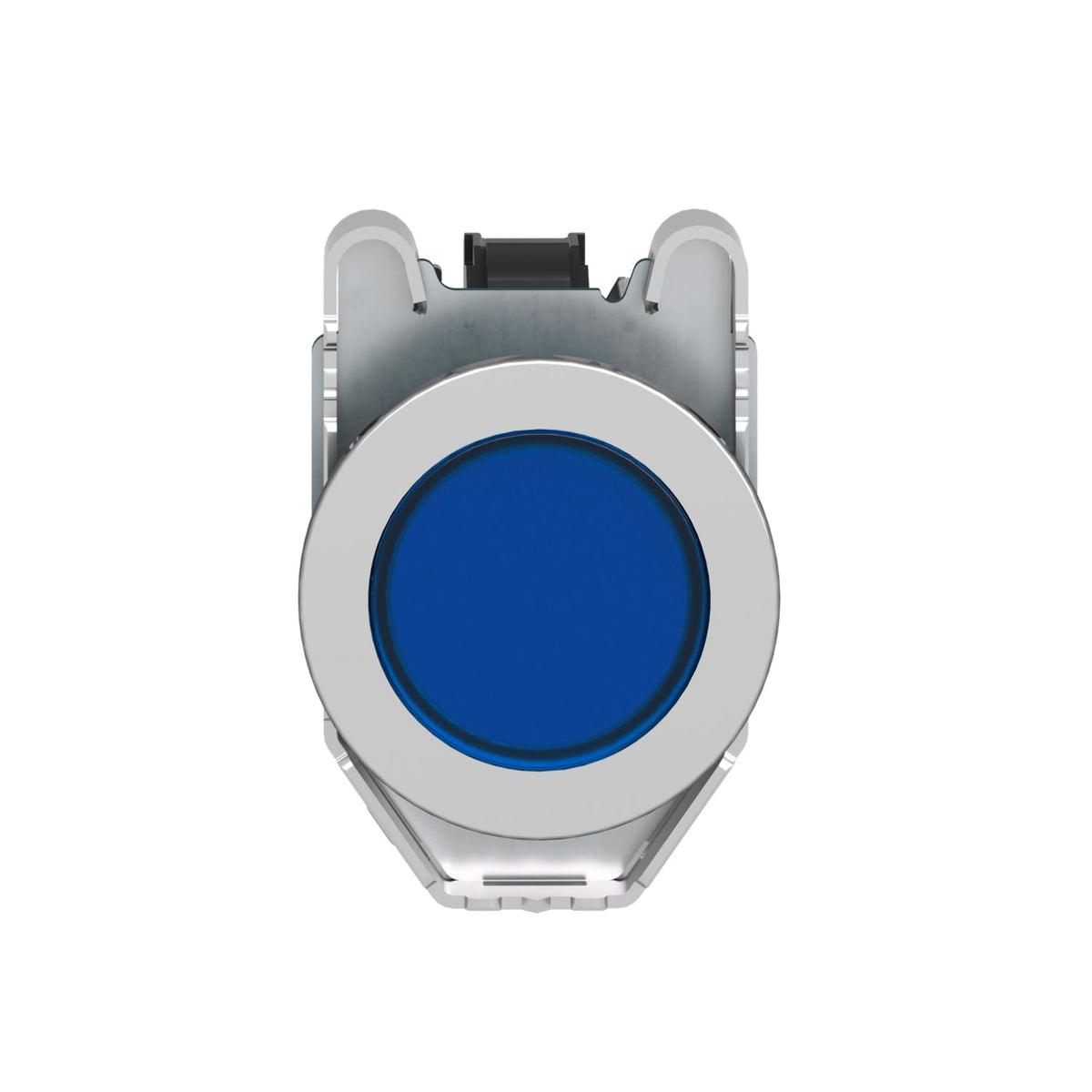

Schneider Electric XB4FVM6 Harmony XB4 Blue Pilot Light - 230-240V AC
Schneider Electric XB4FVM6 Harmony XB4 Blue Pilot Light - 230-240V AC

Schneider Electric XB4FVM6 Harmony XB4 Blue 30 mm Plain Lens Universal LED 230-240V AC Pilot Light

Brand: Schneider Electric
Reference No: XB4FVM6
Catalog No: XB4FVM6
Series: Harmony XB4
Tariff Code (HS): 853661
Rated Voltage: 230-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$23.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric XB4FVM6 is a Harmony XB4 flush-mounted pilot light, 30.5 mm mounting diameter, with a blue plain lens and an integral universal LED. It is supplied for a 230-240 V AC lamp circuit, drawing 14 mA, and signals steadily for panel-front status indication rated up to IP69K.

Technical Specifications

Reference XB4FVM6
GTIN 3606489580629
Brand Schneider Electric
Range of Product Harmony XB4
Product Type Pilot light
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Cap/Operator or Lens Colour Blue
Operator Additional Information With plain lens
Light Source Universal LED
Bulb Base Integral LED
[Us] Rated Supply Voltage 230-240 V AC 50/60 Hz
Supply Voltage Limits 195-264 V AC
Current Consumption 14 mA
Height 36.6 mm
Width 36.6 mm
Depth 53.6 mm
Device Mounting Fixing hole 30.75 mm ± 0.25 mm
Fixing Mode By screw
Connections - Terminals Screw clamp, ≤2 x 1.5 mm² with cable end or 1 x 0.22...2 x 2.5 mm² without cable end (IEC 60947-1)
Signalling Type Steady
Service Life 100,000 h at rated voltage, 25 °C
Surge Withstand 1 kV (IEC 61000-4-5)
[Ui] Rated Insulation Voltage 600 V (IEC 60947-1)
IP Degree of Protection IP66, IP67, IP69, IP69K, Type 12, Type 13, Type 4, Type 4X
IK Degree of Protection IK06
Net Weight 0.112 kg

Certifications & Standards

  • CE
  • UL Listed
  • CSA
  • CCC
  • EAC
  • IEC 60947-5-1

Selection Notes

Match the 230-240 V AC lamp voltage to the control-circuit supply before wiring; the blue lens is the only difference from the other colour options in this 24 mA-class pilot-light range, so swapping colours does not change the mounting or wiring.

Technical Details

Short Description
Harmony XB4 pilot light, 30 mm, blue, 230-240V AC.
Rated Voltage (VAC)
230-240 V AC
Mounting Type
Panel flush-mount, 30.5 mm cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
XB4FVM6
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853661
